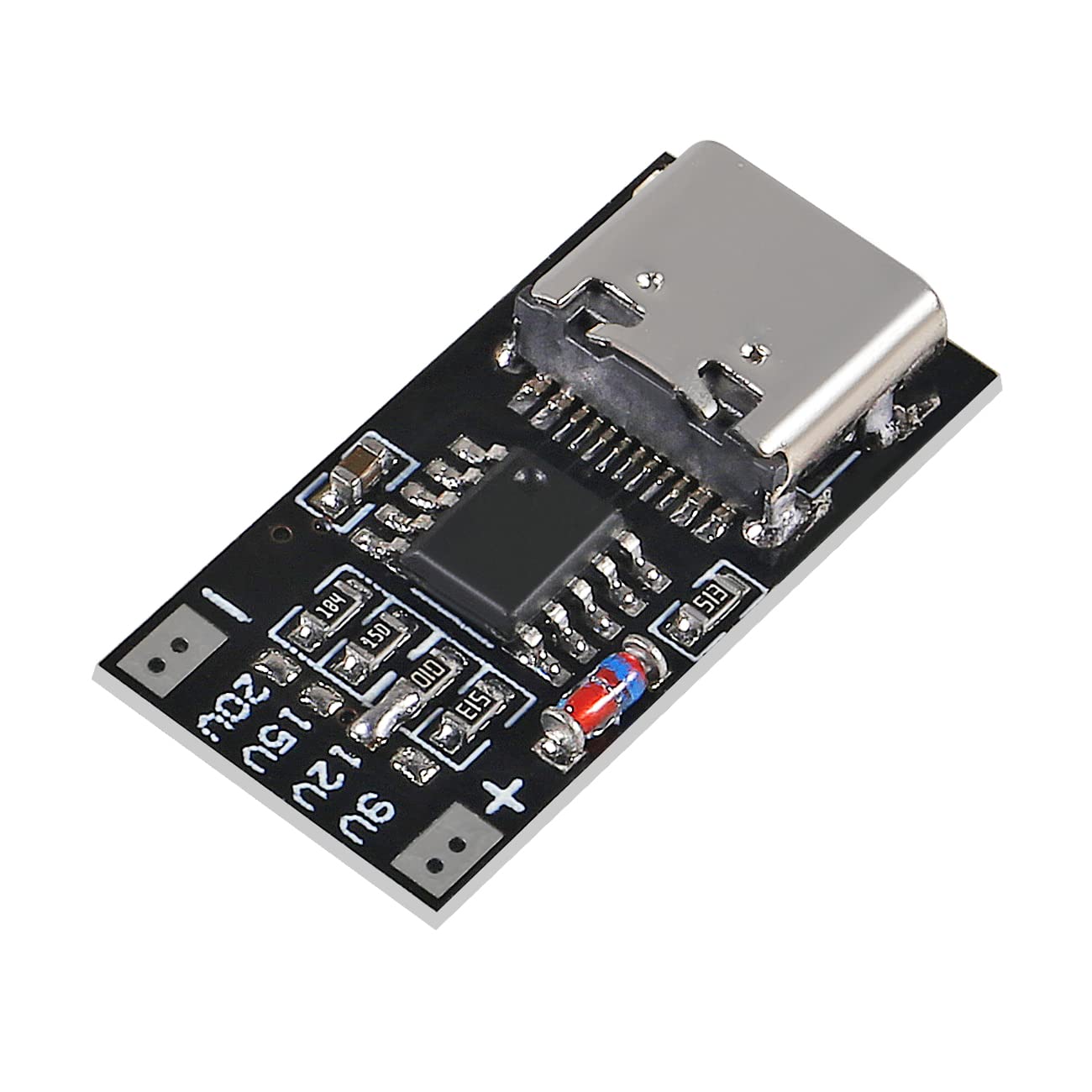

USB-C PD Trigger Board Module PD/QC Decoy Board Fast Charge USB Type-c to DC 9V 12V 15V 20V High Speed Charger Power Delivery Boost Module

1. Product name: PD decoy
2. Input voltage: DC 5V
3. Output voltage: 5V>9V>12V>15V>20V
4. Maximum output voltage: 20v
5.  Maximum output current: 5A
6.  Working temperature: -25 ℃ ~ 85 ℃
7.  Working humidity: 5% ~ 95% RH

1. Support a variety of fast charging protocols:

• PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, AFC

2. The function of this product:

• Trick out the voltage of the fast charging charger/charging treasure and use it as a DC power supply. For example, let the fast charging power bank output 9 volts and 12 volts to supply power to routers, light cats, etc.
• Turn some traditional DC-powered devices into TYPE-C port power supplies.

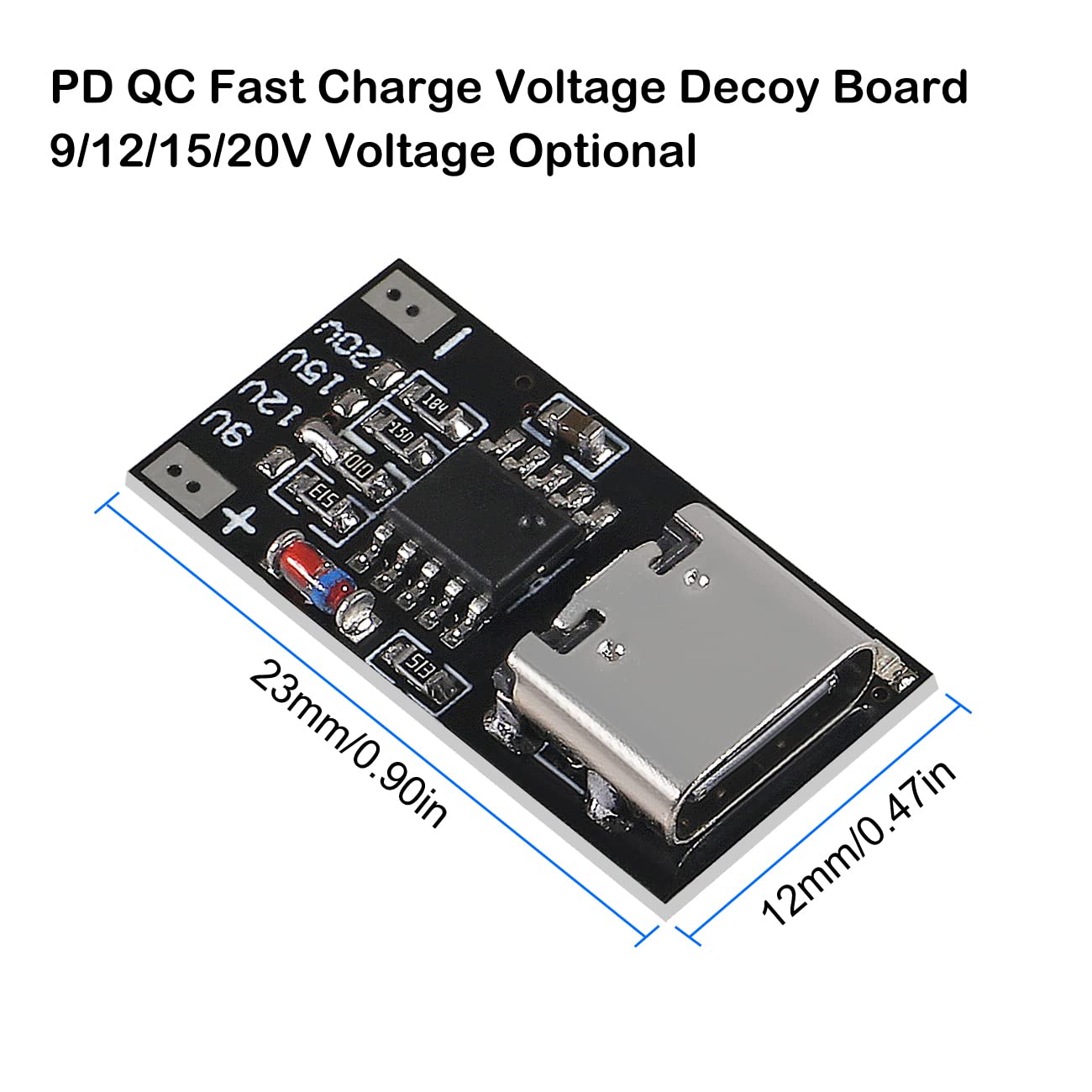

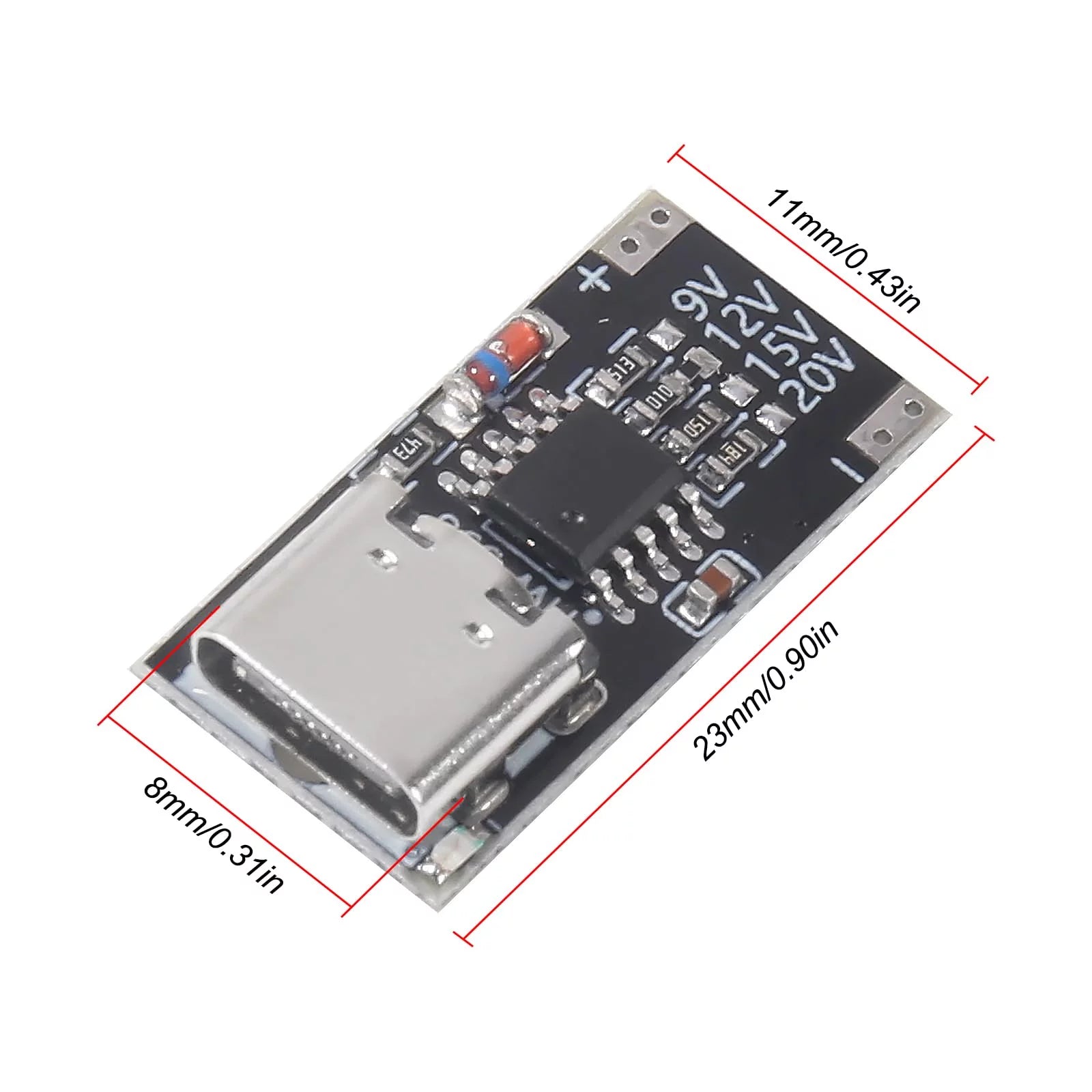

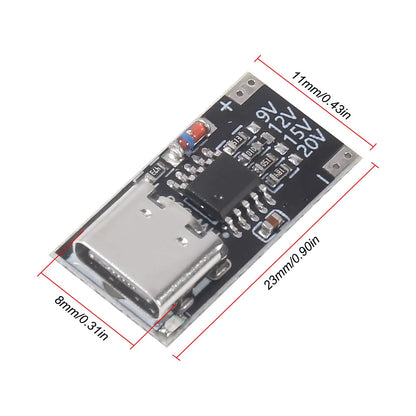

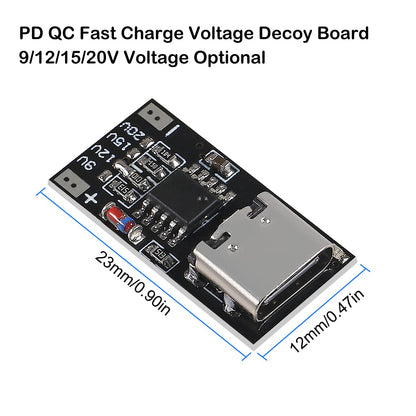

• The size of the decoy board: 23*11.5*4mm

Note:

1. Mobile phone chargers/charging treasures must first support fast charging such as PD/QC in order to deceive the fast charging voltage.

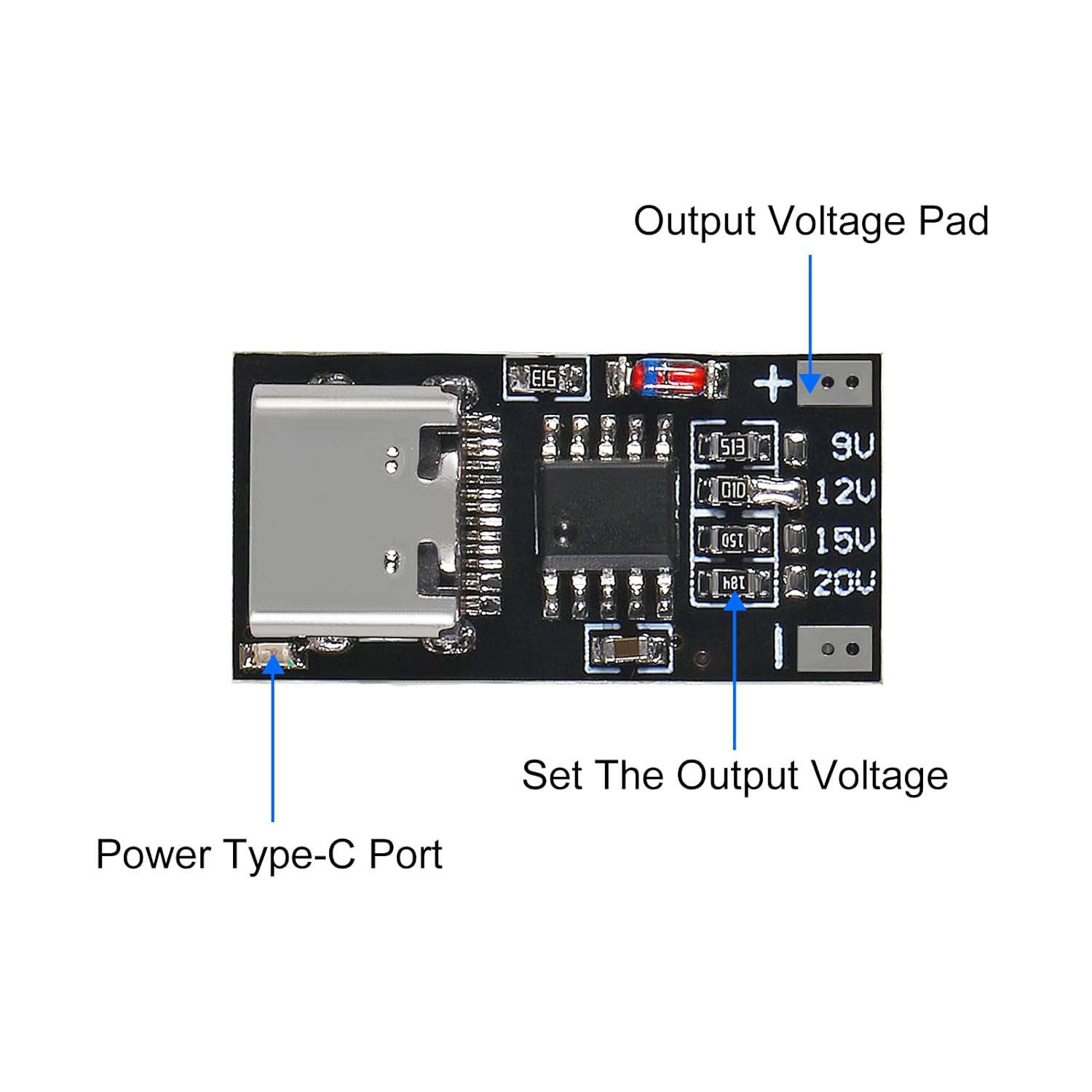

2. Fix the four gears of 9/12/15/20 volts, what voltage is needed, just short the corresponding pads.

3. For example, if you set the decoy to 20 volts, but your charger is only up to 9 volts, it will automatically downshift to deceive the output to 9 volts.

4. The maximum support is 5A, and the actual output current/power is determined by your fast charging charger and load.
