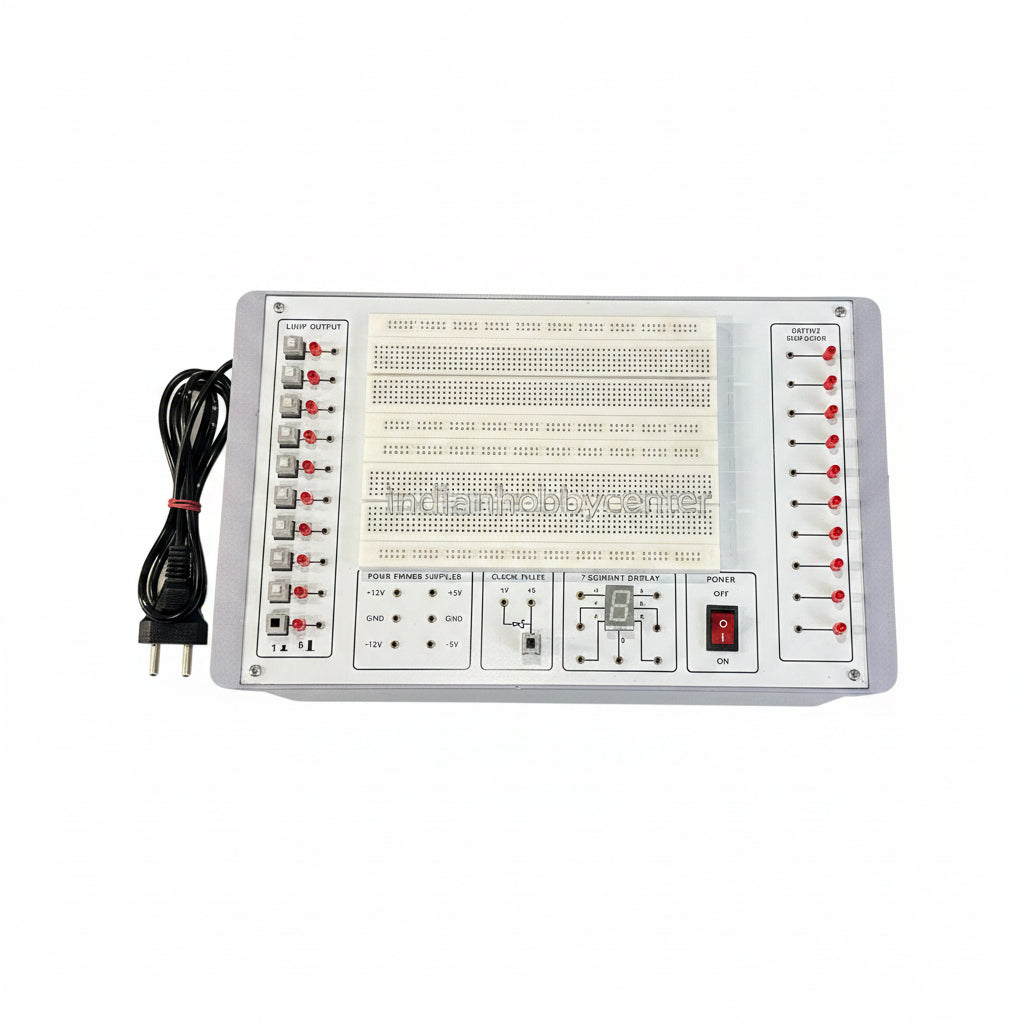

Universal Breadboard Trainer Kit (Standard)

Universal Breadboard Trainer Kit (Standard) – All-in-One Electronics Prototyping Platform

Build, test, and experiment with electronic circuits effortlessly using the Universal Breadboard Trainer Kit (Standard). This feature-packed trainer provides everything you need in one compact unit — a large solderless breadboard, multiple power supply rails, logic input switches, and LED output indicators — making it the ideal workstation for students, educators, and electronics hobbyists.

What's in the Box

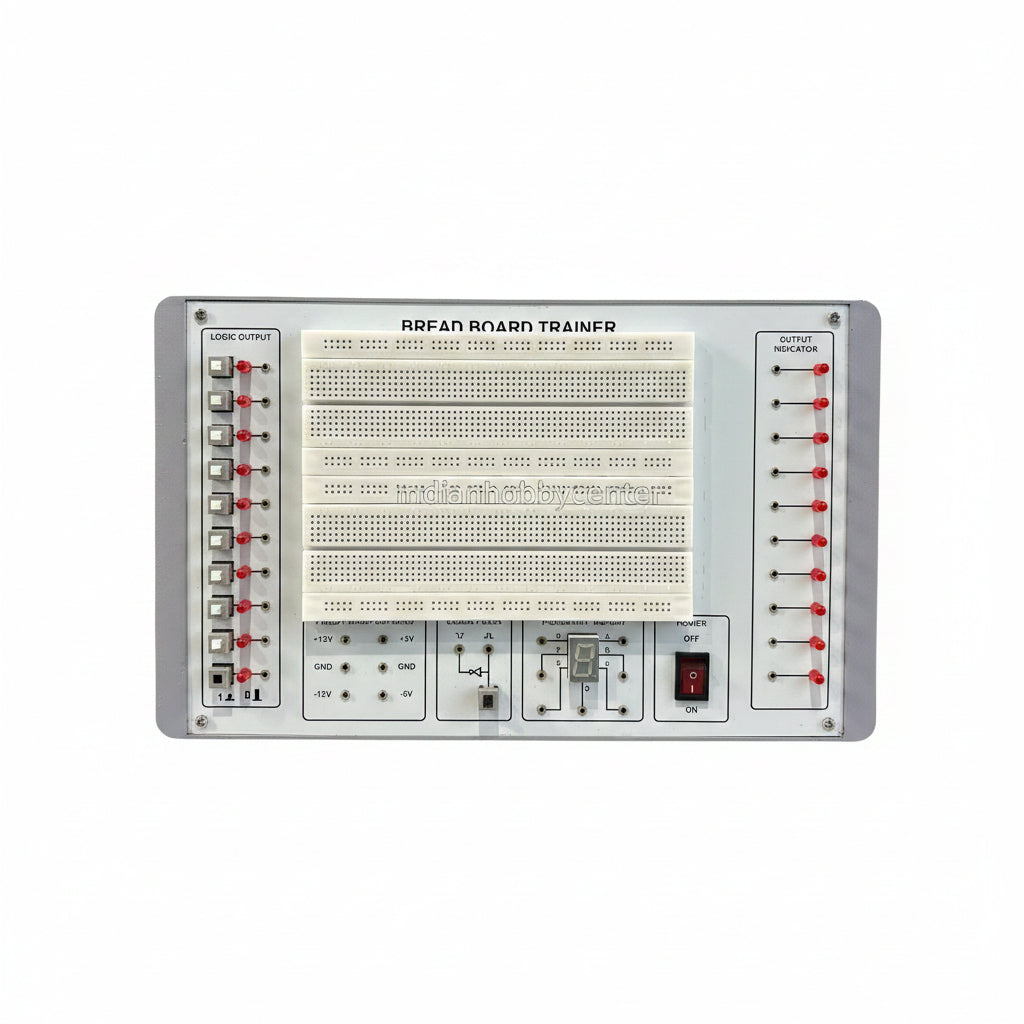

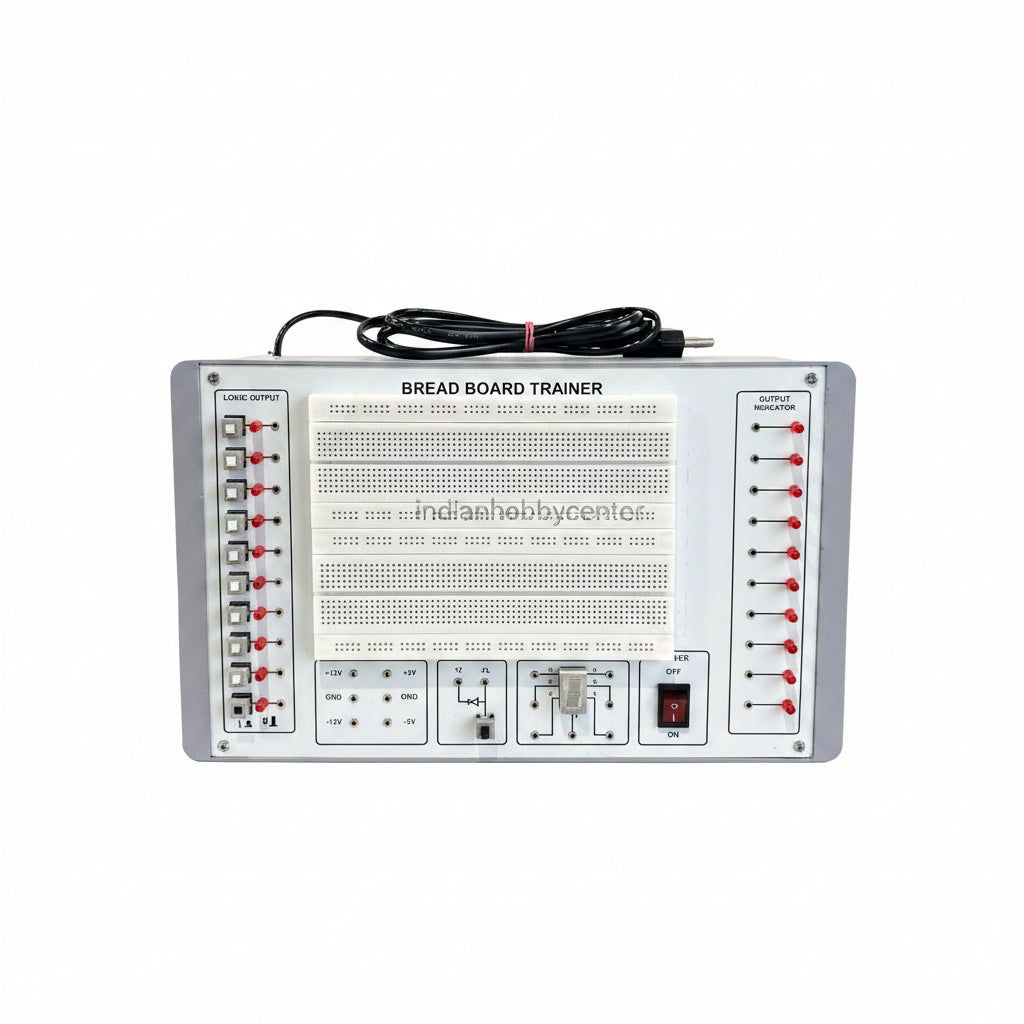

• Rugged aluminium enclosure with a clean, labelled front panel
• Large solderless breadboard with multiple tie-point strips for extensive circuit building
• Multi-voltage DC power supply outputs:
  • +12V, −12V, +5V, −5V, and GND terminals
• 8 Logic Input switches (left panel — Logic Output section) for digital signal input
• 8 Output Indicator LEDs (right panel) for real-time logic state monitoring
• Built-in clock/pulse generator with frequency selector switch
• Built-in single-pole toggle switch for circuit control experiments
• Mains ON/OFF rocker switch with indicator
• AC mains power cord included

Key Features

• Large breadboard area — ample space for complex analog and digital circuit prototyping
• Multiple power rails (±12V, ±5V, GND) to support a wide range of ICs and components
• 8 logic input switches for manual HIGH/LOW signal control in digital experiments
• 8 LED output indicators for instant visual feedback on logic states
• Integrated clock pulse generator for sequential and timing circuit experiments
• Sturdy metal body — built for long-term lab use
• Plug-and-play — no soldering required

Experiments You Can Perform

• Logic gate verification (AND, OR, NOT, NAND, NOR, XOR)
• Combinational circuit design (adders, multiplexers, decoders)
• Sequential circuit experiments (flip-flops, counters, shift registers)
• Analog circuit prototyping (amplifiers, filters, oscillators)
• Timer and clock circuit experiments using 555 IC
• Microcontroller and IC interfacing experiments

Perfect For

Engineering and polytechnic students (ECE/EEE/CS), ITI and diploma institutes, school science labs, and electronics hobbyists who need a reliable, all-in-one breadboard trainer for both analog and digital electronics experiments.

What's in the Box

• 1 × Universal Breadboard Trainer Kit (Standard)

• Instruction Manual with experiment procedure & observation tables

• Set Of Patch Cord
