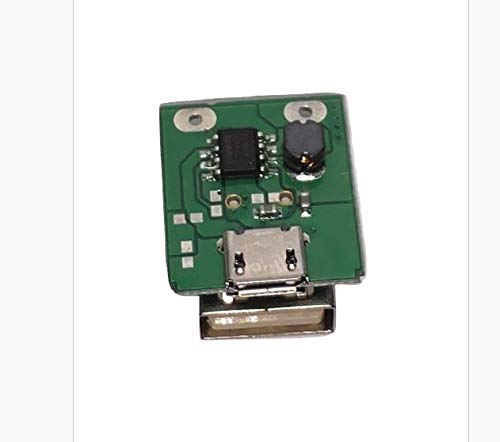

Ultra Small Micro USB Power Bank Charging Module Circuit Board Step Up with LED Indicator
Subcribe to back in stock notification
All Prices Incuding GST
Local Pickup
Estimated time to pack : 15 Mins.
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Input Voltage: 3. 7V~5. 5V
Charging Current: 1A(max), Output Current: 1A(max)
Output voltage: 5V, BAT Discharging Stop Voltage: 2. 9V
Discharging Efficiency: 85%(input 3. 7V output 5V/1A)
--
1. Charging and discharging indication
2. Internally installed charging and discharging power MOS
3. Preset 4. 2V charging voltage, precision ±1%
4. Max 8uA standby current
5. Intelligent charging management and discharging management
6. Intelligent temperature control and over-temperature protection
7. Intelligent output over-voltage protection, short circuit protection, overload protection
8. Intelligent overcharging and over-discharging protection
9. Support trickle mode and zero voltage charging
10. Auto on /off with load detection Light display: Charging: When charging, the indicator LED red and blue flash alternately (blue light continuous on means fully charged) Discharge: Blue light on and starts flashing when battery voltage drops below 3. 2V (low battery) and it shuts down automatically when battery voltage reaches 2. 95V.
