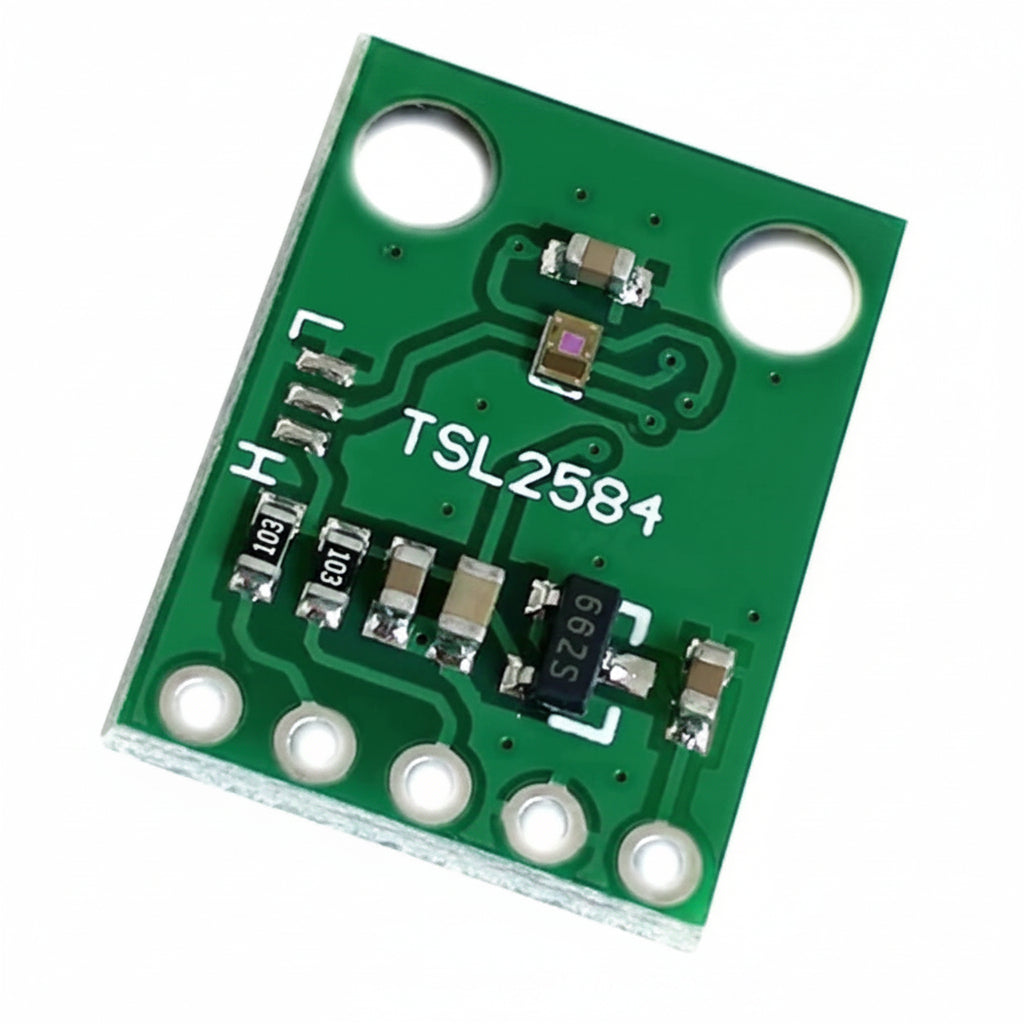

TSL2584TSV Digital Ambient Light Intensity Sensor Module

• This digital output can be input to a microprocessor where illuminance (ambient light level) in is derived using an empirical formula to approximate the human eye response.
• The device combines one broadband photodiode (visible plus infrared), one infrared-responding photodiode, and a phoic infrared-blocking filter on a single CMOS integrated circuit.
• The TSL2584TSV is a very-high sensitivity light-to-digital converter that transforms light intensity into a digital signal output capable of direct IC interface.
• Two integrating ADCs convert the photodiode currents into a digital output that represents the irradiance measured on each channel.
• The TSL2584TSV supports a traditional level style interrupt that remains asserted until the firmware clears it.

• Approximates Human Eye Response

• Dual Diode with Phoic Filter

• Flexible Operation

• Programmable Analog Gain and Integration Time

• Suited for Operation Behind Dark Glass

• 1000000: 1 Dynamic Range

• Low Operating Overhead

• Programmable Upper and Lower Thresholds

• Programmable Persistence Filter

• Low Power

• 3.0 μA Sleep State

• Industry Standard Two-Wire Interface

• I2C Fast Mode Compatible Interface

• Data Rates up to 400 kbit/s

• Input Voltage Levels Compatible with1.8−V Bus

• The TSL2584TSV applications include:

• Display Backlight Control

• Keyboard Illumination Control

Description:

• The TSL2584TSV is a very-high sensitivity light-to-digital converter that transforms light intensity into a digital signal output capable of direct I²C interface.

• The device combines one broadband photodiode (visible plus infrared), one infrared-responding photodiode, and a phoic infrared-blocking filter on a single CMOS integrated circuit.

• Two integrating ADCs convert the photodiode currents into a digital output that represents the irradiance measured on each channel.

• This digital output can be input to a microprocessor where illuminance (ambient light level) in is derived using an empirical formula to approximate the human eye response.

• The TSL2584TSV supports a traditional level style interrupt that remains asserted until the firmware clears it.
