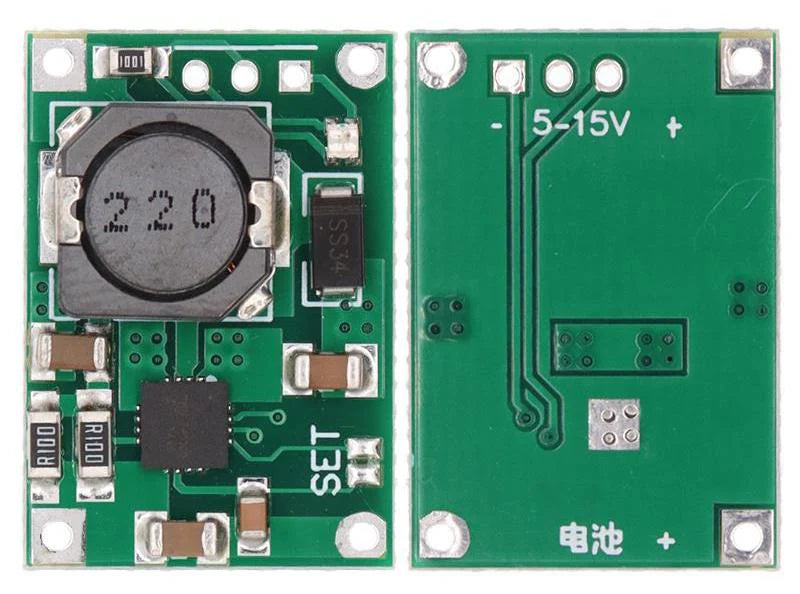

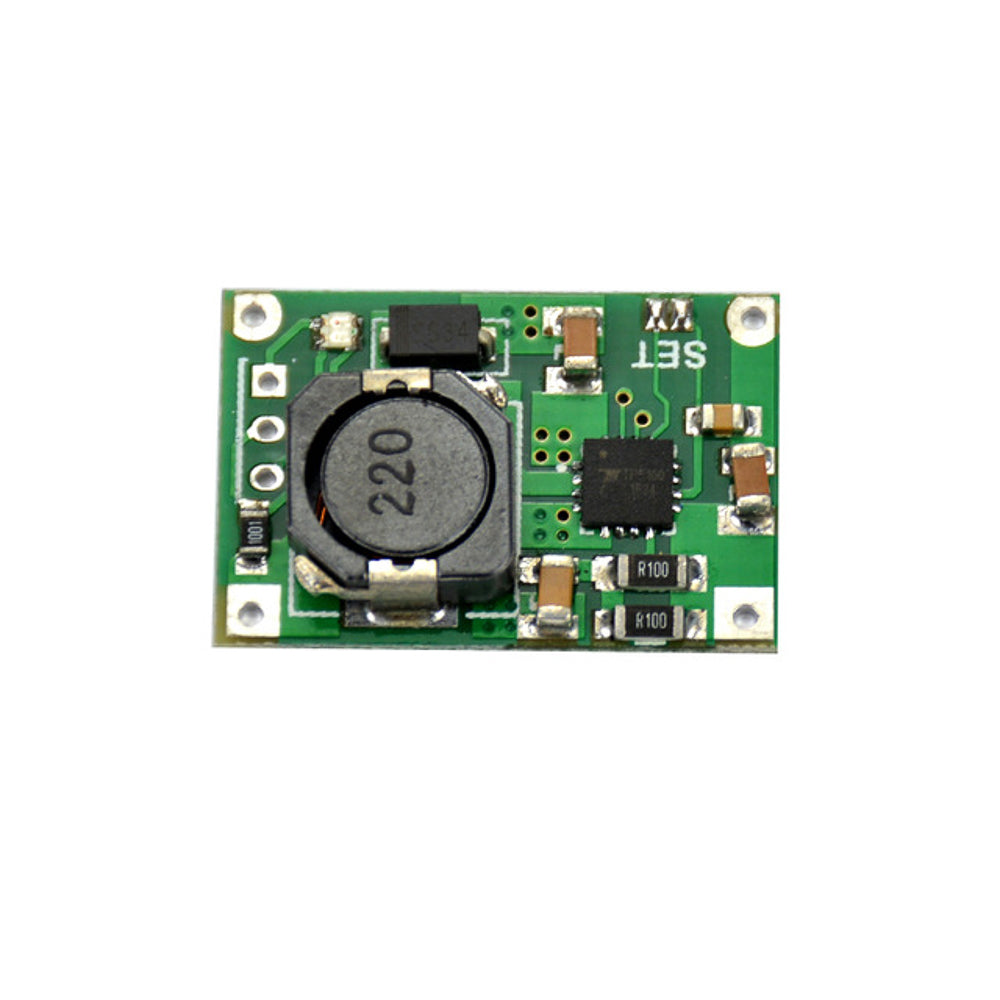

TP5100 4.2v and 8.4v Single / Double Lithium Battery Charging Module with Protection
TP5100 4.2v and 8.4v Single / Double Lithium Battery Charging Module with Protection
Regular price
Rs. 69.00
Regular price
Sale price
Rs. 69.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Features:
- Input voltage: 5-15V DC power supply.
- Charge status: full and unloaded blue lights, charging red.
-
Double 8.4v / 4.2v lithium rechargeable single .
-
Programmable charge current. 0. 1A-2A .
-
Programmable steady precharge current 10% -100%.
-
Wide operating voltage, maximum reach I8V.
-
Red and green LED charge status indicator.
-
Chip temperature protection, overcurrent protection, under voltage protection.
-
Battery temperature protection, reverse battery shutdown, short circuit protection.
-
Switching frequency 400Khz, usable inductance 20uH and more.
-
PWR_ON Power battery for switching control.
TP5100 4.2v and 8.4v Dual One/Two Battery Protection Board is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications. Meanwhile, TP5100 built-in input overcurrent, under-voltage protection, over-temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.
TP5100 has 5V-15V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three-phases, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintains a smaller amount of heat.
TP51OO built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and another external Schottky diode.
