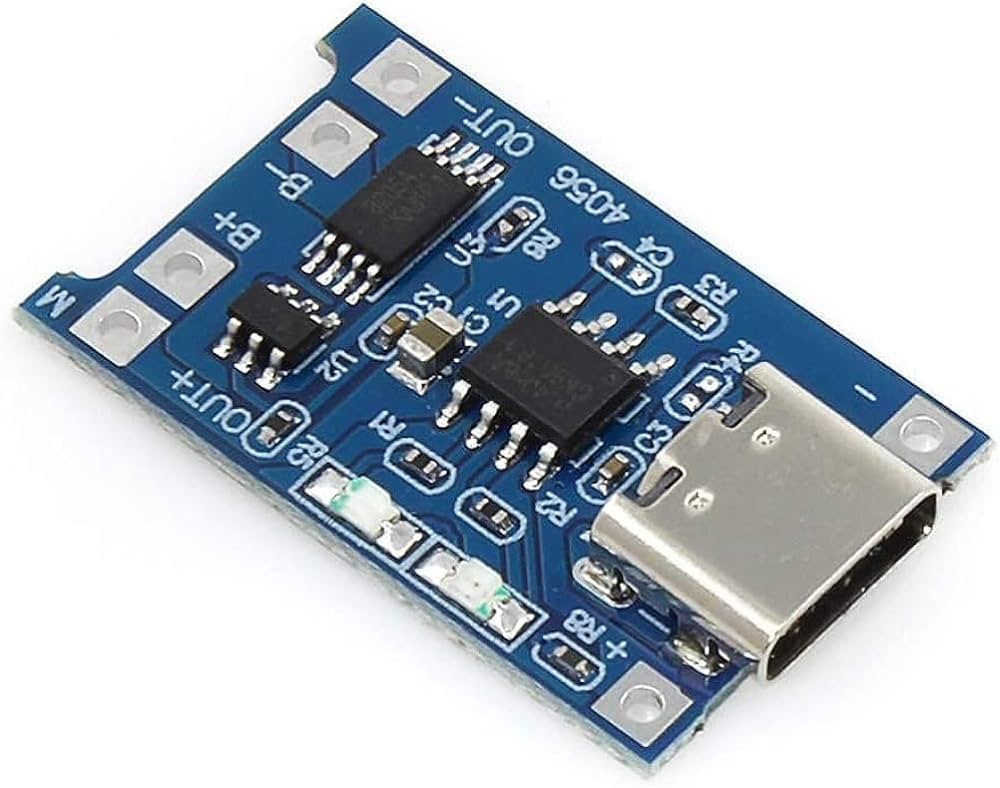

TP4056 Lithium Battery Charger Module 5V 1A 18650 Battery type-C
All Prices Incuding GST
Local Pickup
Estimated time to pack : 15 Mins.
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Very High Quality PCB
In built Protection to save your costly battery for overcharging
In built protection for short circuit
Micro usb for easy charging from any android mobile charger
Best for arduino,DIY Kits,Power bank ,portable projects etc
--
Based on TP4056, this is 3.7V lithium battery charger modules, with a Micro USB interface. It is small size and light weight, especially for a single lithium battery charging. Features: - Input voltage: 4.5V ~ 5.5V - Input Interface: Micro USB port - Charging method: linear charge - A full charge voltage: 4.2V - Charge Current: 1A (default), modify the onboard resistor to adjust the charging current according to the table below. - Charging accuracy: 1.5% - Charging indicator: Red LED charging, Blue LED full. - Output Reverse: lithium batteries can not be reversed. - Overdischarge Current at 4μA (Vcc= 1.8V). - Precision Overcharge Protection Voltage 4.3V ± 50mV - Two Detection Levels for Overcurrent Protection - Dual channel Enhancement Mode power MOSFET : Due to the internal PMOSFET architecture and anti-reverse charging path, no external isolation diodes are required.
