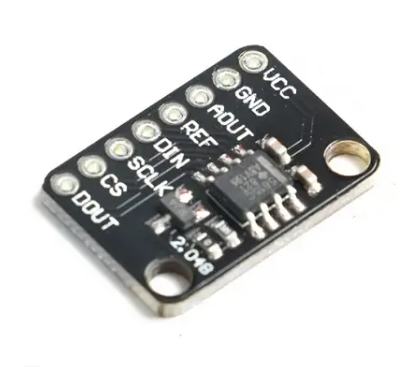

TLC5615 SPI 10Bit Modul DAC V2
TLC5615 SPI 10Bit Modul DAC V2
Couldn't load pickup availability
The TLC5615 SPI 10Bit v2 DAC module is a serial-connected digital-to-analog converter. Its output is voltage-type and the maximum output voltage is twice the reference voltage. It has a power-on reset function that resets the DAC register to all zeros. Its performance exceeds that of legacy current-based output DACs. It only requires three serial lines to complete a 10-bit serial input. It is easy to interface with industry-standard microprocessors or microcontrollers. It is suitable for battery-powered measuring instruments, mobile phones, and also for digital offset and gain adjustment and industrial control applications.
The TLC5615 DAC module is an excellent tool for projects where you need a high-quality digital-to-analog converter. It is useful in mobile devices where low power consumption is crucial, and in industrial applications where precision settings are required. It is ideal for use in instrument testing, allowing for easy parameter adjustment and device performance optimization.
Features:
- Working voltage: 5V
- Interface: 3-wire serial interface
- Voltage output range: 2 times the reference input voltage
- Maximum power consumption: 1.75mW
- Update rate: 1.21MHz
- Settling time to 0.51LSB:
- Operating temperature: 0°C~70°C
- Pin compatible with Maxim MAX515
Package Includes:
1 x TLC5615 SPI 10Bit Modul DAC Modul V2
