TINY LIDAR Laser Ranging Sensor TOF based on VL53L0X 2 Meters Range
TINY LIDAR Laser Ranging Sensor TOF based on VL53L0X 2 Meters Range
Regular price
Rs. 159.00
Regular price
Sale price
Rs. 159.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

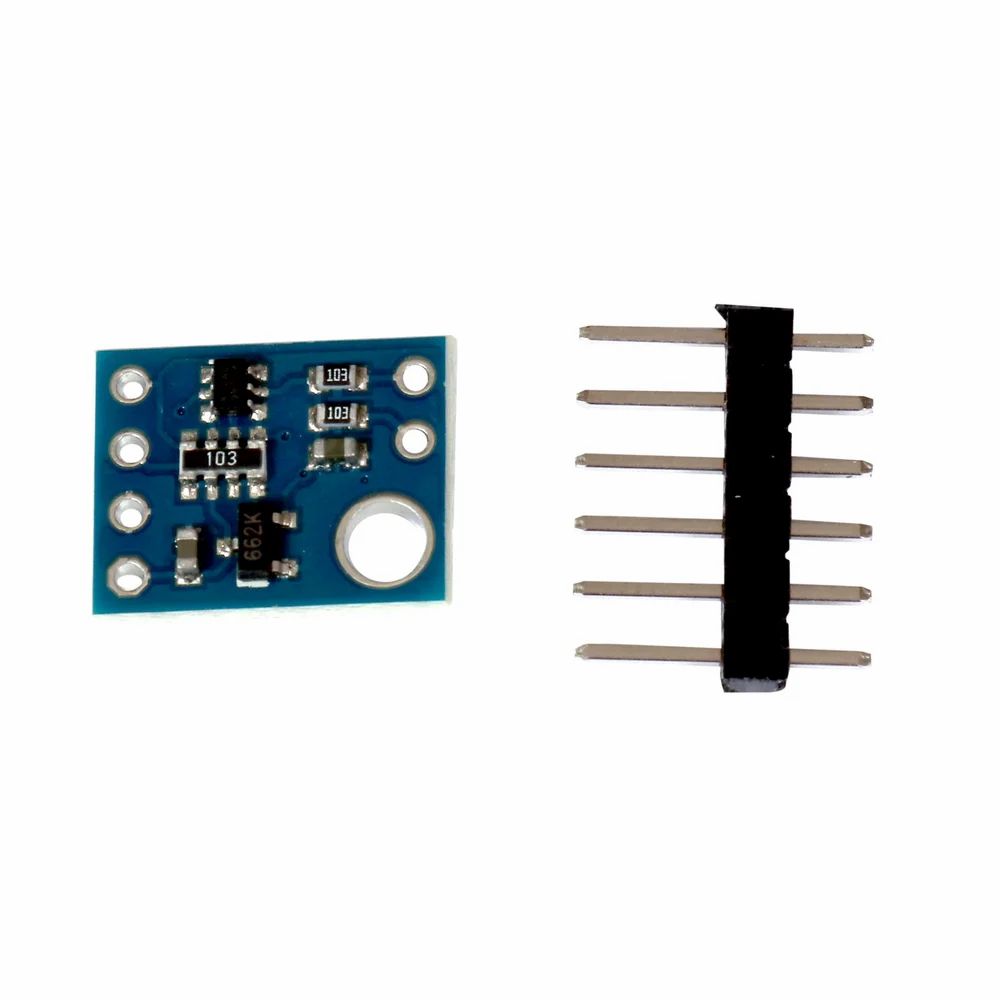

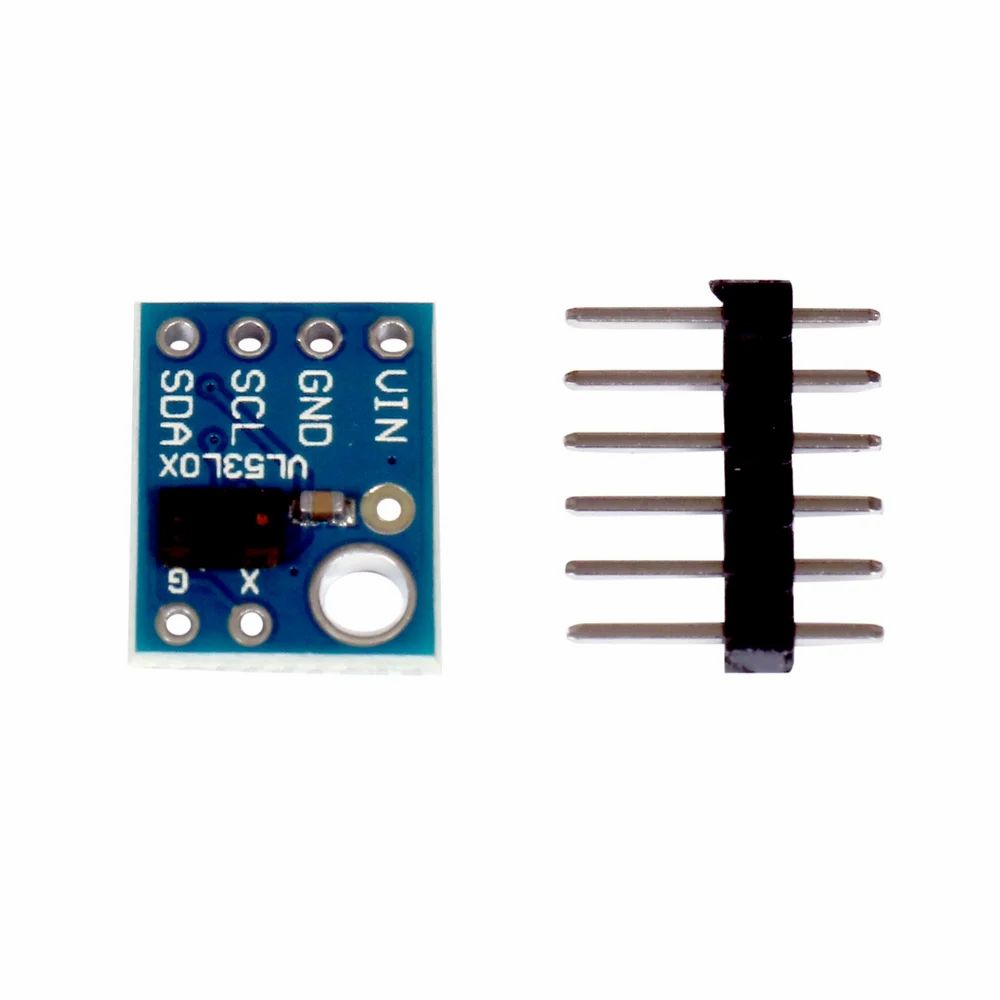

This small Lidar sensor is a carrier/breakout board for ST’s VL53L0X laser-ranging sensor, which measures the range to a target object up to 2 m away. The VL53L0X uses time-of-flight measurements of infrared pulses for ranging, allowing it to give accurate results independent of the target’s color and surface.
Distance measurements can be read through a digital I²C interface. The board has a 2.8 V linear regulator and integrated level-shifters that allow it to work over an input voltage range of 2.6 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.
Specifications:
- Resolution: 1 mm
- Maximum range: 2m
- Interface: I²C
- Minimum operating voltage: 2.6 V
- Maximum operating voltage: 5.5 V
- Supply current: 10 mA
- Dimension: 0.5" × 0.7" × 0.085" (13 mm × 18 mm × 2 mm)
- Weight : 0.04g
Package Includes:
- 1 x TINY LIDAR Laser Ranging Sensor TOF based on VL53L0X 2 Meters Range
