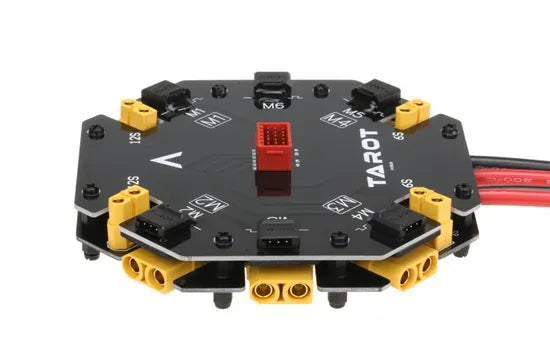

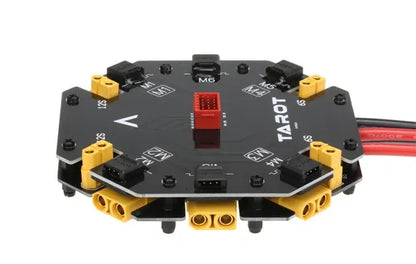

Product Description:
·Tarot's factory 12S power distribution management module
·Specially developed for medium and large drone
·Support four-axis / six-axis two kinds of drone installation use
·Support 6S/12S voltage input

Product Features:

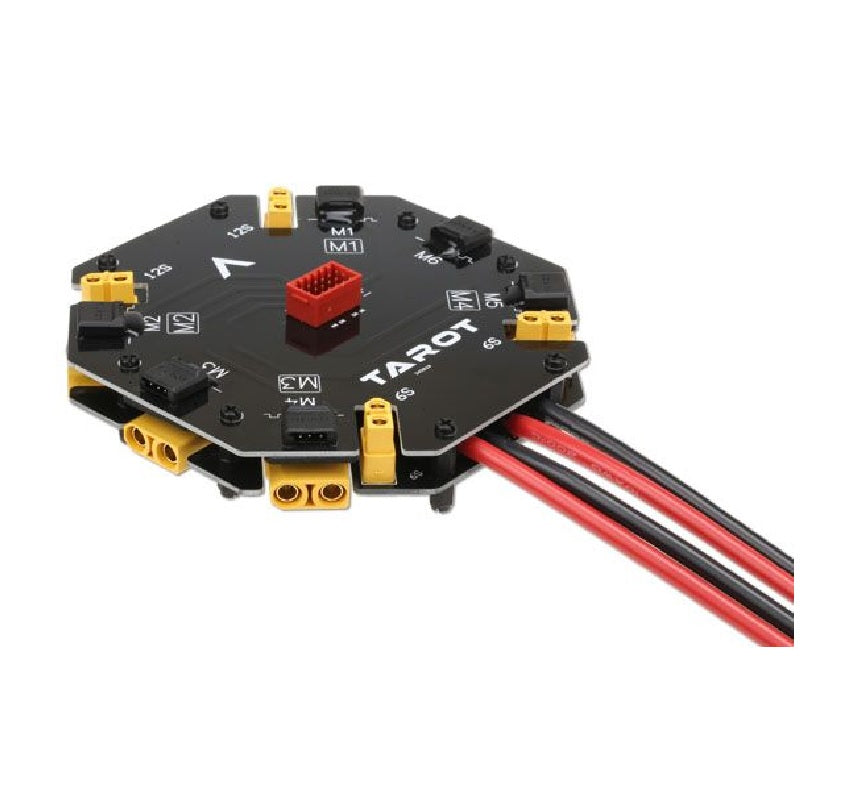

1.Power input line using 10awg silicone wire,length up to 185mm.
2.Support two 6S batteries in series into 12S voltage input,also can directly input one 6S battery.
3.Brushless ESC signal socket adopts customized ESC red signal hub with anti-misplug design.

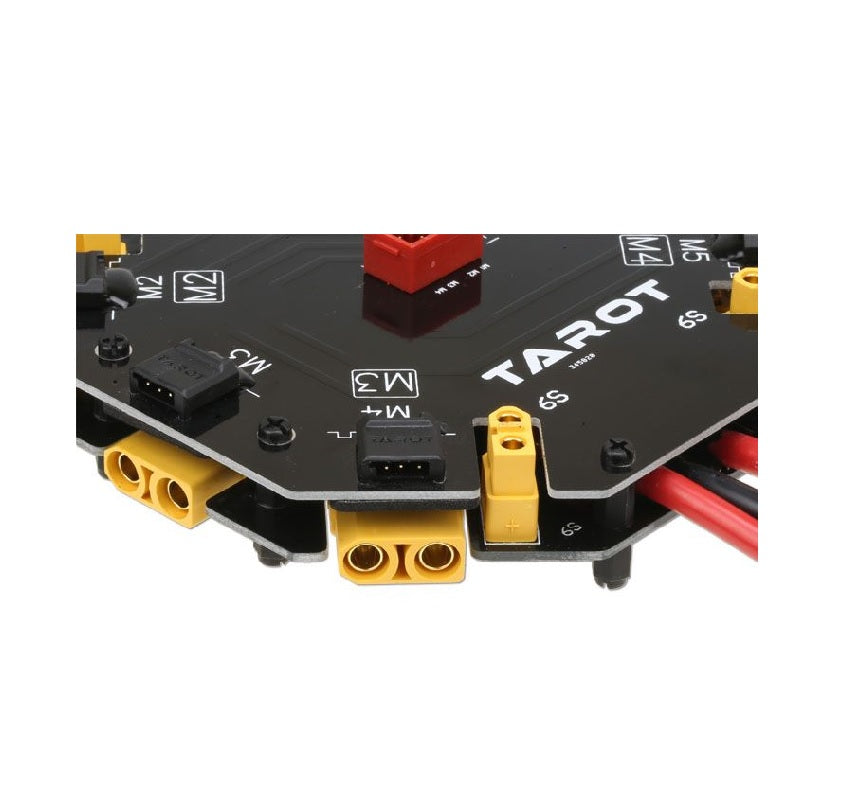

4.ESC power supply interface using the new XT90 plug,reserved for two 6S(XT60)output interface(if you choose one way 6S battery input,then this 2 way no output voltage),two 12S (XT60) output interface.

Usage:
Power distribution management module 12S power supply is composed of two 6S batteries in series,so two batteries need to be plugged in to provide power supply.
If only 6S power supply is required,only the leftmost red positive pole and the rightmost black negative pole are connected,and the two red and black wires in the middle are short-circuited series connection points,no need to connect

Note:

Before powering on for the first time, you need to test the positive and negative power supply and voltage output by yourself to ensure that it is completely normal before connecting it to the output device, the company is not responsible for any damage caused by this product!

Packing List:

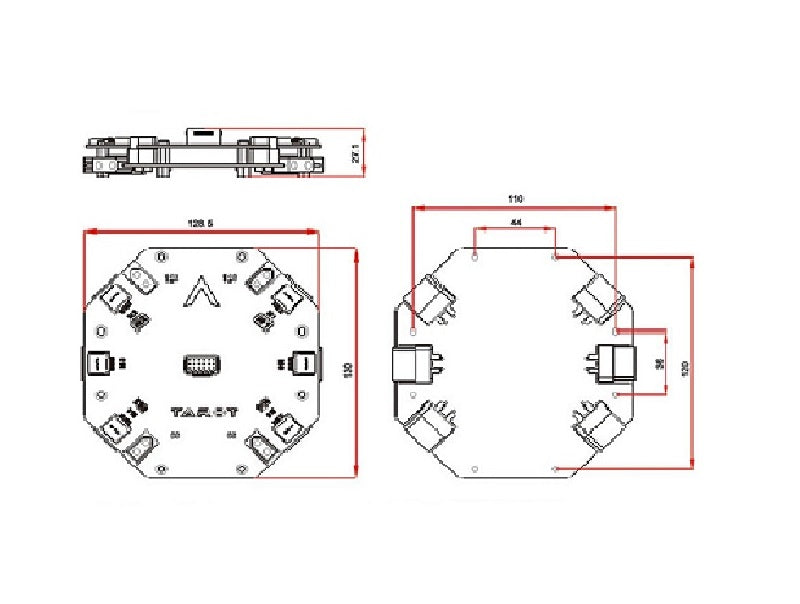

12S Power Distribution Management Module (227g)(130×130×27mm)×1
