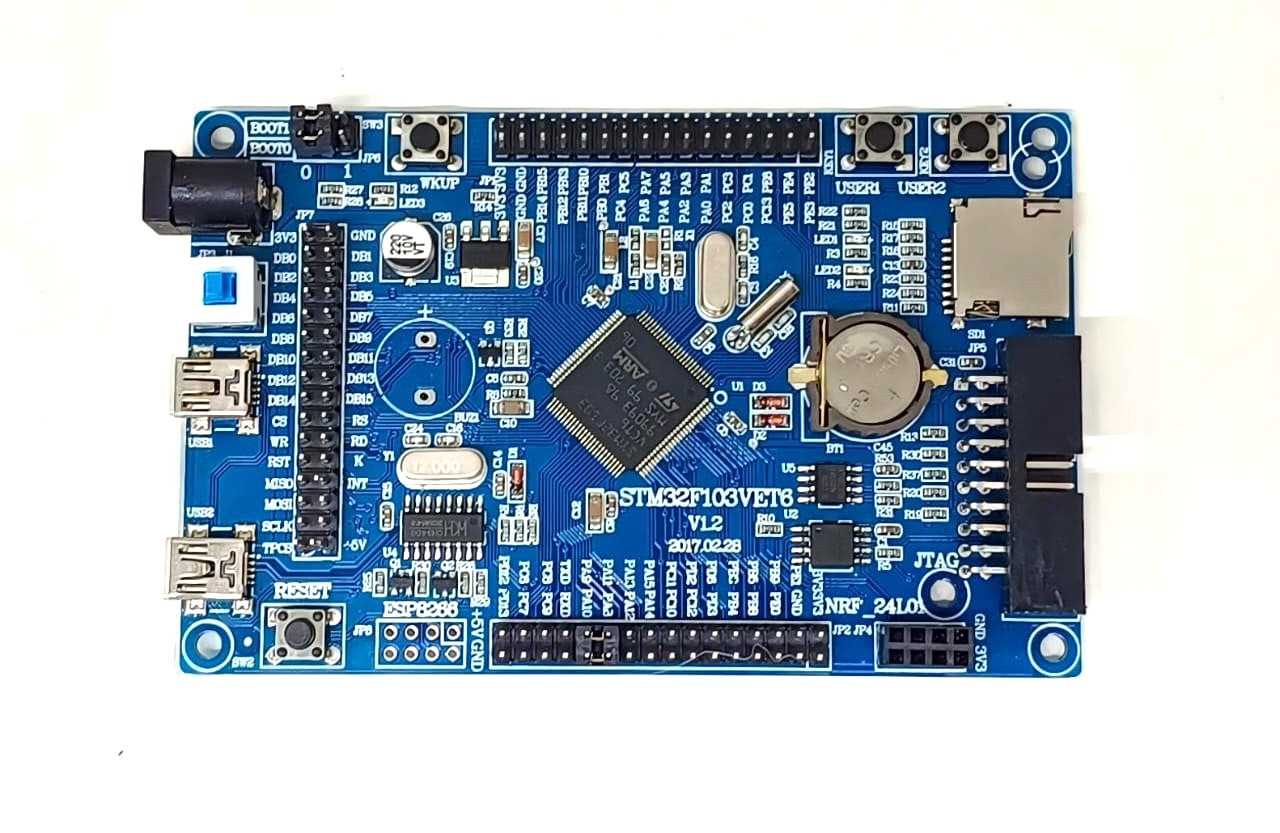

The STM32F103VET6 medium-density performance line family incorporates the high-performance ARM Cortex M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses.The ARM Cortex-M3 32-bit RISC processor features exceptional code efficiency, delivering high performance which is expected from an ARM core in the memory size usually associated with 8-bit and 16-bit devices. The STM32F103 Performance Line family has an embedded ARM core and is therefore compatible with all ARM tools and software. It combines the high performance ARM Cortex-M3 CPU with an extensive range of peripheral functions and enhanced I/O capabilities.

STM32F103VET6 Specifications:

    ARM 32-bit Cortex-M3 CPU Core

•         72 MHz maximum frequency,1.25 DMIPS/MHz performance at 0 wait state memory access
•         Single-cycle multiplication and hardware division

Memories

•         128 Kbytes of Flash memory
•         20 Kbytes of SRAM

    Clock, reset and supply management

•         2.0 to 3.6 V application supply and I/Os
•         POR, PDR, and programmable voltage detector (PVD)
•         4 to 16 MHz crystal oscillator
•         Factory-trimmed 8 MHz RC
•         Internal 40 kHz RC
•         PLL for CPU clock
•         32 kHz oscillator for RTC with calibration

    3 x 12-bit, 1 µs A/D converters (up to 16 channels)

•         Conversion range: 0 to 3.6 V
•         Dual-sample and hold capability
•         Temperature sensor

    DMA

•         7-channel DMA controller
•         Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
•         Up to 80 fast I/O ports

    Debug mode

•         Serial wire debug (SWD) & JTAG interfaces

    7 timers

•         Three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature encoder input
•         16-bit, motor control PWM timer with dead-time generation and emergency stop
•         2 watchdog timers (Independent and Window)
•         SysTick timer 24-bit downcounter

    9 communication interfaces

•         Up to 2 x I2C interfaces (SMBus/PMBus)
•         Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
•         Up to 2 SPIs (18 Mbit/s)
•         CAN interface (2.0B Active)
•         USB 2.0 full-speed interface
