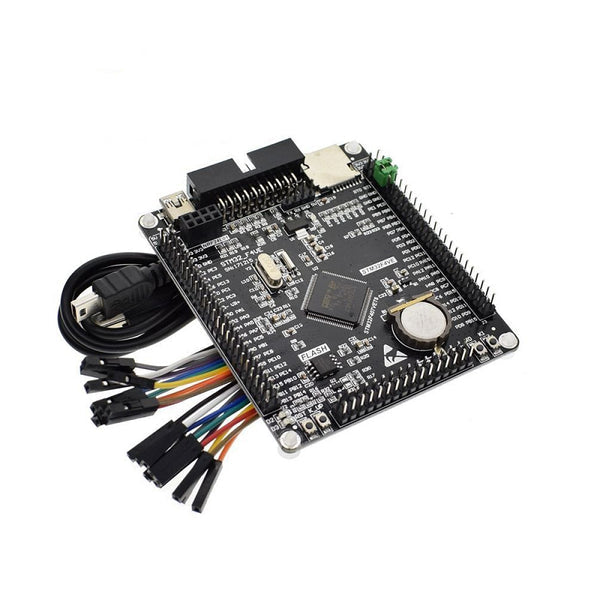

STM32F407VET6 Arm Cortex-M4 core with DSP and FPU STM32_F4VE
All Prices Incuding GST
Order Through WhatsApp
+91-8249931161
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Features:
- Core: Ar 32-bit Cortex-M4 CPU with FPU
- LCD parallel interface, 8080/6800 modes
- Low-power operation
- 3×12-bit, 2.4 MSPS A/D converters
- 2×12-bit D/A converters
- General-purpose DMA
- Up to 17 timers
- Up to 140 I/O ports with interrupt capability
Specifications:
Specification:
- Item Type: Other Board
- Based On: STM32 Based
- Flash Memory: 1MB
- Model STM32F407VET6
- Core: ARM 32 Cortex M4 CPU
- Debug Mode SWD
- Number of I/O 140
- Memory: 192+4 Kbytes SRAM, 1Mbyte Flash
- D/A Converters 2 x 12-bit
- Timer 17
The STM32F405xx and STM32F407xx family is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.
NOTE : STM32F407VET6 and STM32F407ZGT6 on chip working is same.
Package Includes:
1 x STM32F407VET6 Arm Cortex-M4 core with DSP and FPU
10 x Female-Female Jumper Cable
1 x USB Cable
