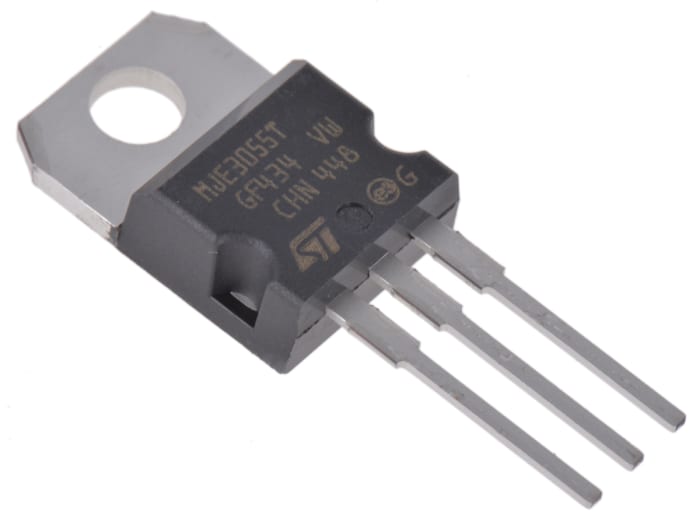

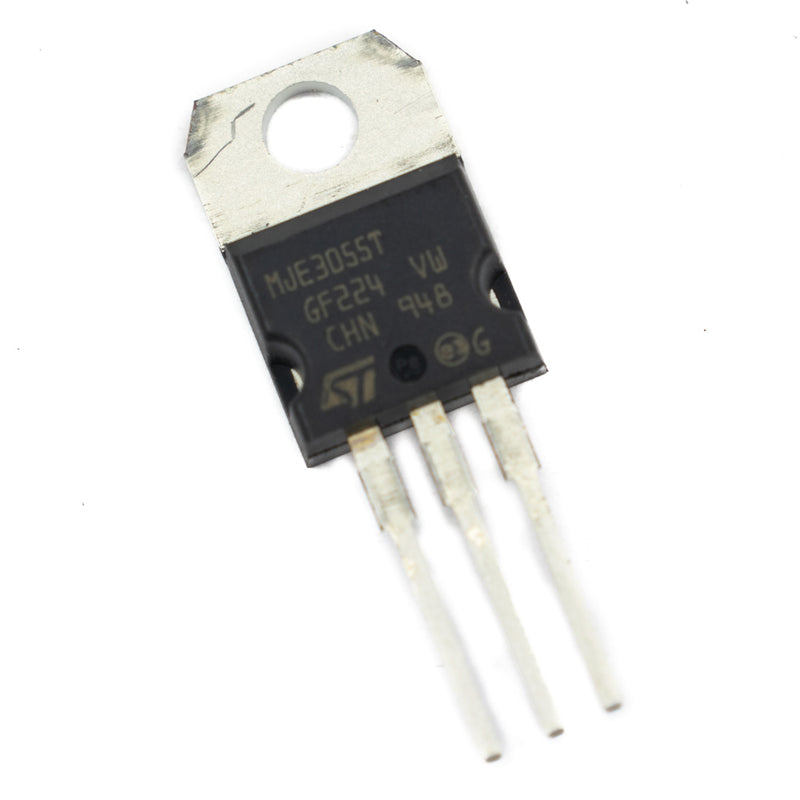

The MJE3055T is a silicon epitaxial-base NPN transistor in Jedec T0-220 package. It is for power switching circuits intended for general-purpose amplifiers. The complementary PNP type is MJE2955T.
Features:
- DC Current Gain Specified to 10 Amperes
- High Current Gain — Bandwidth Product —fT = 2.0 MHz (Min) @ IC = 500 mAdc
Specifications :
- Brand: STMicroelectronics
Transistor Type: NPN - Maximum DC Collector Current: 10 A
- Maximum Collector Emitter Voltage: 60 V
- Package Type: TO-220
- Mounting Type: Through Hole
- Maximum Power Dissipation: 75 W
- Minimum DC Current Gain: 20
- Transistor Configuration: Single
- Maximum Collector Base Voltage: 70 V
- Maximum Emitter Base Voltage: 5 V
- Maximum Operating Frequency: 2 MHz
- Pin Count: 3
- Number of Elements per Chip: 1
- Maximum Operating Temperature: +150 °C
