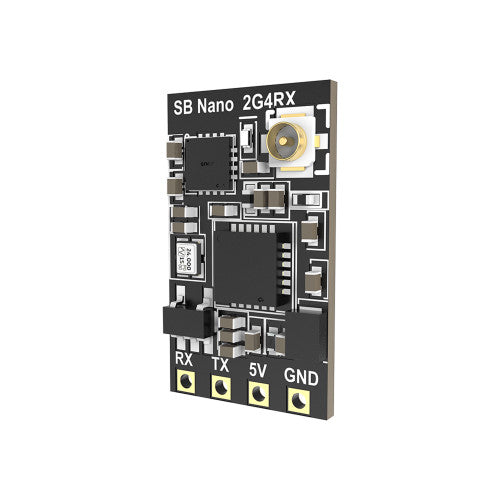

SpeedyBee Nano 2.4G 2.4G-TCXO 915M ExpressLRS ELRS Receiver
SpeedyBee Nano 2.4G 2.4G-TCXO 915M ExpressLRS ELRS Receiver
Couldn't load pickup availability
- Make: Speedybee
- SKU: ELRS-2G4-RX
- Type: ELRS Receiver
The GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver is a new Dual-Band system developed from the ExpressLRS open-source project. It is designed based on Semtech’s third-generation LR1121 RF chip, supporting 150 – 960MHz (sub-GHz) and 2.4GHz bands for Dual-Band transmission.
The ELRS Nano 915M/2.4G Dual-Band Receiver features dual LR1121 chips, allowing easy switching between 915M , 2.4G when paired with 915M/2.4G antennas. It is fully compatible with existing 915M and 2.4G ELRS TX modules.
The TCXO temperature-compensated crystal oscillator ensures reliable performance across temperature variations, with telemetry power up to 100mW. The built-in WiFi antenna facilitates effortless firmware updates, and the SH1.0 connector simplifies installation.
Feature:
- Advanced ExpressLRS 915M/2.4G dual-frequency system
- Based on Semtech’s third-generation LR1121 RF chip
- Compact at 11.1×20.4×5.2mm and weighing just 0.95g
- Supports 915M, 2.4G operating mode
- Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures
- TLM up to 100mW
- Refresh rate up to 1000Hz
- Supports WiFi firmware updates
- Includes an SH1.0 connector for easy installation
Specifications:
- Model SpeedyBee Nano 2.4GHz RX
- Name ExpressLRS Receiver
- Frequency 2.4Ghz
- Antenna T-antenna (49*79mm, 0.8g;52*79mm, 0.9g)

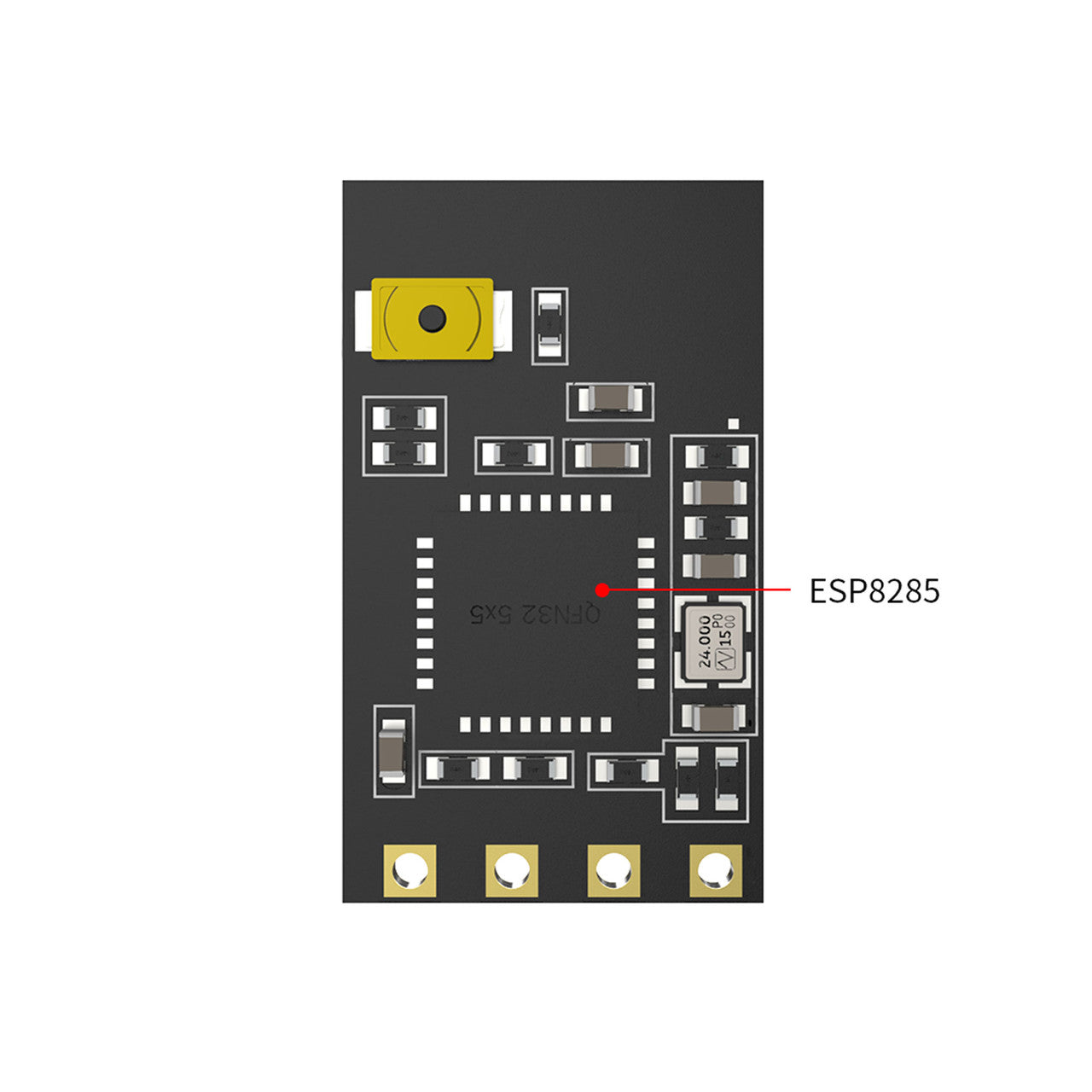

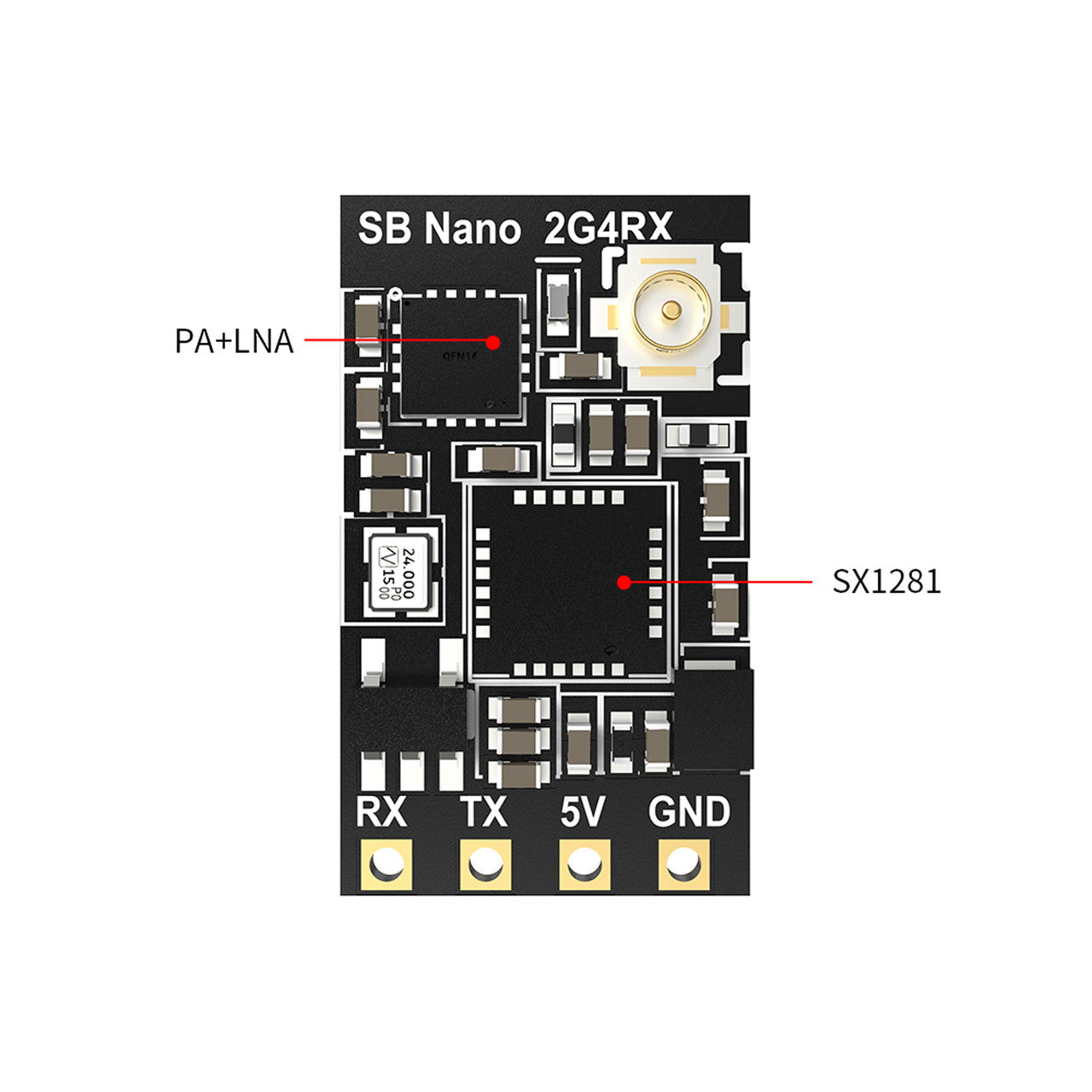

- Chip SX1281+ESP8285
- Power 100mW
- Input voltage 5V
- Antenna connector IPEX1
- Weight 0.7 gram(without antenna)
- Dimension 10.4mm*18.4mm
- Default Firmware SpeedyBee Nano 2.4GHz RX 3.5.6

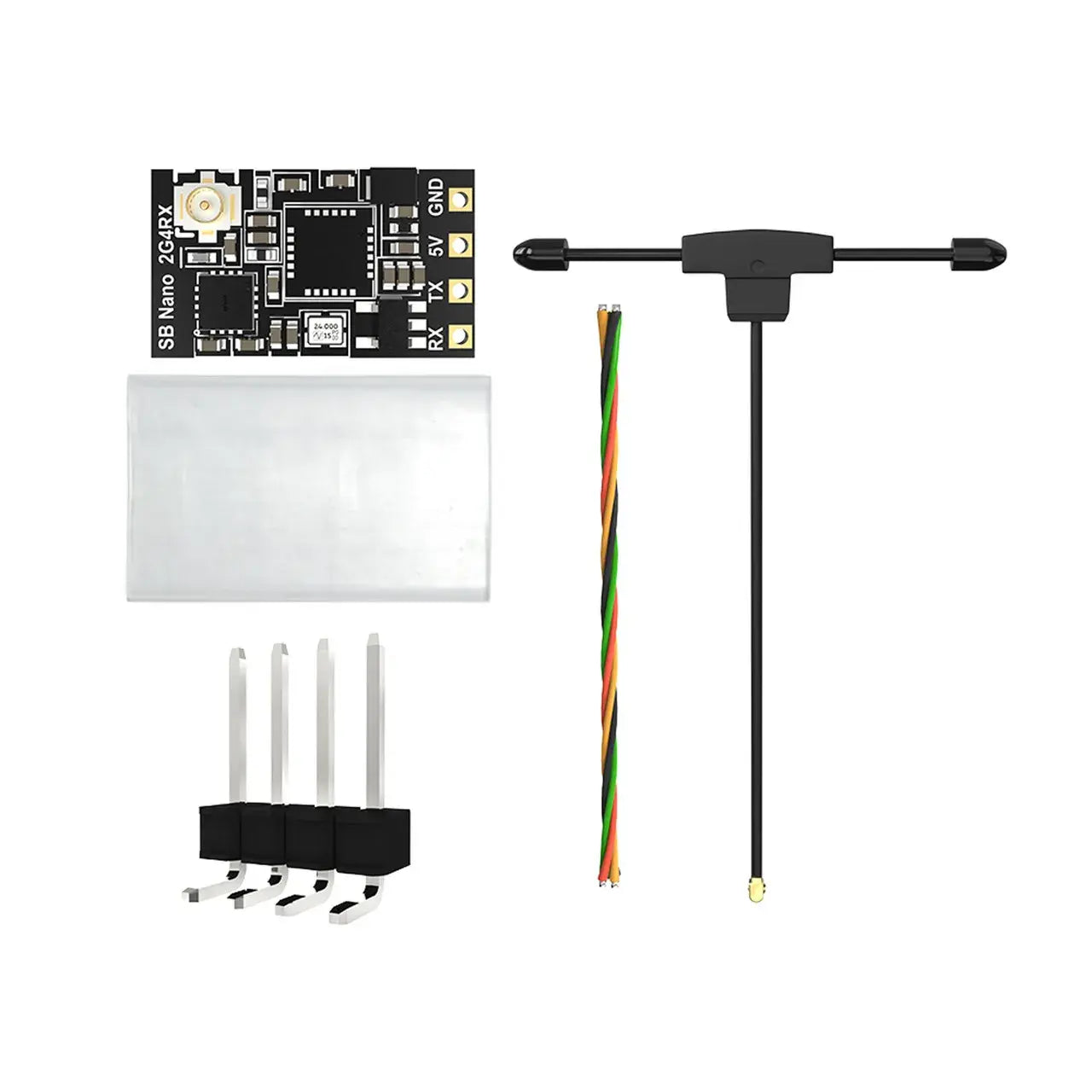

Package Includes:
1 x ELRS Nano 2.4G Dual-Band Receiver
1 x 2.4G dual-band T-antennas
1 x Heat shrink tube
1 x 4-pin silicone connect cable
