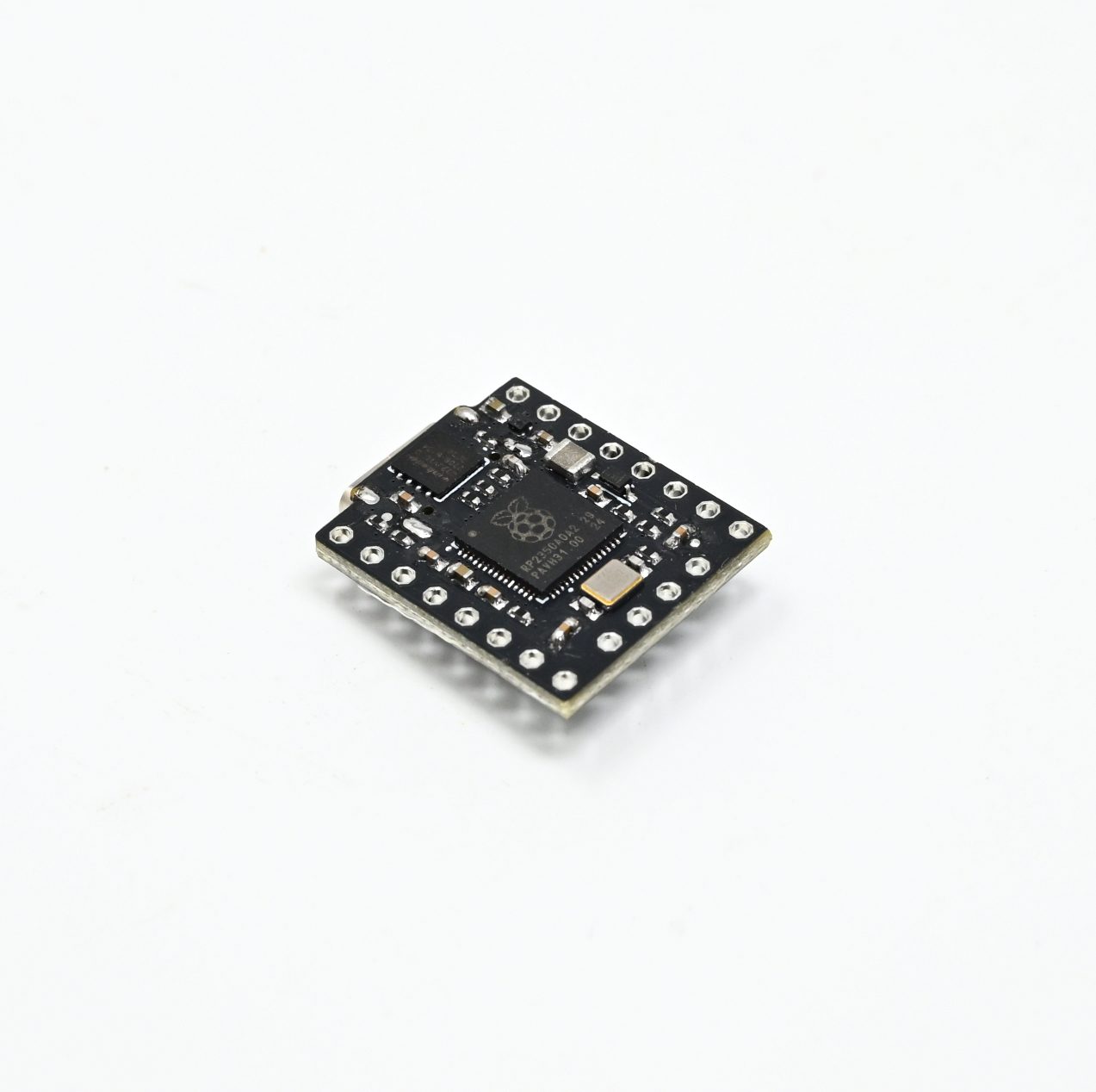

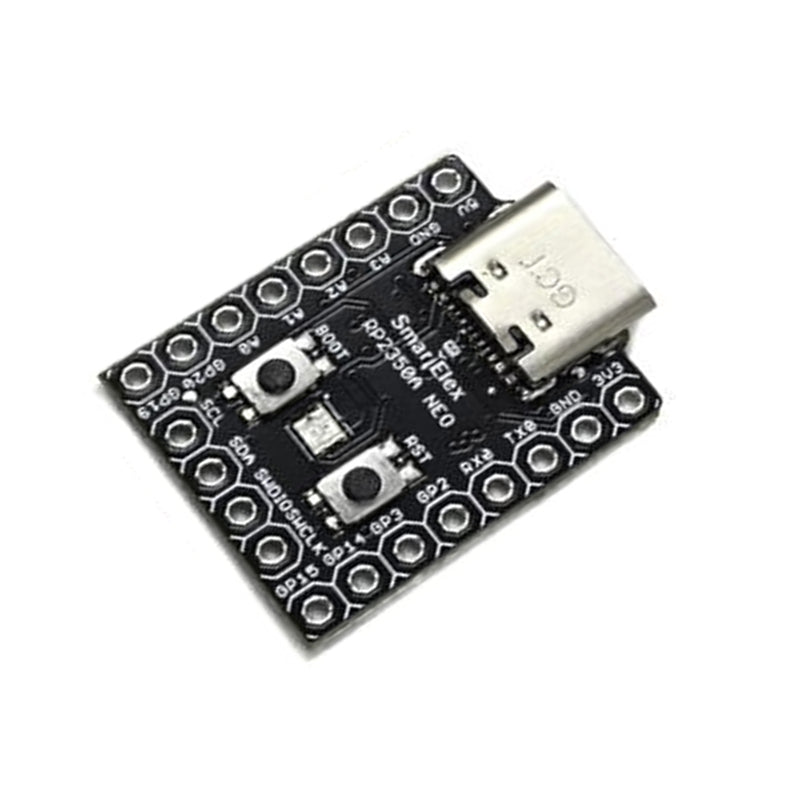

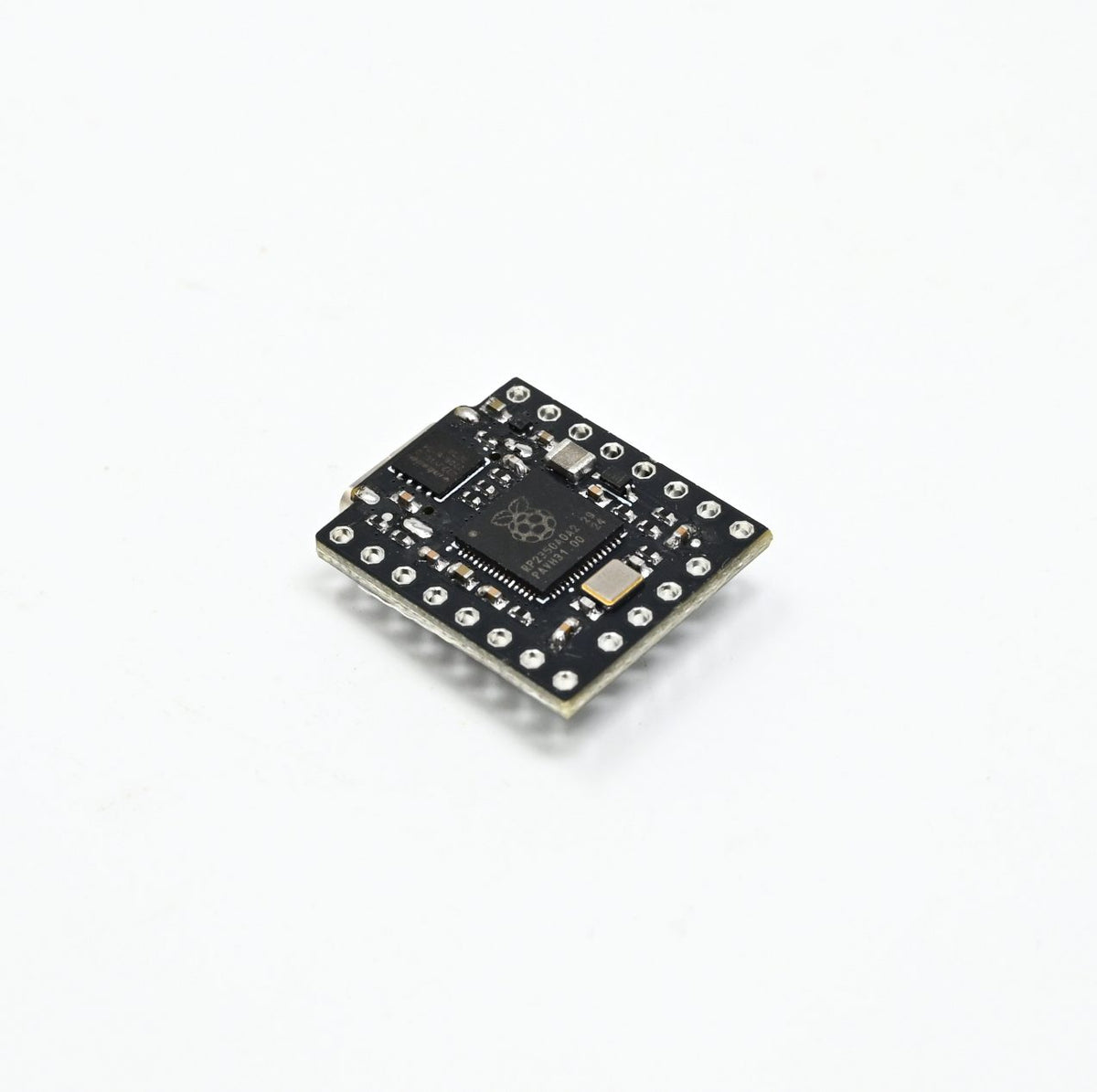

SmartElex RP2350A NEO Development Board

The SmartElex RP2350 NEO development board is based on the RP2350A microcontroller, developed by Raspberry Pi. Designed with a compact form factor, it features a split architecture, separating the USB and button circuits to minimize overall thickness and improve integration into various projects. Whether you are a beginner or an advanced developer, the SmartElex RP2350 NEO provides a versatile and powerful platform for embedded applications.

Features:

1. Microcontroller: RP2350A (Dual-core ARM Cortex-M0+ processor)
2. Compact and thin PCB design
3. Multiple GPIOs for flexible interfacing
4. Power-efficient design
5. Supports Arduino and Micro-Python programming
6. Onboard power management
7. USB Type-C connectivity
8. RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
9. Adopts unique dual-core and dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V core processor, flexible clock running up to 150 MHz
10. 520KB of SRAM, and 4MB of on-board Flash memory
11. Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
12. Castellated module allows soldering directly to carrier boards
13. USB 1.1 with device and host support
14. Low-power sleep and dormant modes
15. Drag-and-drop programming using mass storage over USB

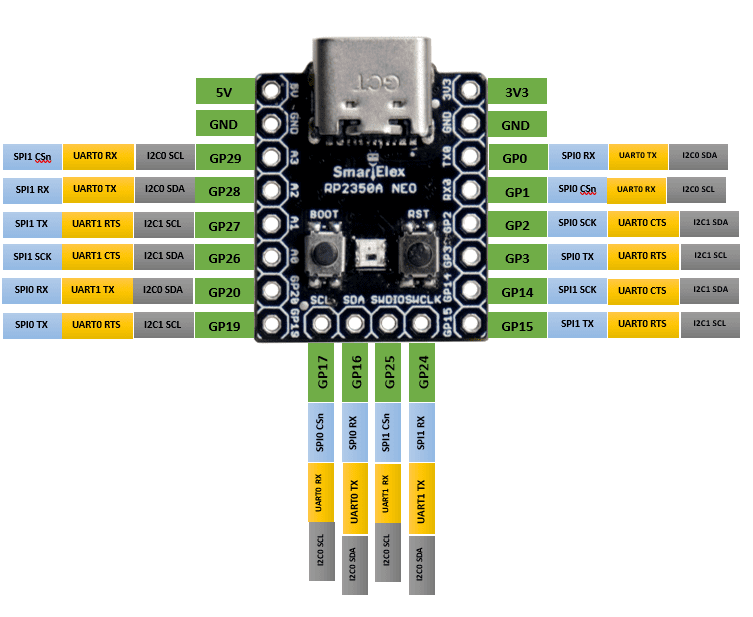

16. 28 × multi-function GPIO pins (20 via edge pinout, others via solder points)
    1. Multiple hardware peripherals
    2. SPI × 1
    3. I2C × 2
    4. UART × 1
    5. 12-bit ADC × 4
    6. Controllable PWM channel × 7

Getting Started:

1. Install USB Drivers (if required for your operating system).
2. Connect the SmartElex RP2350-NEO to your PC using a USB Type-C cable.
3. Select the appropriate board in your programming environment.
4. Upload your code using the Arduino IDE, MicroPython, or another supported tool.
5. Monitor serial output for debugging using a serial terminal.

Note: For more details about the product please go through the User manual in attachments sections

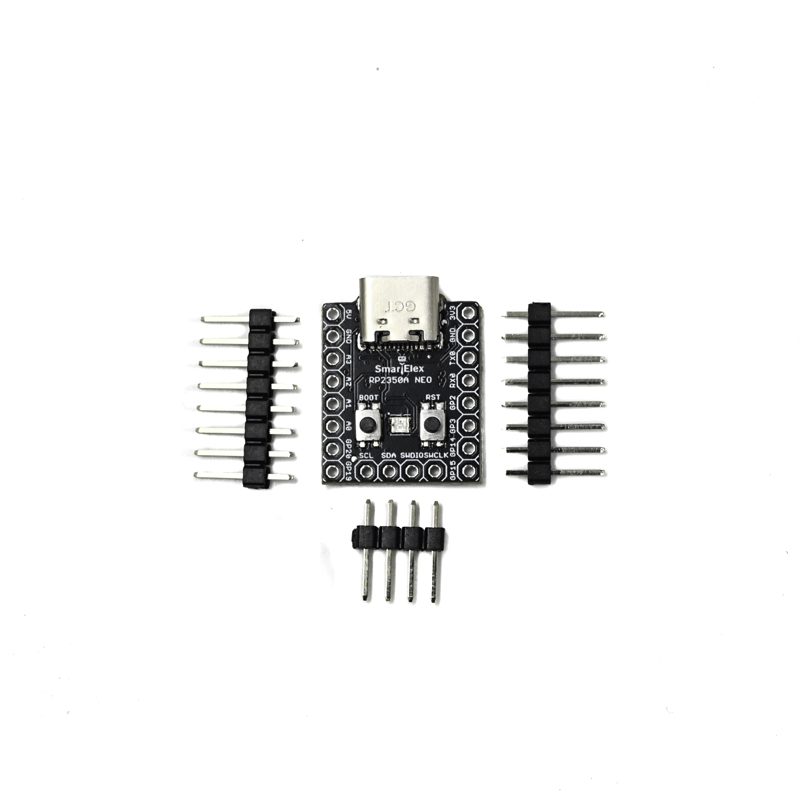

Package Includes:

1 x SmartElex RP2350A NEO Development Board

1 x Connecting Berg pins set
