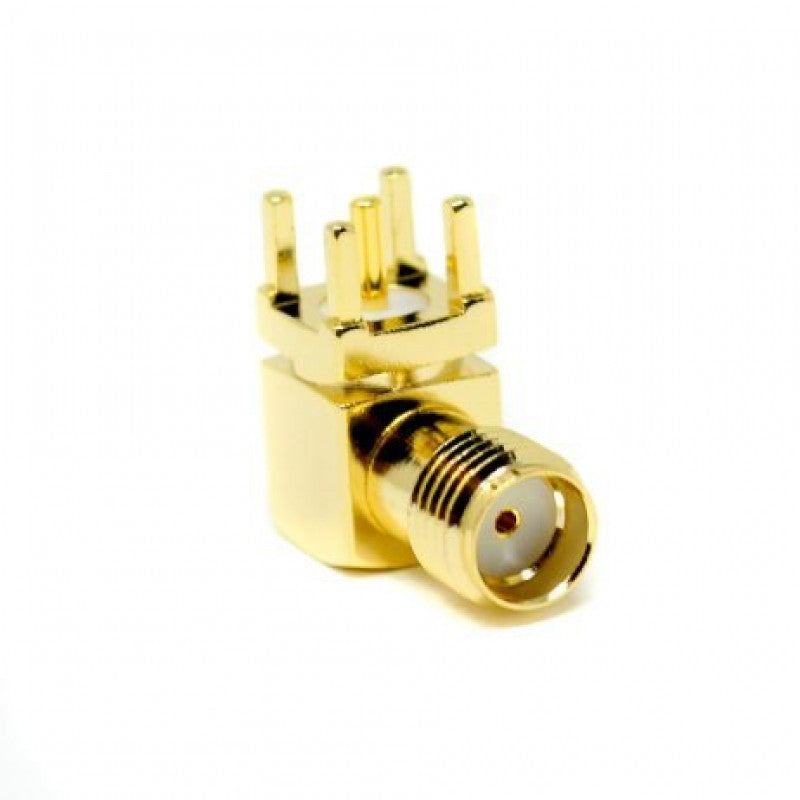

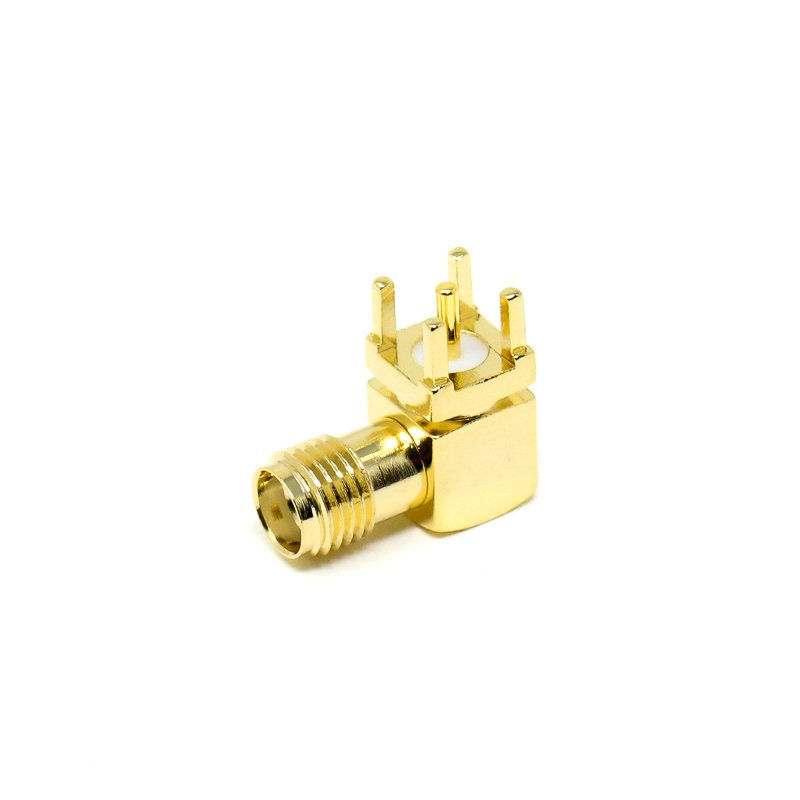

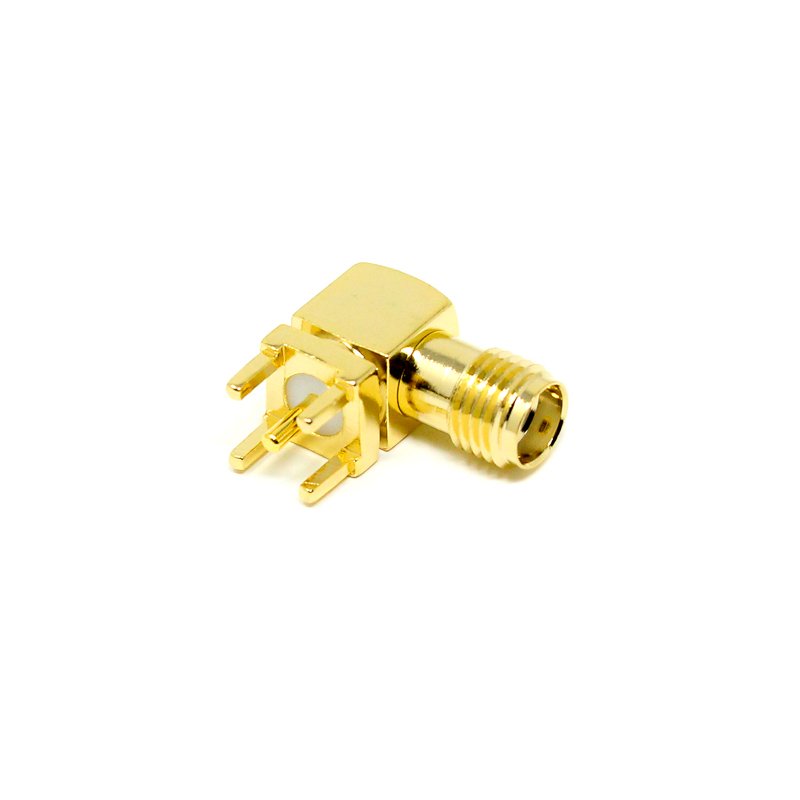

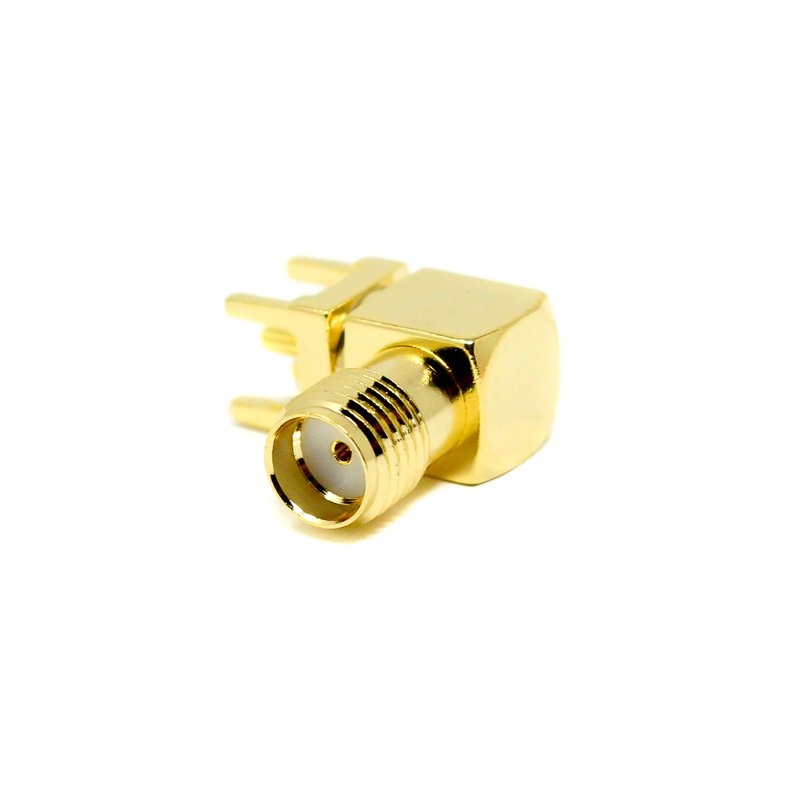

SMA Female Connector Right Angled Through-Hole for PCB Mount

Rs. 22.00 Rs. 50.00

All Prices Incuding GST

Save upto 28% in Input Credit

All Price are including GST & other applicable Taxes, For B2B GST Input Please update your GSTIN Number

Order Through WhatsApp

+91-8249931161

MON-SAT 11 AM- 6 PM

If you are facing difficulties to Place Order, feel free to Whatsapp us @8249931161, we will place order for you

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-75/-, 95/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+91-7749850441

Features:

  1. Through Hole, Pcb Mount, Jack/female, Angled/90°, 50Ω;
  2. Excellent electrical performance up to 18GHz with low reflection;
  3. Thread type coupling mechanism ensure small loss and high security in a compact design;
  4. High Quality with 30 days 100% Money back;
  5. From the OEM Original Factory, same quality with much better price.

Specifications:

Electrical Characteristics

  1. Impedance:50 ohm
  2. Frequency Range: 0~6 GHz
  3. VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
  4. Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
    750 V rms min. for RG316, RG402
    500v rms min. for RG178
  5. Working Voltage: 500 V rms max. for RG142, RG405
    375 V rms max. for RG316, RG402
    170 V rms max. for RG178
  6. Center Contact Resistance ≦ 6.0 mΩ  (Milliohms max.)
  7. Outer Contact Resistance ≦ 2.0 mΩ  (Milliohms max.)
  8. Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

Mechanical Characteristics

  1. Coupling: 1/4-36 thread
  2. Contact Retention: 15 in-lbs min.
  3. Coupling nut torque: 30 in-lbs. min.
  4. Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

  1. Environmental Characteristics: -65°C ~ +165°C
  2. Vibration: MIL-STD-202 Meth.204
  3. Corrosion resistance: MIL-STD-202 Meth. 101
