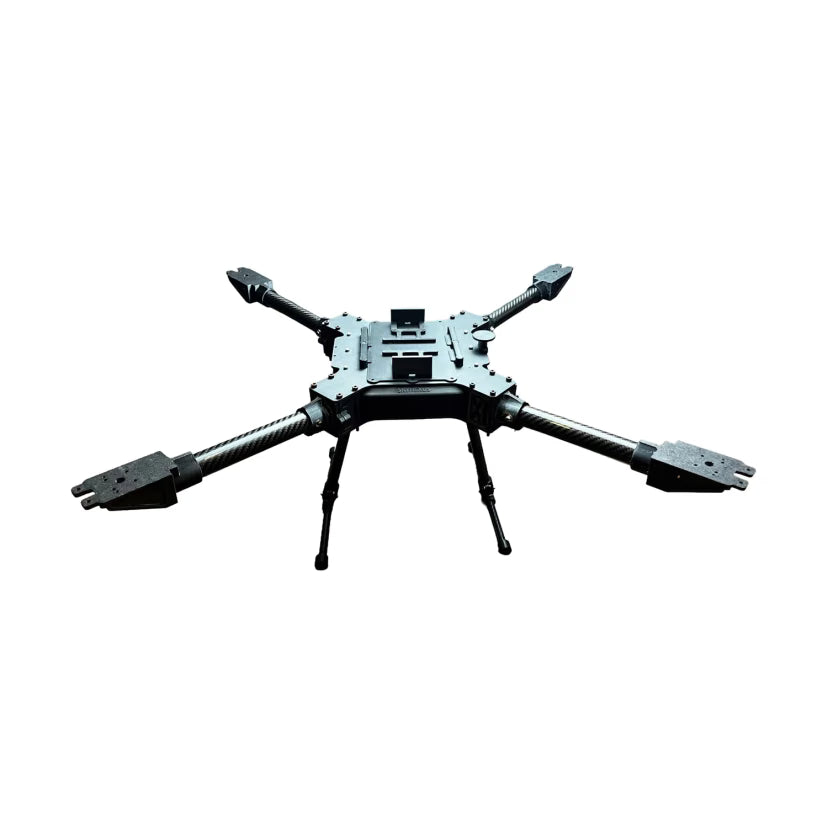

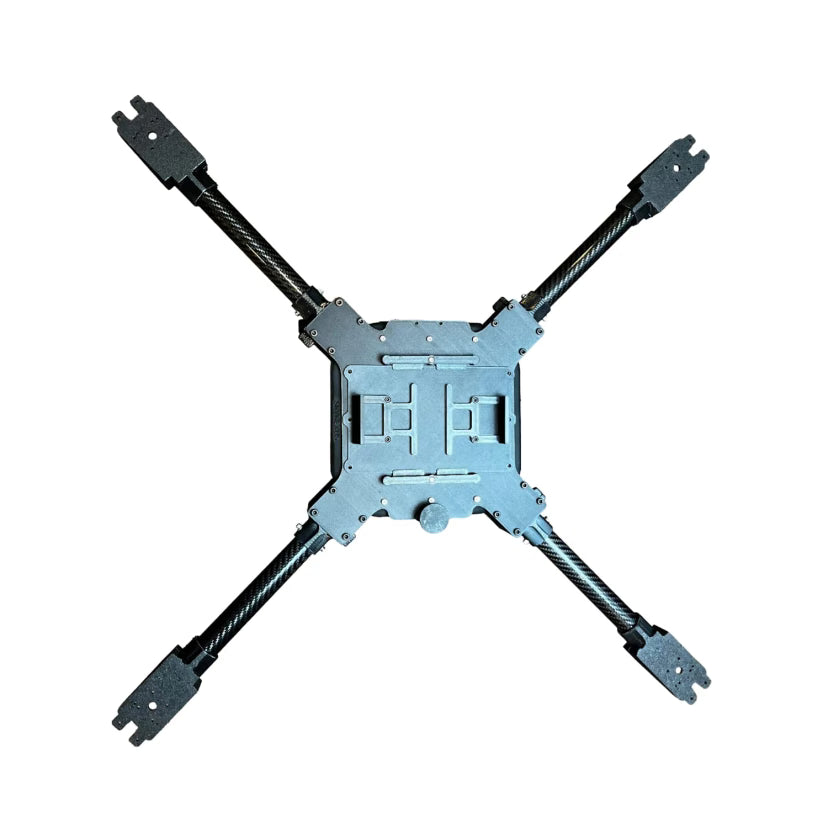

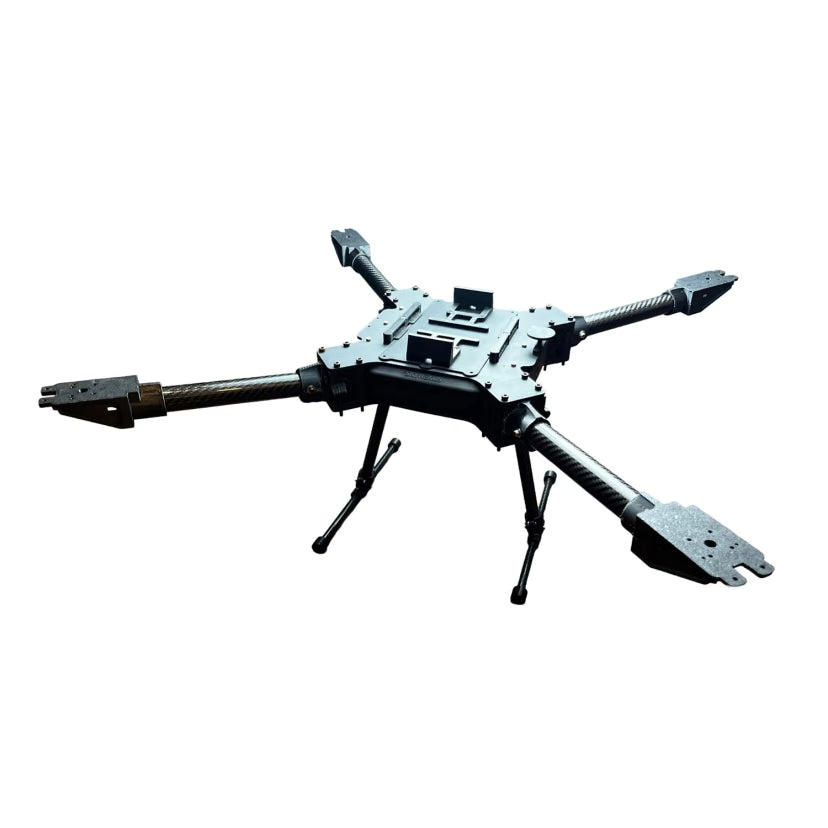

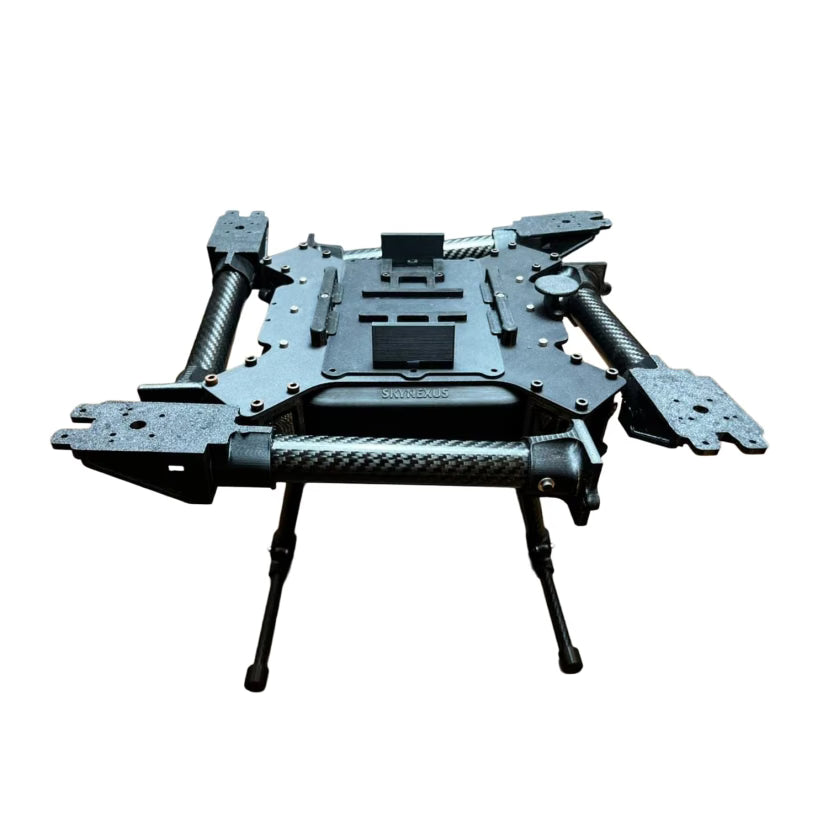

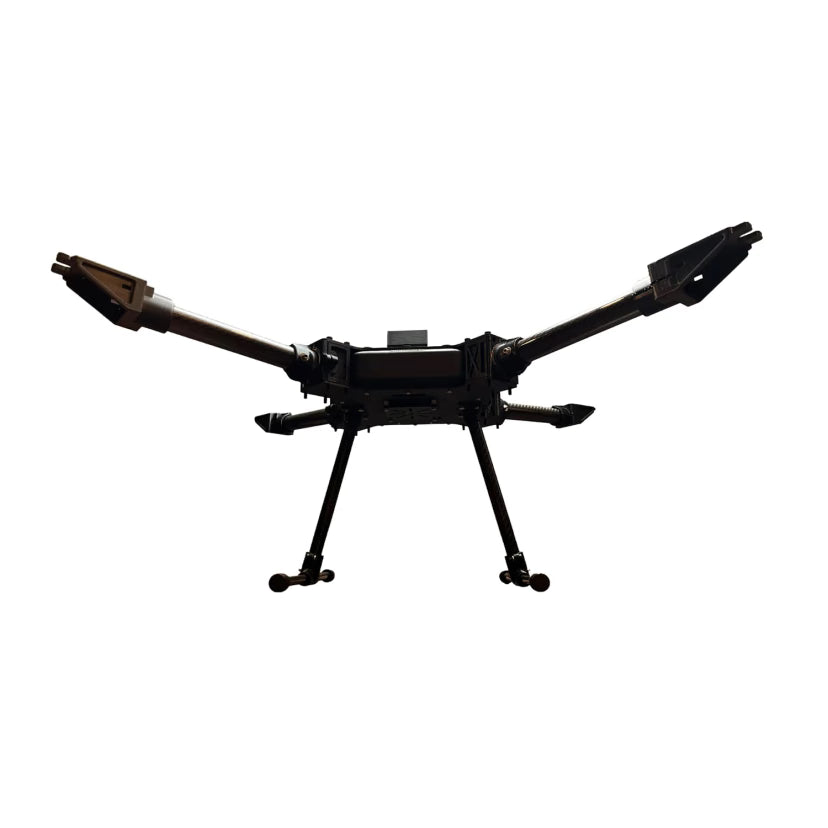

SKYNEXUS S-1 Surveillance Drone Frame

Specification:

• Wheelbase  :  820 mm
• Propeller  :  13 - 15 inch
• Landing Gear Height (mm)  :  240
• Batteries Required  :  3s to 6s Lipo
• Operating Temperature (°C) :   -10 to 60
• Max. Takeoff Weight (kg) :    6
• Compatibility  :   Tmotors (380kv)

Features:

• Strong and lightweight hybrid body using ABS, nylon, and carbon fibre
• 820mm wheelbase supports stable flight with heavy payloads

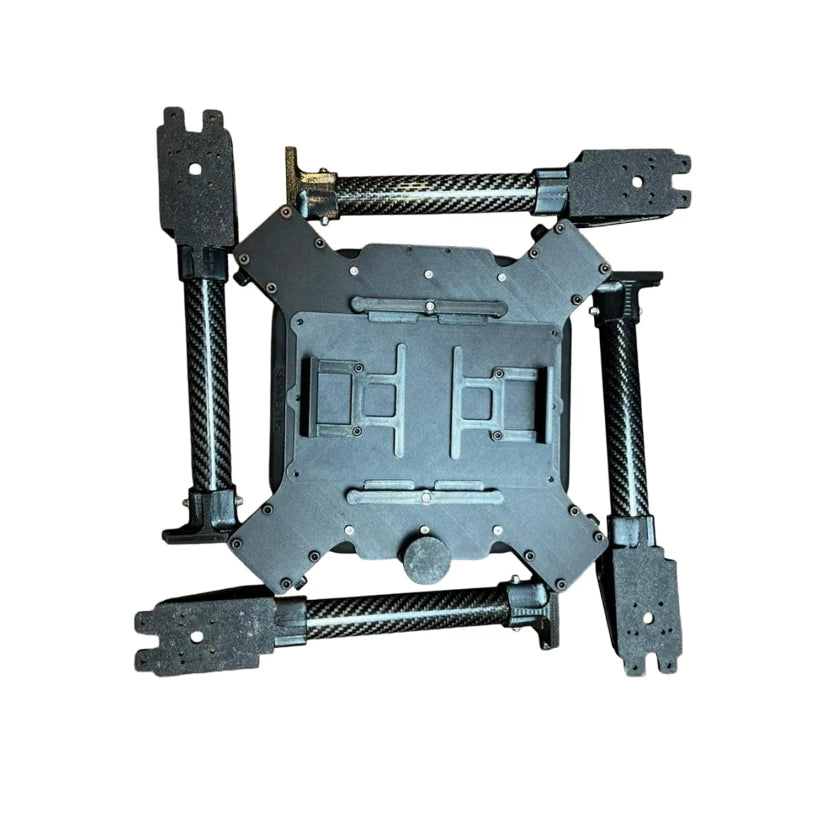

• Horizontal folding arms for easy transport and storage
• Compatible with 13–15 inch propellers and T-Motor 380KV motors
• Supports 3S to 6S LiPo batteries with XT90 connector
• Designed for professional applications like surveillance and mapping

The SKYNEXUS Surveillance Drone Frame S-1  is a robust, professional-grade platform designed for demanding aerial operations. Built with a combination of high-quality ABS plastic, nylon, carbon fibre, and pure carbon fibre, it offers exceptional strength while keeping weight low at just 855 grams. horizontal folding arms and 820mm wheelbase support 13–15 inch propellers and powerful motors, making it ideal for heavy payload missions up to 6 kg. With wide compatibility for 3S–6S LiPo batteries, up to 60A ESCs, and professional accessories like GPS mounts and PDB, this frame is perfectly suited for agriculture, surveillance, surveying, and rescue operations.

Package Includes:

1 x SKYNEXUS S-1 Surveillance Drone Frame

1 x Landing Stand

1 x Connecting Accessories set
