The MK15 HDMI COMBO is a versatile multimedia device that combines HDMI and audio functionalities. It features multiple HDMI inputs and outputs, allowing for seamless connectivity with various devices like gaming consoles, laptops, and TVs. This device supports high-definition video and audio transmission, making it perfect for home entertainment setups and professional AV applications. With its user-friendly interface and compact design, the MK15 HDMI COMBO is a convenient solution for managing and enhancing your multimedia experience.

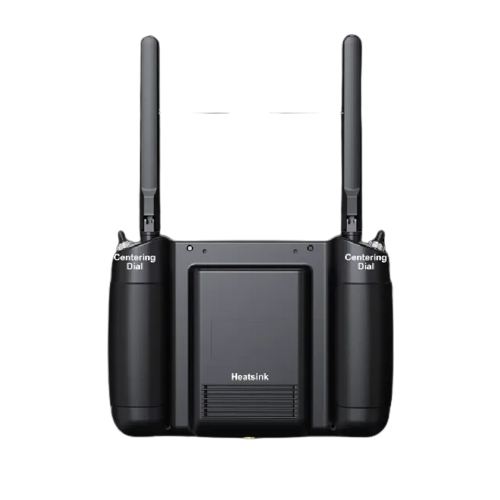

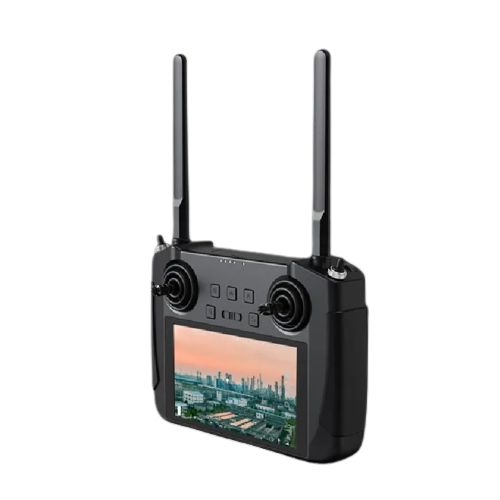

Remote Controller

Monitor: 5.5-inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 2 G RAM & 16 G ROM
Dimension (antenna overlapped): 189 x 138 x 41 mm
Weight: 850 g
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Battery Life: 15 hours

Interface & Ports:

– Charging: Type-C
– Firmware Upgrade: Bottom DATA (4-Pin)
– 4G/LTE Network: SIM Card Slot
– External Storage: TF Card Slot
– Tripod Connect: 1/4-inch Screw Hole
– Video Output: Standard HDMI
– External RTK: Top DATA (4-Pin)
– Data Transfer: USB-A

Waterproof Level: IP53
Working Temperature: -10 to 55℃

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:

– SBUS: 3-Pin
– Datalink (to FC): UART 4-Pin
– PWM Channel 1 to 5: 6-Pin
– Video Input: Ethernet 8-Pin
– Firmware Upgrade: Type-C

Dimensions (antenna excluded): 75 x 48 x 17 mm
Weight (antenna excluded): 116 g
Antenna Gain (standard omni): 5 dBi
Power Input: 14.8 to 58.8 V (4S to 14S)
Working Temperature: -10 to 55℃

Features:

• Multiple HDMI inputs and outputs.
• Supports high-definition video and audio.
• Versatile connectivity for various devices.
• Ideal for home entertainment and professional AV setups.
• User-friendly interface.
• Compact and convenient design

Package includes:

1 x SIYI MK15 HDMI COMBO RC Transmitter

2 x Standard Omni Antenna

2 x Long Range Antenna

1 x MK15 Air Unit

2 x Standard Omni Antenna

1 x Air Unit HDMI Input Converter

4 x Cables

1 x 20W PD Fast Charger (Type-C, US Plug)

1 x PD Fast Charging Cable (Type-C to Type-C)

1 x Type-C to USB-A Converter

1 x Carrying Case
