HM30 is a 30KM level 150ms low latency 1080p full HD video link based on the latest image transmission technology which is independently developed by SIYI Technology.
Abundant features and powerful performance make it a commonly applied device of reliable FPV view and solid control on FPV planes, commercial drones, unmanned vehicles and boats, and robotics.
Specification:
- Max Transmission Range: 30 kilometers (unobstructed, free of interference)
- Channels: 16 communication channels
- Compatible Flight Controllers:
- Pixhawk Based Flight Controller or APM
- SN-L+ Fixed Wing Flight Controller
- MATEK H743 / F405 or any flight controllers with UART datalink output
- Compatible Android GCS (standard RTSP video stream):
- SIYI FPV
- QGroundControl
- Compatible Windows GCS (standard RTSP video stream):
- QGroundControl
- Mission Planner

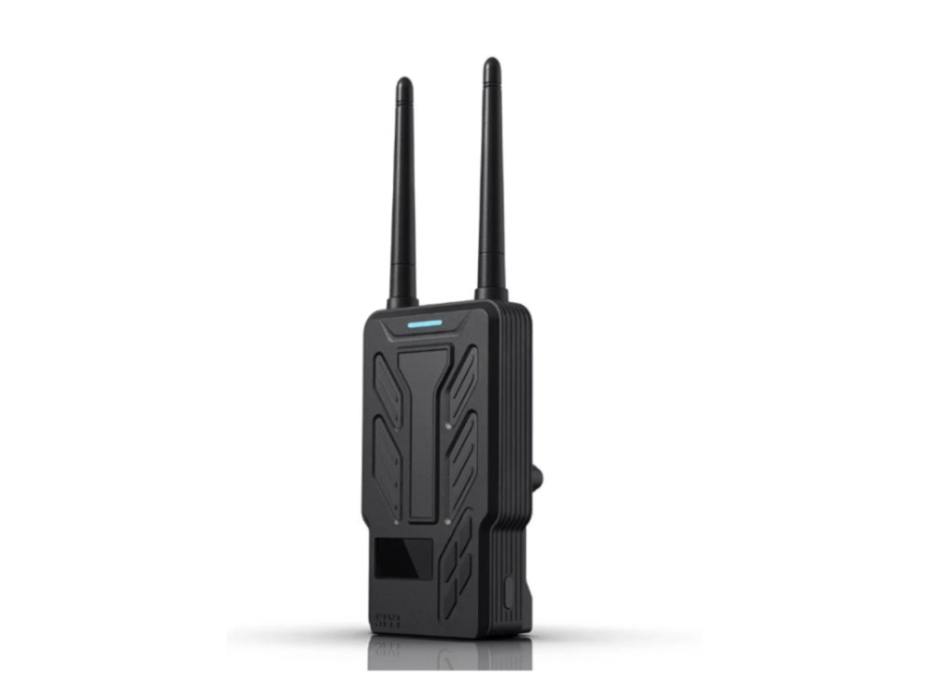

Ground Unit:
- Monitor Display: 0.96-inch OLED Screen
- Dimensions (antennas and battery excluded): 109 x 61 x 28 mm
- Weight (antenna and battery excluded): 132 g
- Compatible Battery Type:
- NP-F550 / F750 / F770 / F950 / F970 series quick release batteries (HM30 Fly More Combo comes with NP-F750 battery)
- Fast Charging Protocol: PD 30W
- Antenna Gain:
- Standard Omni Antennas: 5 dBi
- Standard Long Range Antennas: 11 dBi
- Power Consumption: 5 W
- Interface & Ports:
- S.Bus / PPM RC Signal Input: RC (GH1.25 4-Pin)
- Datalink Output: UART (GH1.25 4-Pin)
- Ethernet Port: LAN (GH1.25 4-Pin)
- Power Output: VCC (GH1.25 4-Pin)
- USB Video Output / Charging / Firmware Upgrade / USB WiFi: Type-C
- Power Input: PWR (XT30)
- Tripod Connector: 1/4-inch Screw Hole
- Waterproof Level: IP53
- Working Temperature: -10 to 50℃

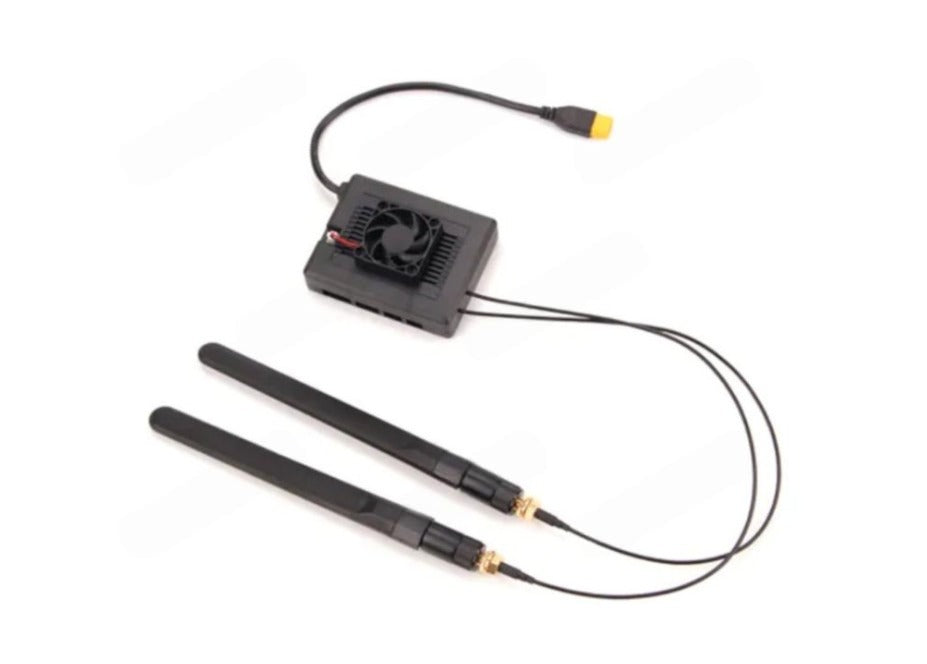

Air Unit:
- Signal Output: 16 channels of S.BUS, 5 channels of PWM
- Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
- Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
- Weight (antenna excluded): 74 g
- Antenna Gain (standard omni): 5 dBi
- Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
- Working Temperature: -10 to 50℃

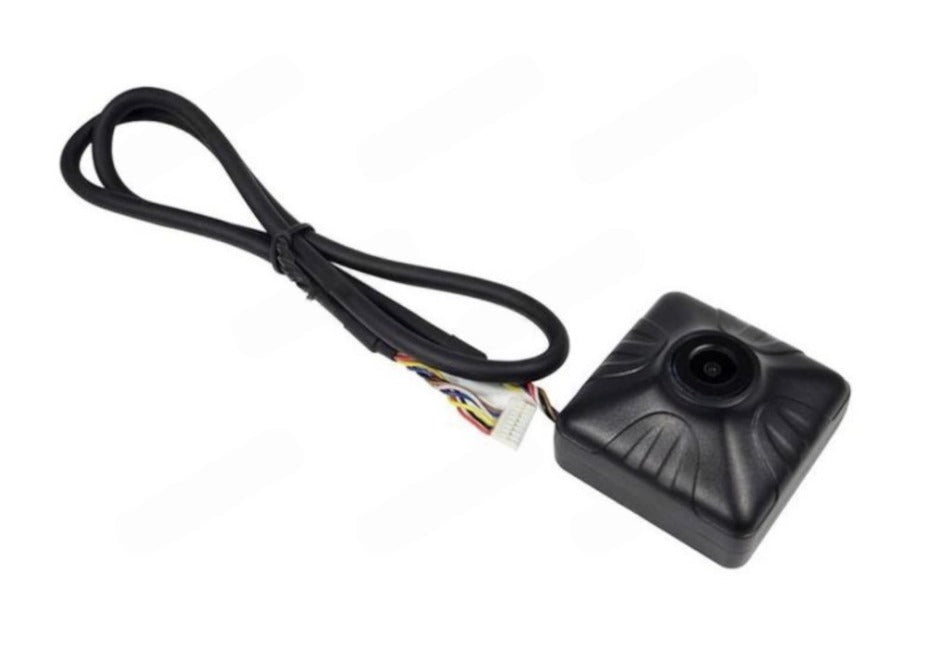

FPV Camera:
- Frame & Bitrate: 720p 30fps 1.57Mbps H.265 (or 1080p 30fps 2.3 Mbps H.265 only as the reference to DIY configuration)
- Sensor: 1/2.9" CMOS
- Effective Reolution: 3 MP
- Lens: 3.2 mm, F/2.8
- Camera Angle: FOV 105°
- Dimensions: 42 x 42 x 25 mm
- Weight: 23 g
- Cable Lens: 1000 mm
- Working Temperature: -10 to 55℃

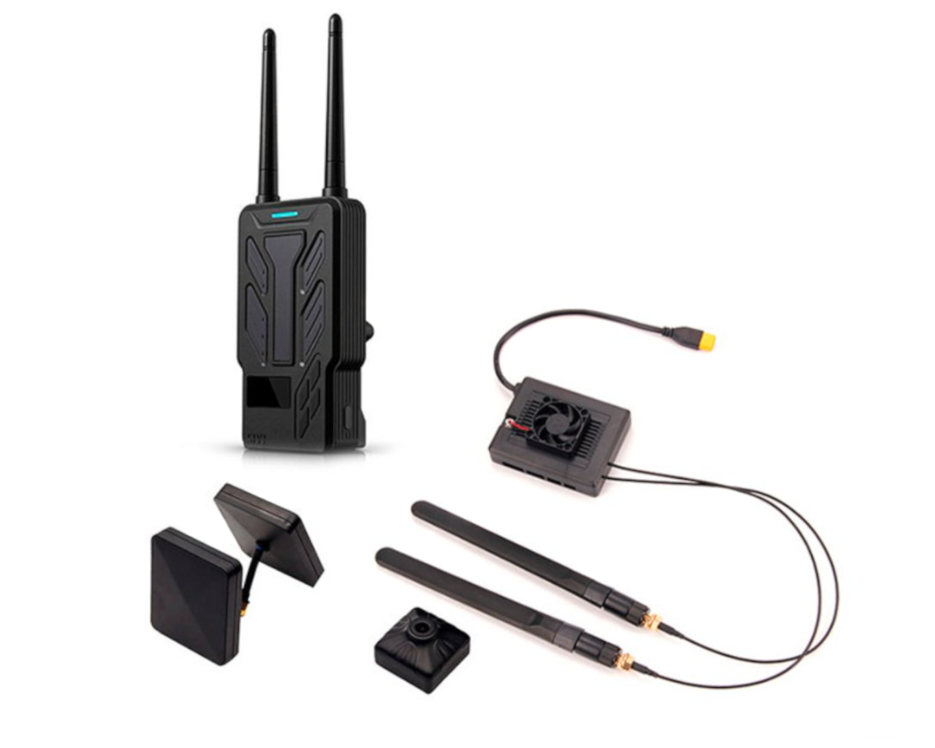

Package Include:
- HM30 Standard Combo
- HM30 Standard Combo
- HM30 Ground Unit
- HM30 Air Unit
- R1M Recording FPV Camera
