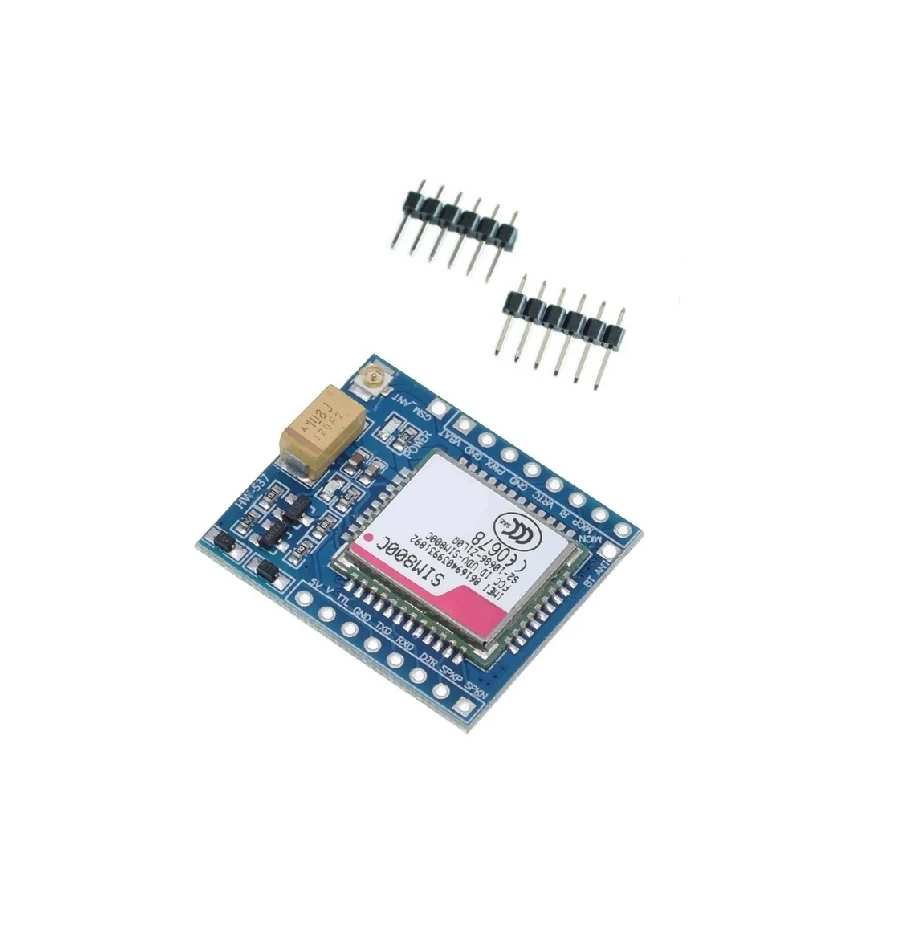

SIM800C GSM GPRS Module 5V/3.3V TTL Development Board IPEX with Bluetooth for STM32 C51 (with Antenna)
SIM800C GSM GPRS Module 5V/3.3V TTL Development Board IPEX with Bluetooth for STM32 C51 (with Antenna)
Regular price
Rs. 399.00
Regular price
Sale price
Rs. 399.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Technical Details
- Module: GSM Module GPRS SMS Voice Phone Development Board SIM800C
- Communication: GSM, GPRS, SMS, Voice
- Chip: SIM800C
- Connectivity: Quad band (850/900/1800/1900MHz)
- Control Interface: AT commands via serial port
- Power Input: DC 5V or VBAT (lithium battery)
- MCU Level Compatibility: 5V / 3.3V TTL logic
- Bluetooth: Supported
- Logic Converter: 5V/3.3V compatible

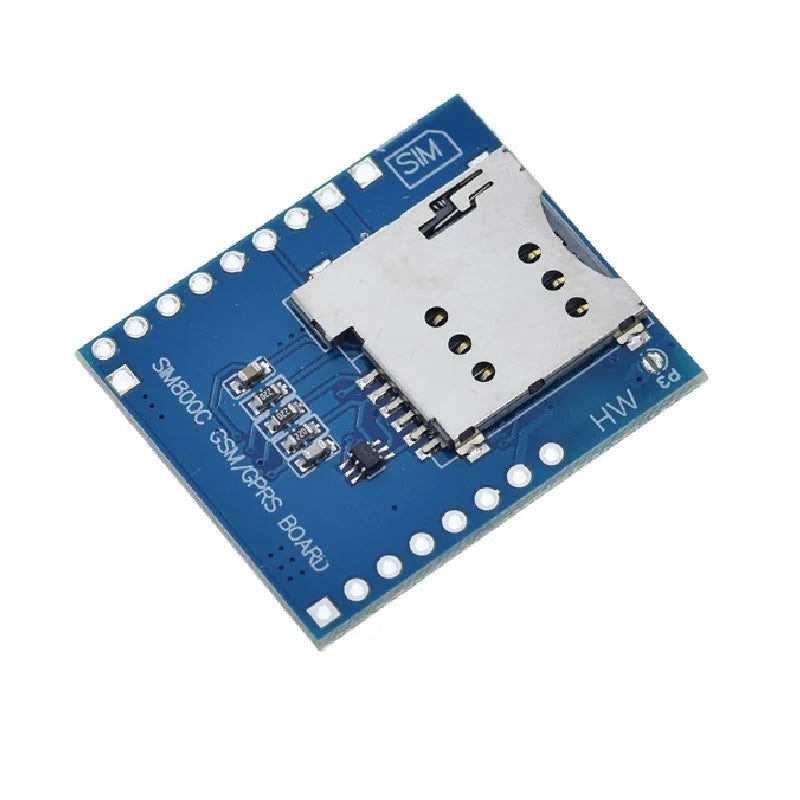

- SIM Card Slot: On-board

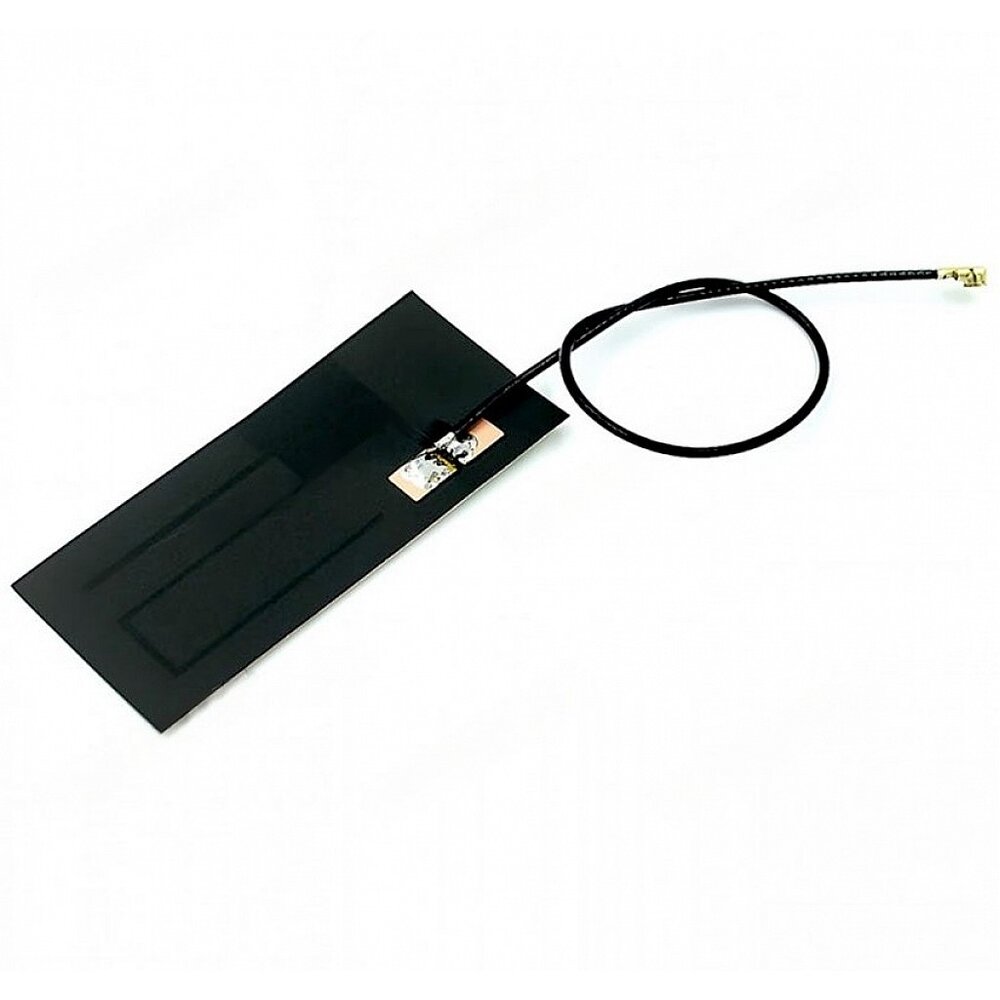

- Antenna: IPEX interface
- Physical Dimensions: 31mm x 27mm
- Weight: 8g

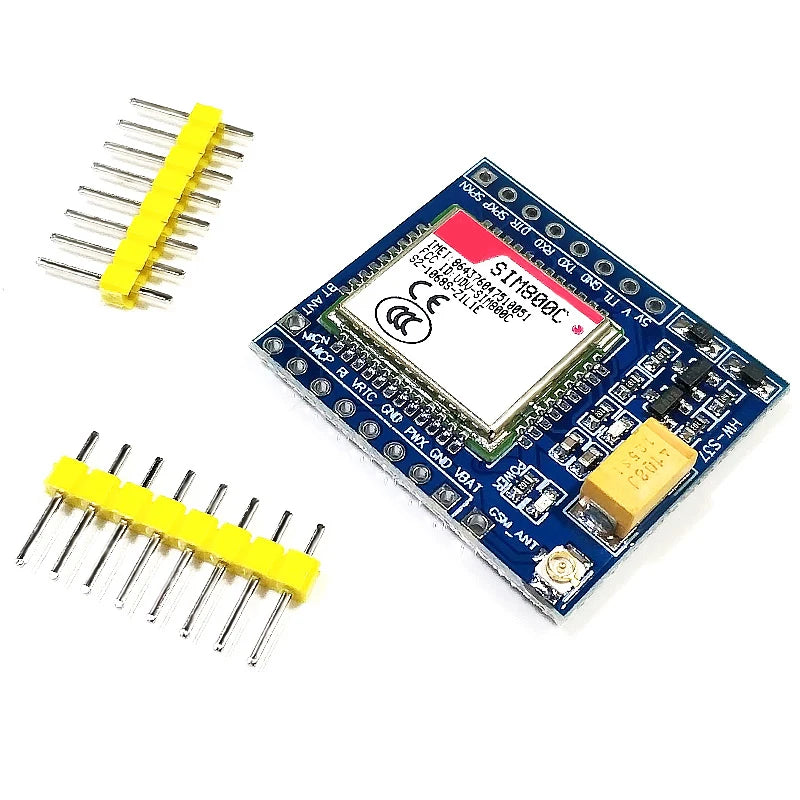

Pin Description
- 5V: power supply pin, the only input DC5V, used to power the board.
- V_TTL: access control board microcontroller core target voltage of 5V / 3.3V (according to its own microcontroller is much to distinguish – kernel v), this pin is used to convert the GSM module board TXD and RXD for the corresponding TTL logic.
- GND: power supply ground
- TXD: Send pin serial port module, TTL level (not directly connected to RS232 level)
- RXD: receive pin serial port module, TTL level (not directly connected to RS232 level)
- DTR: Data Terminal Ready
- SPKP: Core Audio output pin
- SPKN: Core Audio output pin
- MICN: Core Audio input
- MICP: Core Audio input
- RI: Ring core pin tips
- VRTC: RTC pin external battery
- GND: power supply ground
- PWX: This pin can turn down or turn off the module
- GND: power supply ground
- VBAT: lithium battery input pin, 3.3v-4.4v
