SG3525 PWM Controller Module Adjustable Frequency 100HZ-100KHZ
SG3525 PWM Controller Module Adjustable Frequency 100HZ-100KHZ
Regular price
Rs. 139.00
Regular price
Sale price
Rs. 139.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption

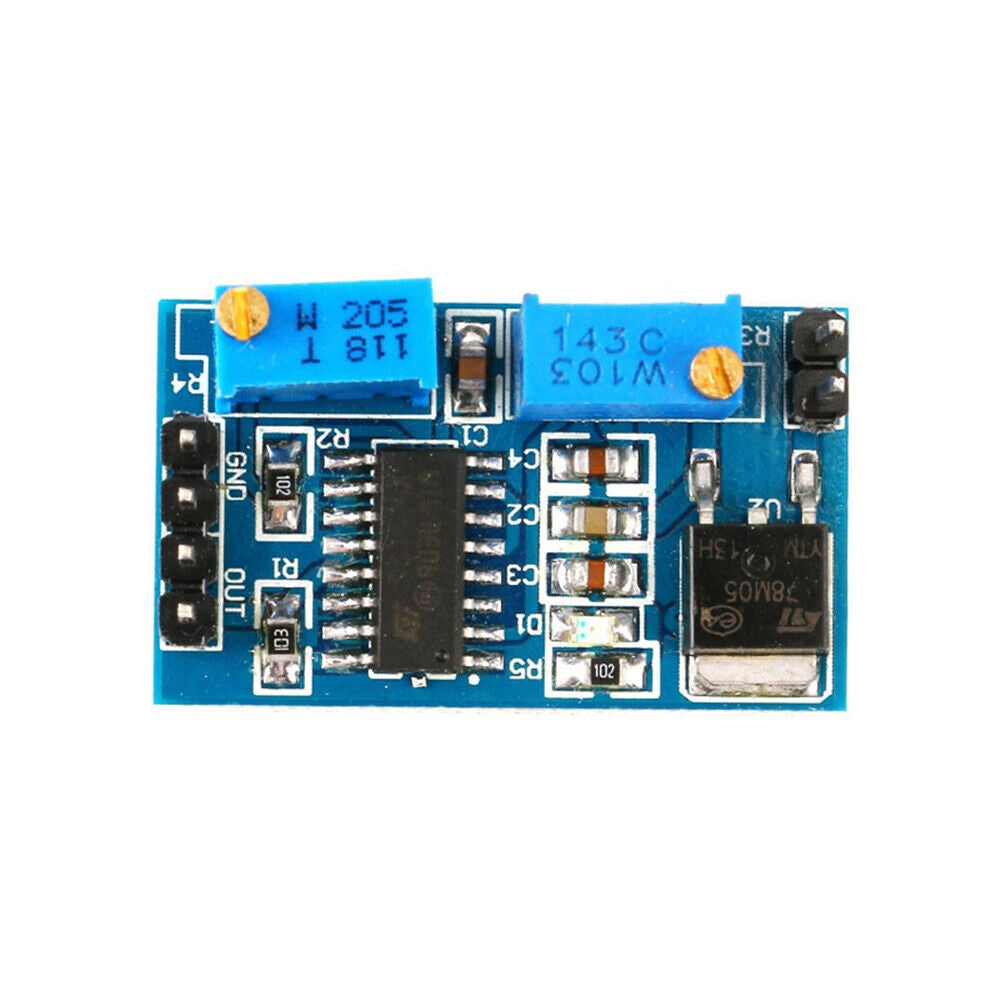

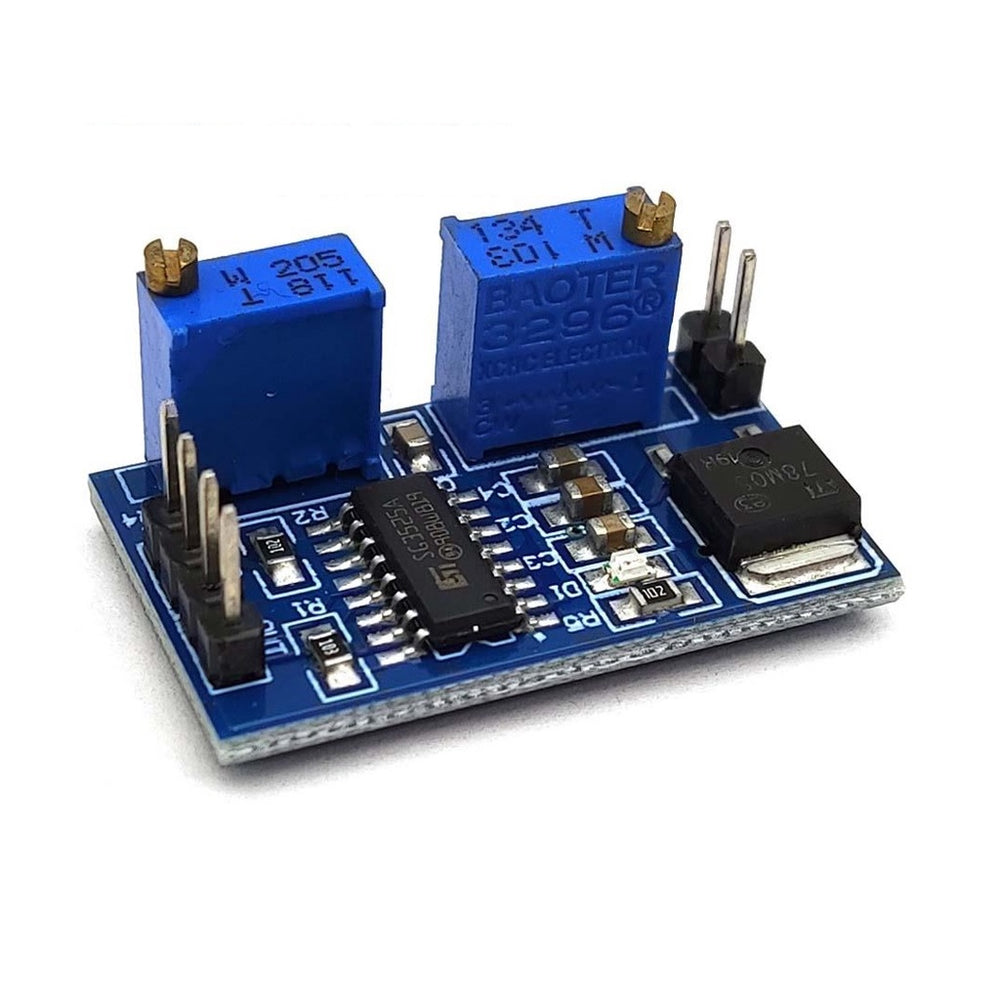

SG3525 PWM Controller Module has an onboard SG3525A PWM control chip. It has an onboard 78M05 regulator chip, providing a reliable reference voltage. It also has two precision adjustable resistors, R3 controls the duty cycle, and R4 controls the frequency.
Features:
- On-board power indicator
- Duty cycle: 0-100% adjustable
- Applications include switching power supplies, motor control applications, etc.
Specifications:
- Frequency Range: 100HZ-100KHZ adjustable
- Working Voltage: 8 - 12 V
- Length: 31mm
- Height: 13mm
- Width: 18mm
