RS232 to TTL Serial Port Converter Adapter Communication Module - Unsoldered
RS232 to TTL Serial Port Converter Adapter Communication Module - Unsoldered
Regular price
Rs. 159.00
Regular price
Sale price
Rs. 159.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption

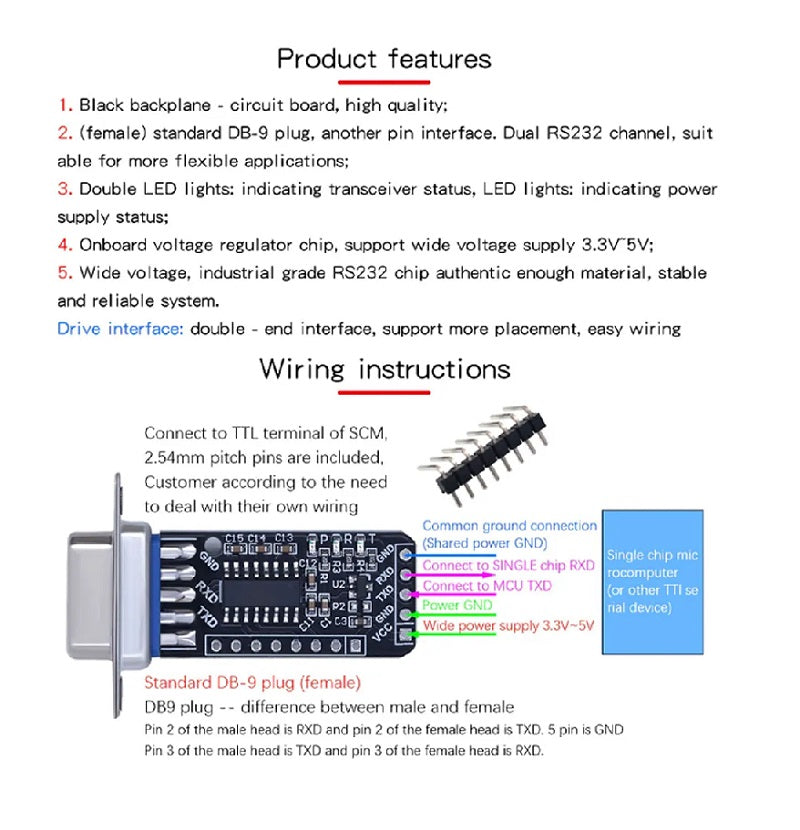

This RS232 to TTL Serial Interface Module is a board with the MAX3232 transceiver integrated circuit (IC). It facilitates serial communication between TTL and RS232 ports by providing the necessary electrical signal conversion. These boards usually have a DB9 connector soldered at one end and four header pins with jumper cables at the other end. The jumper cables enable the user to connect the wires to a breadboard or a microcontroller project board, whilst the DB9 connects directly to a COM port of a computer.
Features:
- It is widely used in radio modification, phone flash, XBOX360 flash, GPS, vehicle detection, DVD flash, and hard disk repair set-top box upgrade.
- It can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, and N+-2EC MCU.
- Pre-assembled compact-size board.
- Suitable for use with most microcontrollers.
- Operates up to 250 kbit/s.
Package Includes:
1 x RS232 to TTL Serial Port Converter Adapter Communication Module - Unsoldered
