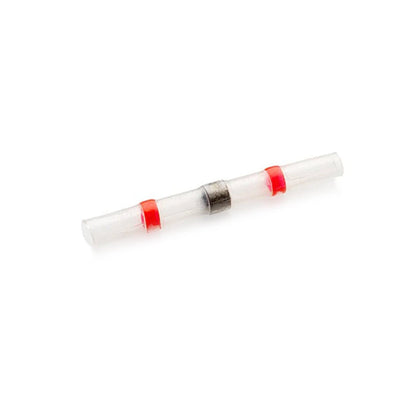

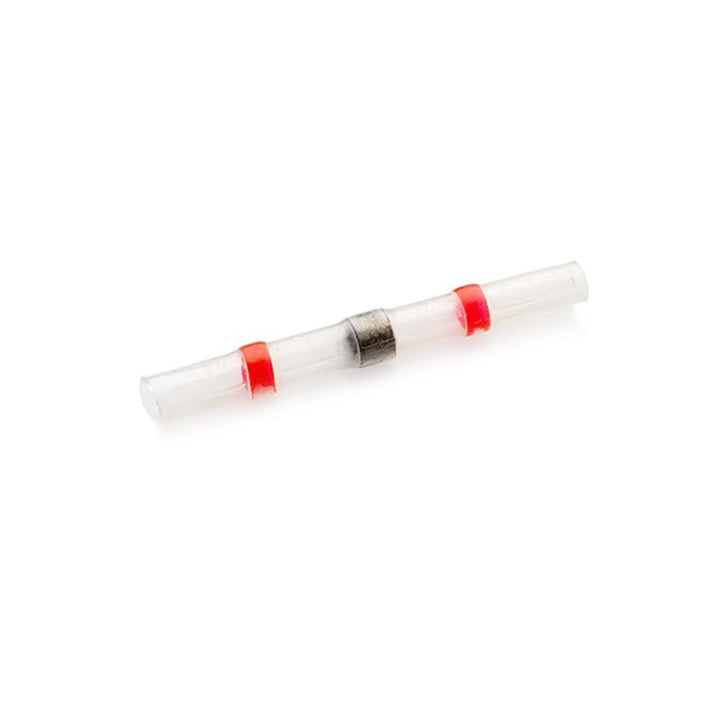

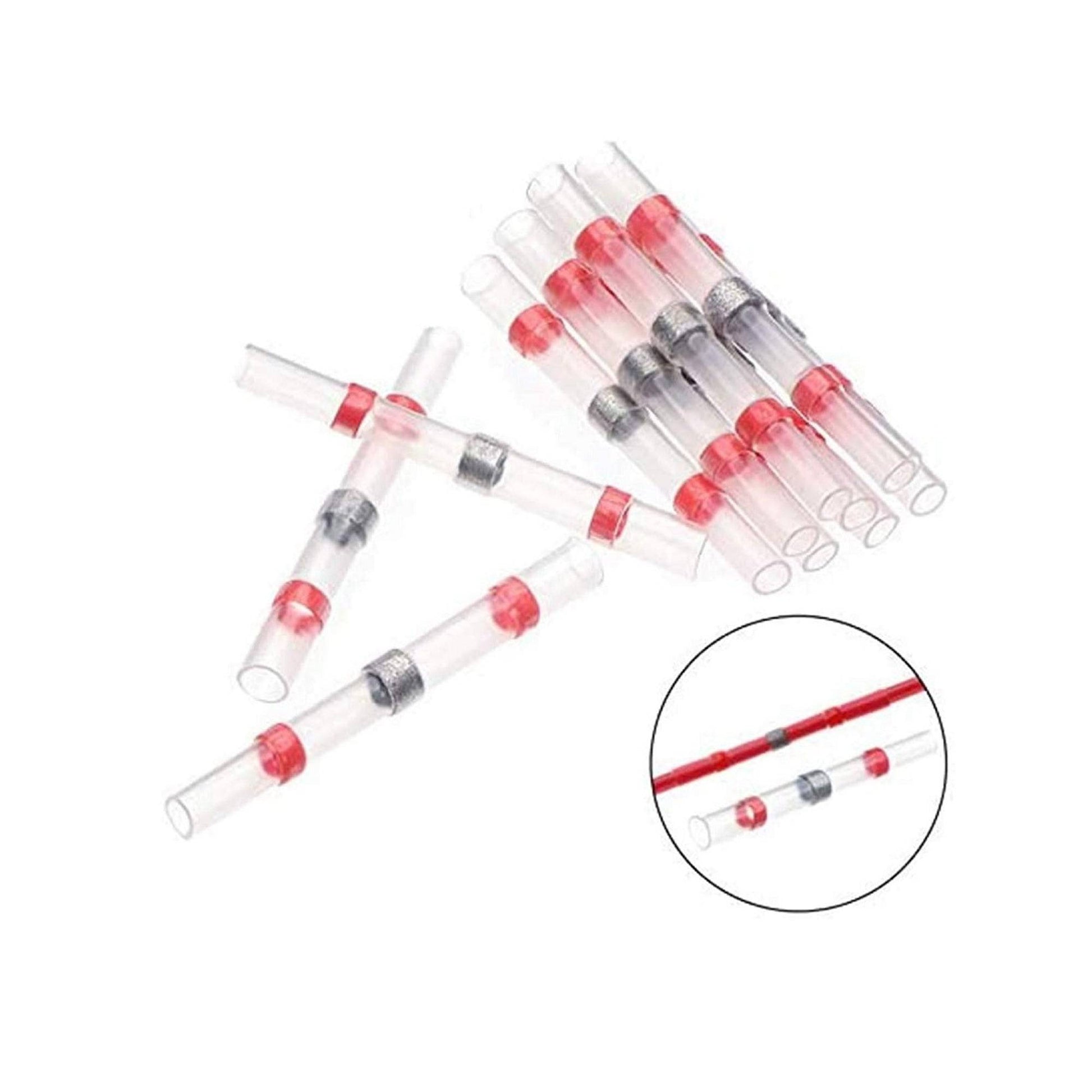

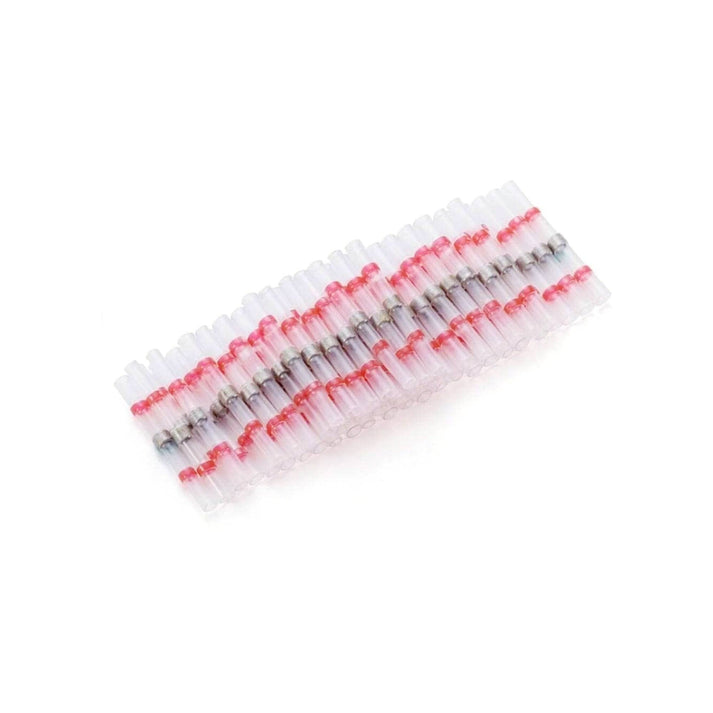

The Heat Shrink Sleeve promotes waterproof, corrosion-proof safe Insulation. Secure wiring with waterproof (IP67) heat-shrinking insulation for perfect and corrosion-proof insulation. The built-in low heat melt waterproofing solution and soldering ring encourage a safe and strong seal without compromise. Do away with the tape-based insulation.

Specifications:

• Shrink Ratio: 2:1
• Shrink Ratio: 2:1
• Tubing: Polyolefin
• Plating: Tin
• Allowed Wire Size: 22 ~ 18 AWG
• Terminal Body: Copper
• Operating Temperature: -55 ~ 125°C
• Starting temperature of solder melt: 138℃
• Minimum full recovery temperature: 160℃
• Shrink Temperature: 80°C
• Colour: White-Red
• Diameter: 3 mm
• Length: 40 mm

Features:

• Heat Shrink Sleeve is easy and fast to use, has single-tube construction, resistant to water and dirt (IP67).
• Lead-free solder provides a strong and durable connection, without crimping.
• High-quality polyolefin heat-shrinkable insulation provides complete terminal integrity.
• A transparent  Heat Shrink Sleeve enables visual inspection of the connector.
• Heat flux should be used to solder the cables together and seal the connection permanently.

Package Included:

1 x Red Waterproof Heat Shrink Solder Seal Wire Connectors
