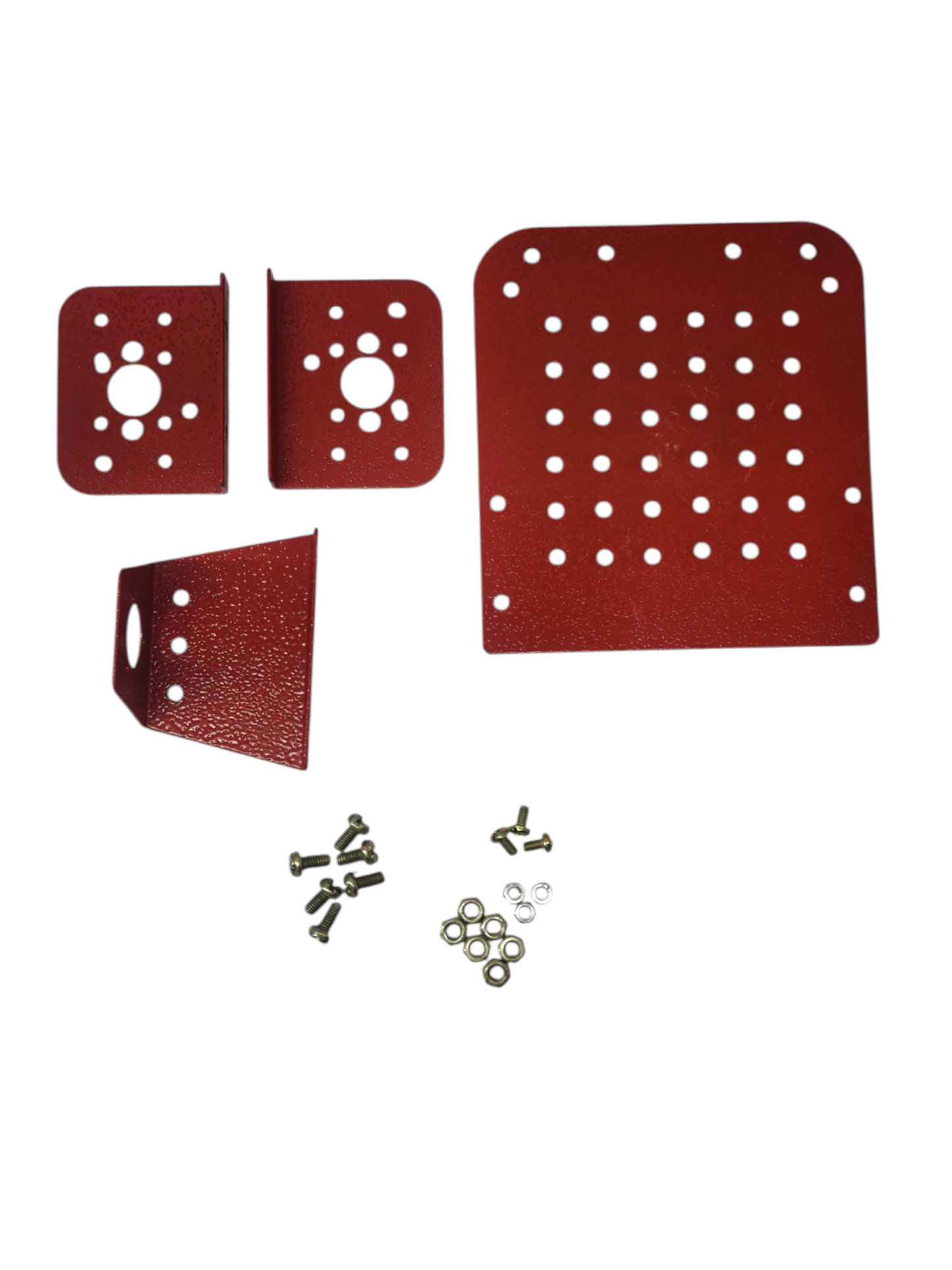

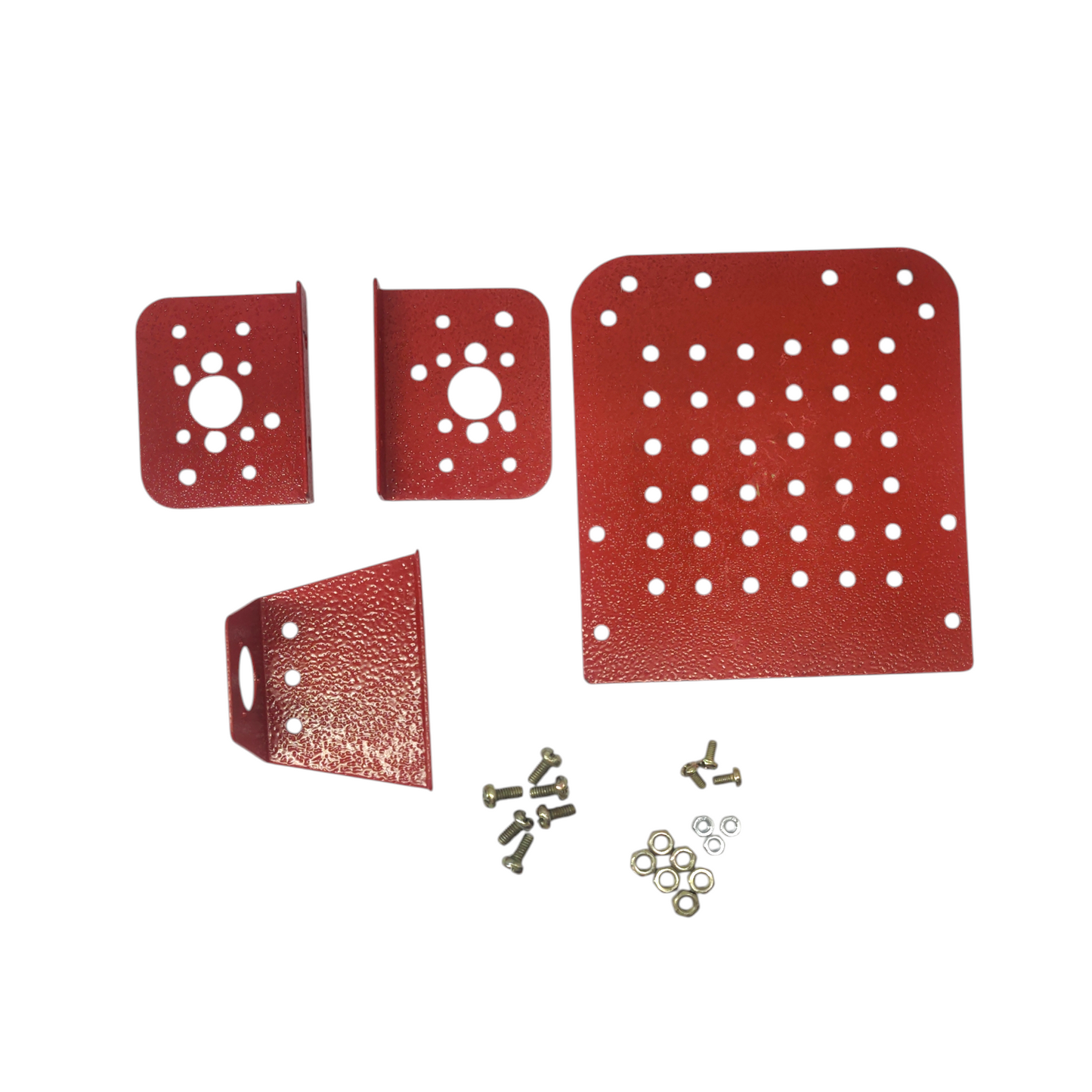

Red Chassis 2WD Advance Metal Chassis (Unassmbled)
Red Chassis 2WD Advance Metal Chassis (Unassmbled)
Couldn't load pickup availability
-Dimensions: 115mm x 105mm x 46mm
-Weight: 200 gm
-Material: Metal sheet
-Color: Red.
-Sheet Thickness: 1.5 mm.
-Motor Fitting Hole Diameter: 13.75 mm.
-Many perforated holes have given for easy attachment of development board and sensors.
Advance Metal Chassis 1 is powder-coated Metal chassis for robots. Easy to mount the motors on the place by using normal motor mount nut.
It can either be used in skid steel configuration (4 motors) or differential configuration (2 rear wheels + 1 front caster wheel). The body contains perforated holes for easy mounting of various size circuit boards and other mechanical components.
This Chassis board is widely used as a mechanical frame structure of the mobile robots. It is the backbone of the robot, where we arrange and connect everything like motors, sensors, and wheels.
Features :
-Many perforated holes have given for easy attachment of the development board and sensors
-Center Shaft gear motor and side shaft gear motor can be used for this chassis.
