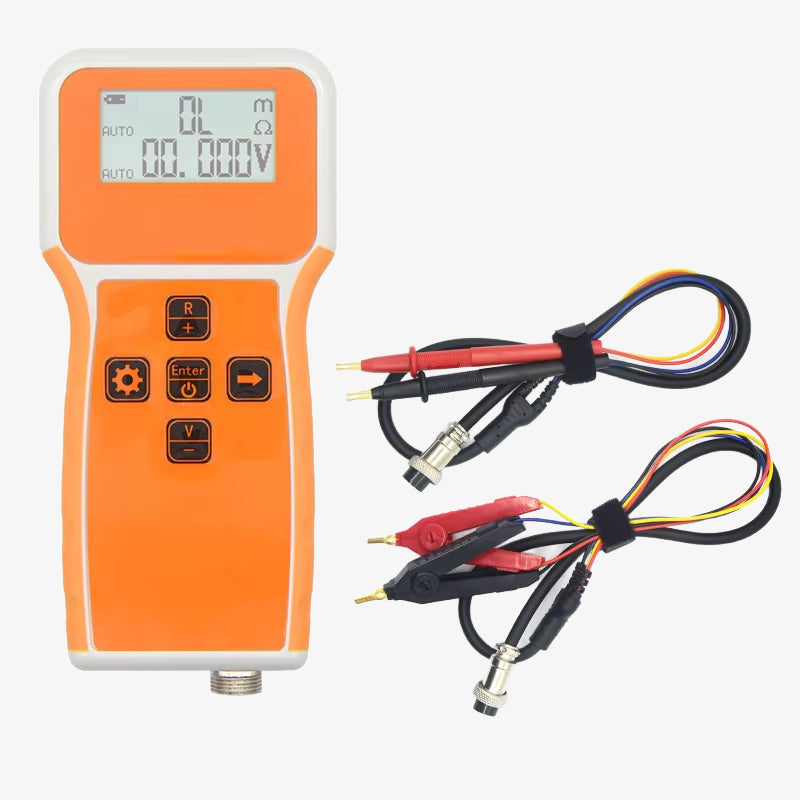

The RC3563 Battery Internal Resistance Tester is a state-of-the-art 4-wire battery tester designed for accurate and reliable measurements. Ideal for testing a wide range of batteries including LiPo, LiFePO4, NiMH, and NiCd, this Battery IR tester simultaneously measures AC resistance and DC voltage with high precision. Its intelligent control system, clear LCD display, and built-in battery make it perfect for on-the-go testing in manufacturing, maintenance, and research environments.

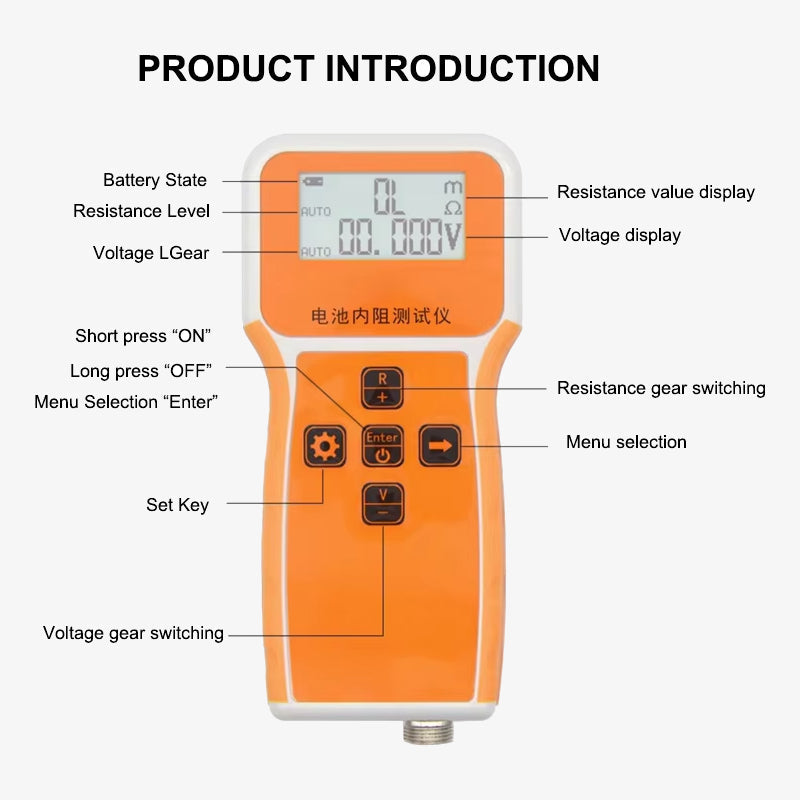

Features:

• True 4-wire testing for minimized contact resistance errors
• Dual measurement capability: measures both AC resistance and DC voltage simultaneously.
• High accuracy: 0.5% measurement precision for both resistance and voltage
• Intelligent control with both automatic and manual range options
• Versatile usage for batteries, capacitors, and high-precision resistors

Specifications:

• Model: Battery Internal Resistance Tester RC3563
• Measurement Parameters: AC Resistance, DC Voltage
• Basic Accuracy: 0.5% for both resistance and voltage
• Resistance Measuring Range: 1 μΩ ~ 200 Ω
• Voltage Measuring Range: 1 mV ~ +100 V DC
• Test Signal Frequency: AC 1 KHz
• Test Signal Current Options: 20 mΩ: 50 mA; 200 mΩ: 5 mA; 20 Ω: 0.5 mA
• Resistance Ranges: 6 ranges (automatic and manual)
• Voltage Ranges: 3 ranges (automatic and manual)
• Display: LCD, updates 5 times per second

Package Includes:

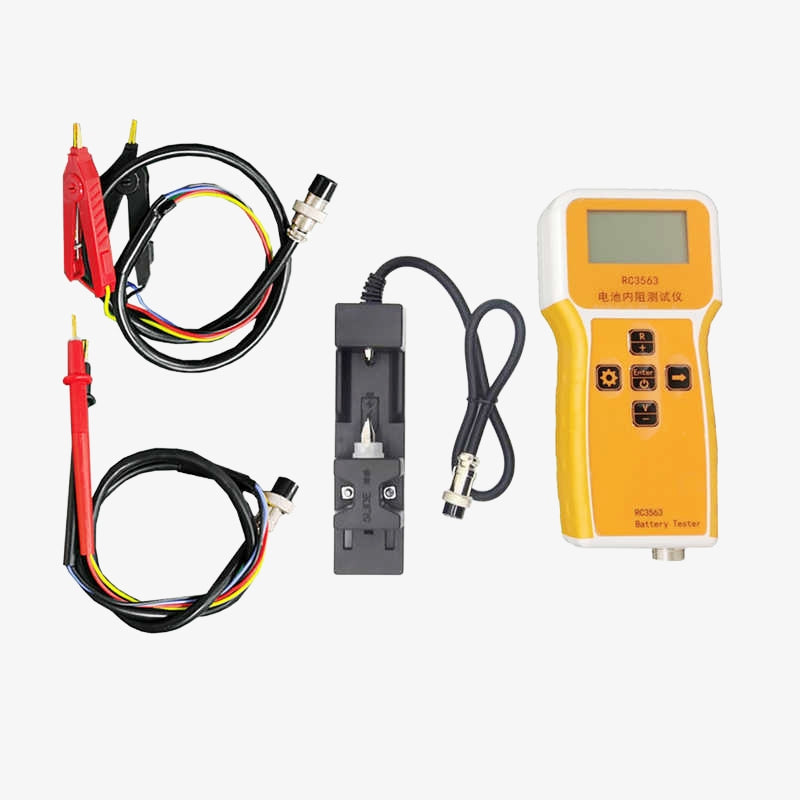

1 x RC3563 IR Tester with Probe, Clip & Fixture
