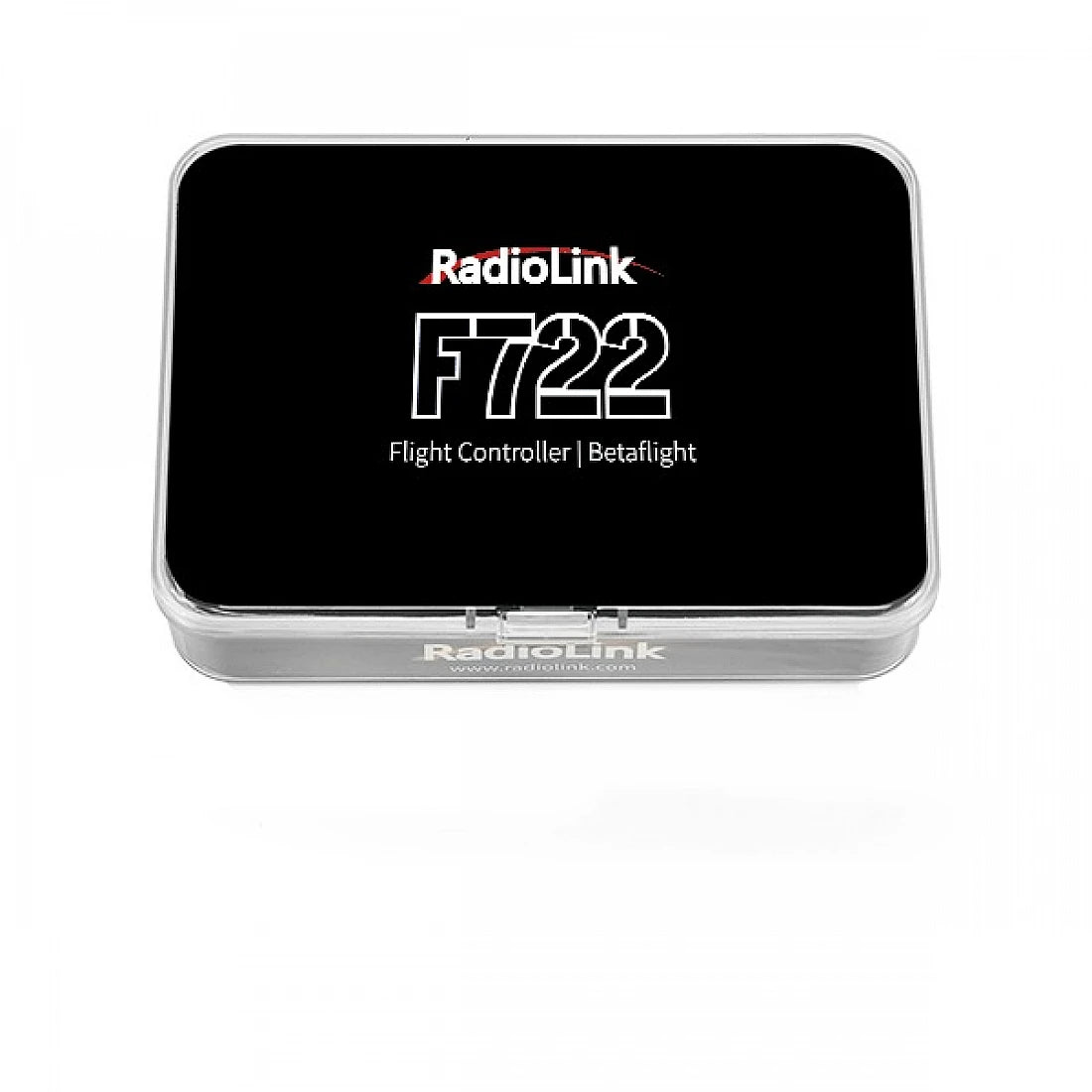

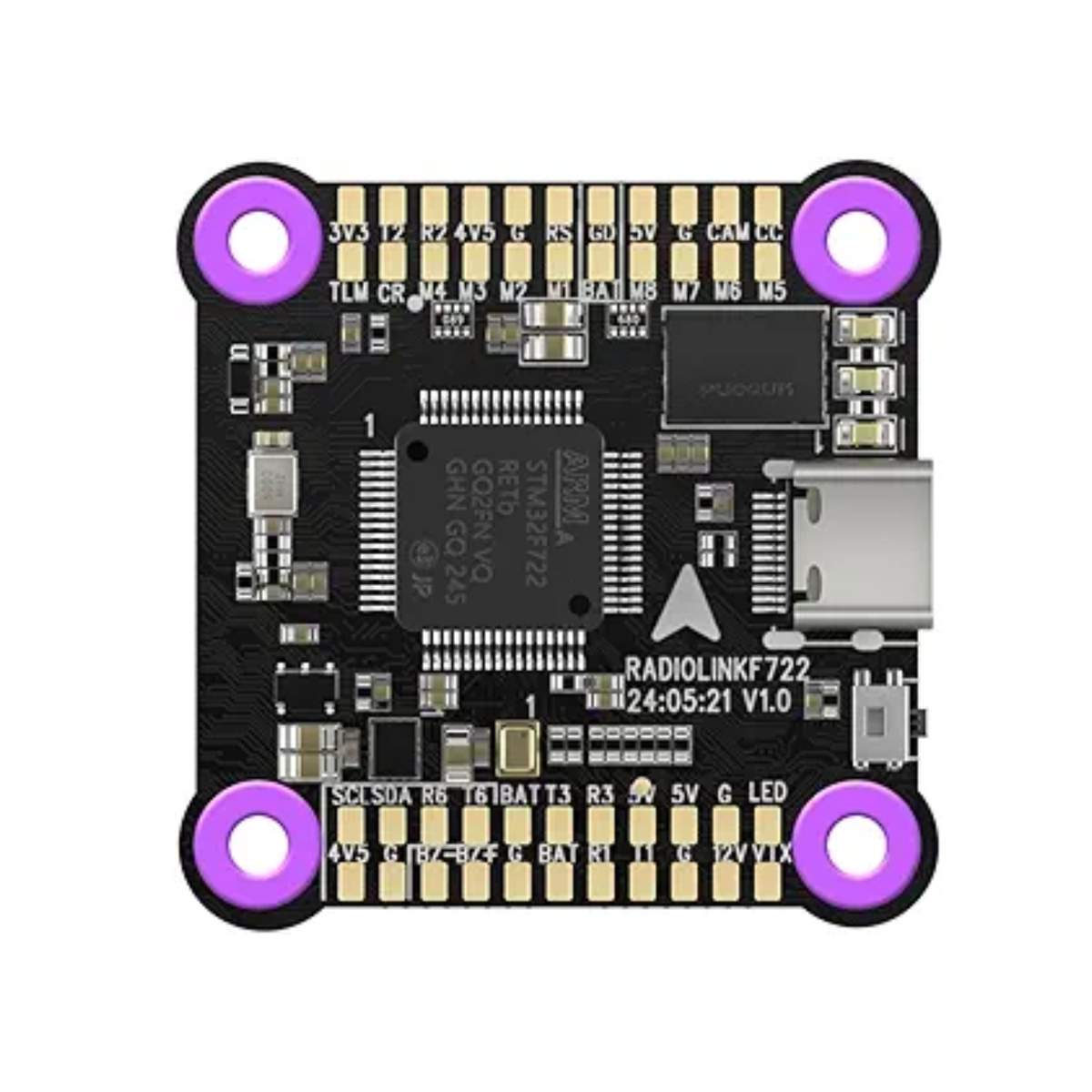

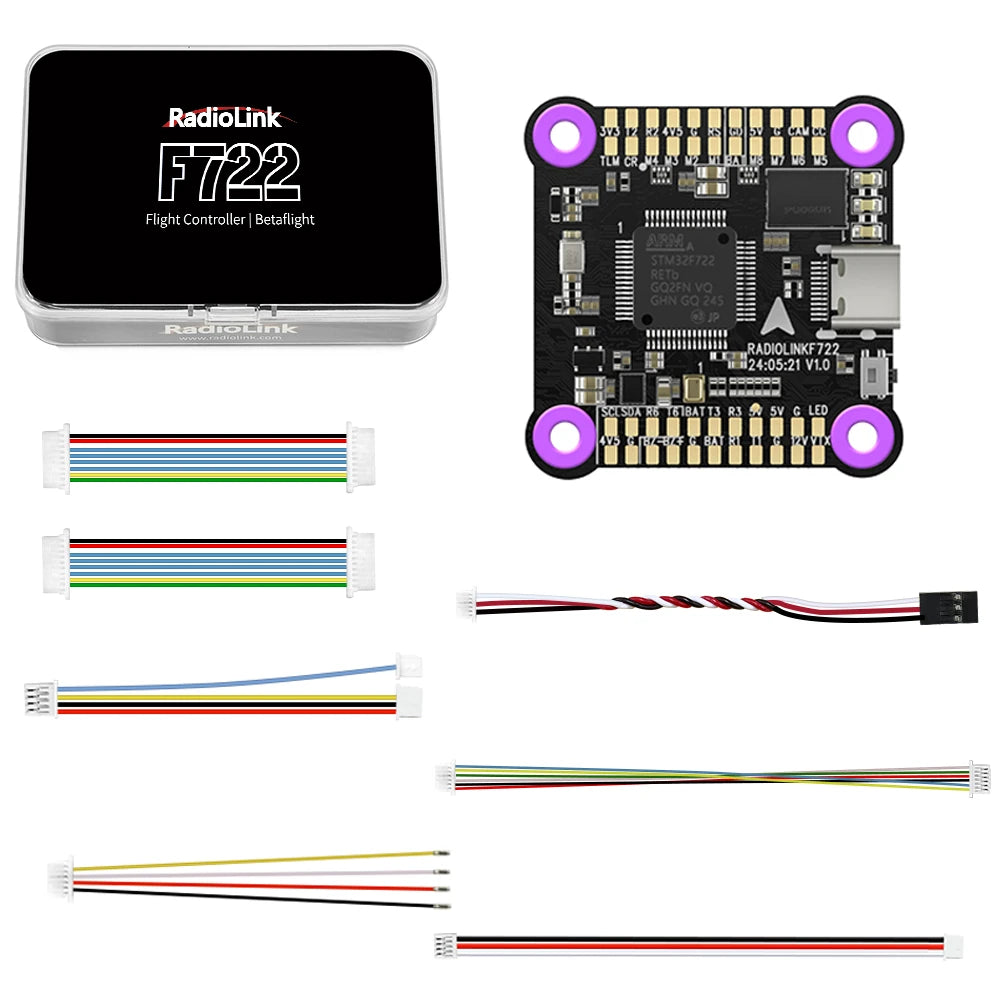

RadioLink F722 Racing Edition Flight Controller
RadioLink F722 Racing Edition Flight Controller
Regular price
Rs. 3,999.00
Regular price
Sale price
Rs. 3,999.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- Model: Radiolink F722
- Make: RadioLink
- Model: F722
- Main Processor: STM32F722RET6
- Sensors: Gyroscope (ICM42688), Barometer (BMP280/DPS310)
- Storage: 128MB black box (flight log storage)
- Firmware: Betaflight (RADIOLINKF722)
Specifications:
|
Dimension & Weight
|
Dimension
|
30.5*30.5mm(1.2″*1.2″)
|
|
Weight
|
9.5g(0.34oz)
|
|
|
Hardware
|
Processor
|
STM32F722RET6
|
|
Sensor
|
Gyro
|
ICM42688/ST LSM6DSK320X
|
|
Barometer
|
SPL06
|
|
|
Blackbox
|
128MB, record and store flight logs
|
|
|
OSD Module
|
AT7456E
|
|
|
Connector
|
Channel Output
|
M1 - M8
|
|
HD Digital Video Transmission
|
Support HD digital video transmission plug-and-play
|
|
|
Analog Video Transmission
|
Support analog video transmission plug-and-play
|
|
|
Betaflight Camera Parameter
Setup Soldering Pads
|
Support
|
|
|
Battery Scale
|
110
|
|
|
UART Port
|
5
|
|
|
ESC Features
|
Support
|
|
|
I2C
|
Support(SCL, SDA)
|
|
|
LED Strip
|
Support, have LED strip soldering pads
|
|
|
Buzzer
|
Support, have a buzzer soldering pads
|
|
|
RSSI Output
|
Support, have RSSI soldering pads
|
|
|
USB Port
|
1(Type-C)
|
|
|
Signal Input
|
SBUS/CRSF
|
|
|
OSD Telemetry
|
Support, OSD Module Integrated
|
|
|
ESC Protocol
|
PWM, two-way DShot, and OneShot Protocol
|
|
|
Firmware
|
Firmware Type
|
Betaflight, INAV
|
|
Firmware Name
|
RADIOLINKF722
|
|
|
Power Supply
|
Input Voltage
|
3-6S
|
|
BEC
|
3.3V/300mA; 4.5V/500mA;
5V/3A; 12V/3A
|
|
|
12V BEC Switch
|
Support(USER1)
|
|
|
Adaptable Models
|
2-8 axis multi-rotors, |
flying wings, Cars, Boats, |
|
Operating Voltage
|
-30~85℃
|
