-44% Sold Out

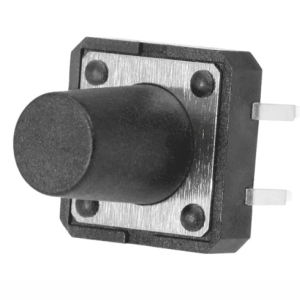

Reset Switch 4 pin 12x12x15mm Tactile / Micro Switch

Rs. 10.00 Rs. 18.00

Subcribe to back in stock notification

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441

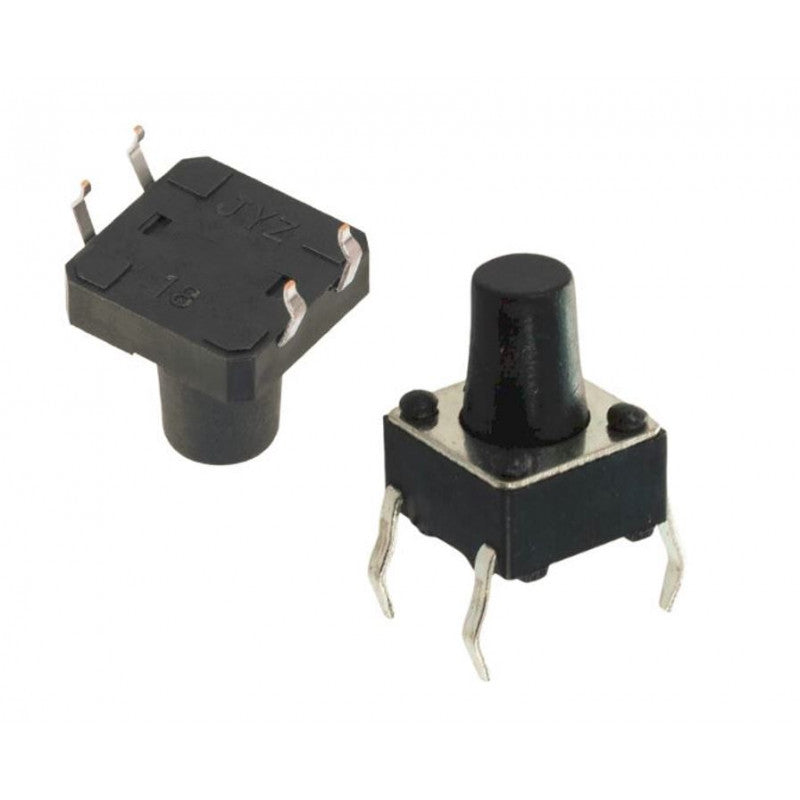

Push Button Switch - 12mm - 4 pin - Tactile/Micro Switch - 10mm Height.

12x12x15 mm Tactile Push Button Switch is widely used as a standard input “button” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

  • Operating Voltage : 12V
  • Operating Current : 50mA
  • Tactile/Microswitch
  • Through-hole design
  • Shaft Shape : Round
  • Contact Material : Brass
  • Contact Resistance : 50mΩ
  • Insulation Resistance : 100MΩ
  • Operating Temperature Range : -20°C to +70°C
  • Operation Force : 3-5N
  • Body Material : Plastic
  • Pin Count : 4-pin
  • Length : 12mm
  • Width : 12mm
  • Height : 15mm
  • Weight : 1gm
  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- Bluedart, Amazon Shipping, Ekart Logistics, Delhivery & India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
