Reset Switch 4 pin 12x12x10mm Tactile / Micro Switch
Rs. 8.00
Rs. 15.00
Subcribe to back in stock notification
All Prices Incuding GST
No Hidden Charge
Local Pickup
Estimated time to pack : 15 Mins.
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Get Attractive Discount on Bulk

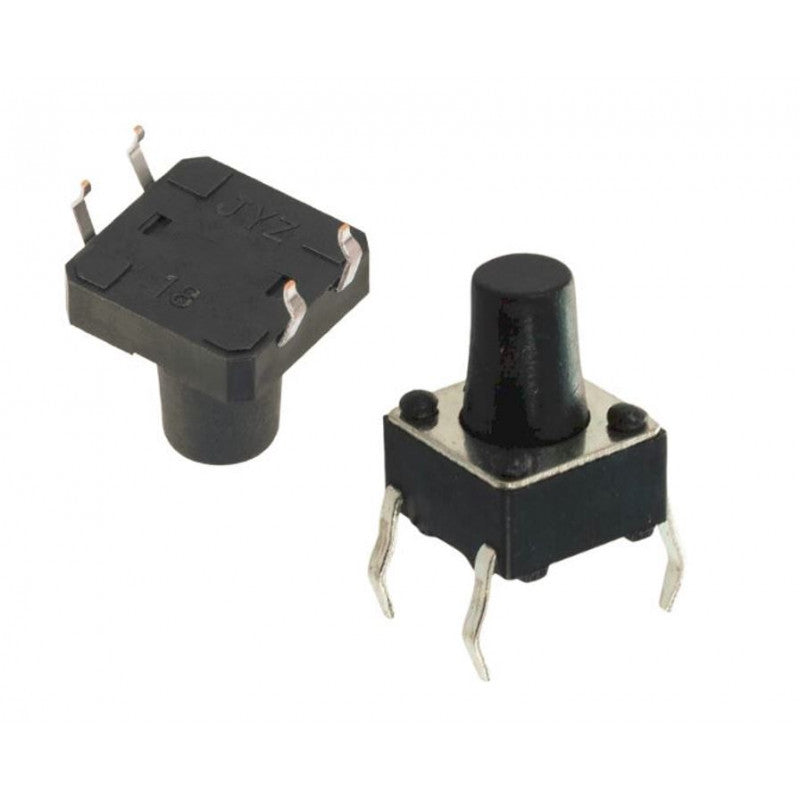

Push Button Switch - 12mm - 4 pin - Tactile/Micro Switch - 10mm Height.
12x12x10 mm Tactile Push Button Switch is widely used as a standard input “button” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.
- Operating Voltage : 12V
- Operating Current : 50mA
- Tactile/Microswitch
- Through-hole design
- Shaft Shape : Round
- Contact Material : Brass
- Contact Resistance : 50mΩ
- Insulation Resistance : 100MΩ
- Operating Temperature Range : -20°C to +70°C
- Operation Force : 3-5N
- Body Material : Plastic
- Pin Count : 4-pin
- Length : 12mm
- Width : 12mm
- Height : 10mm
- Weight : 1gm
