1. Operating Voltage (VDC): 6 ~ 36.
2. Detection Distance (mm): 8.
3. Outer Thread Size: M18.
4. Object Type: Inductive.
5. Output Type: PNP Normally Open Three-line.
6. Installation Type: Non-Flush (Unshielded).
7. Max Output Current: 200 mA.
8. Setting Distance (mm): 0 ~ 5.6.

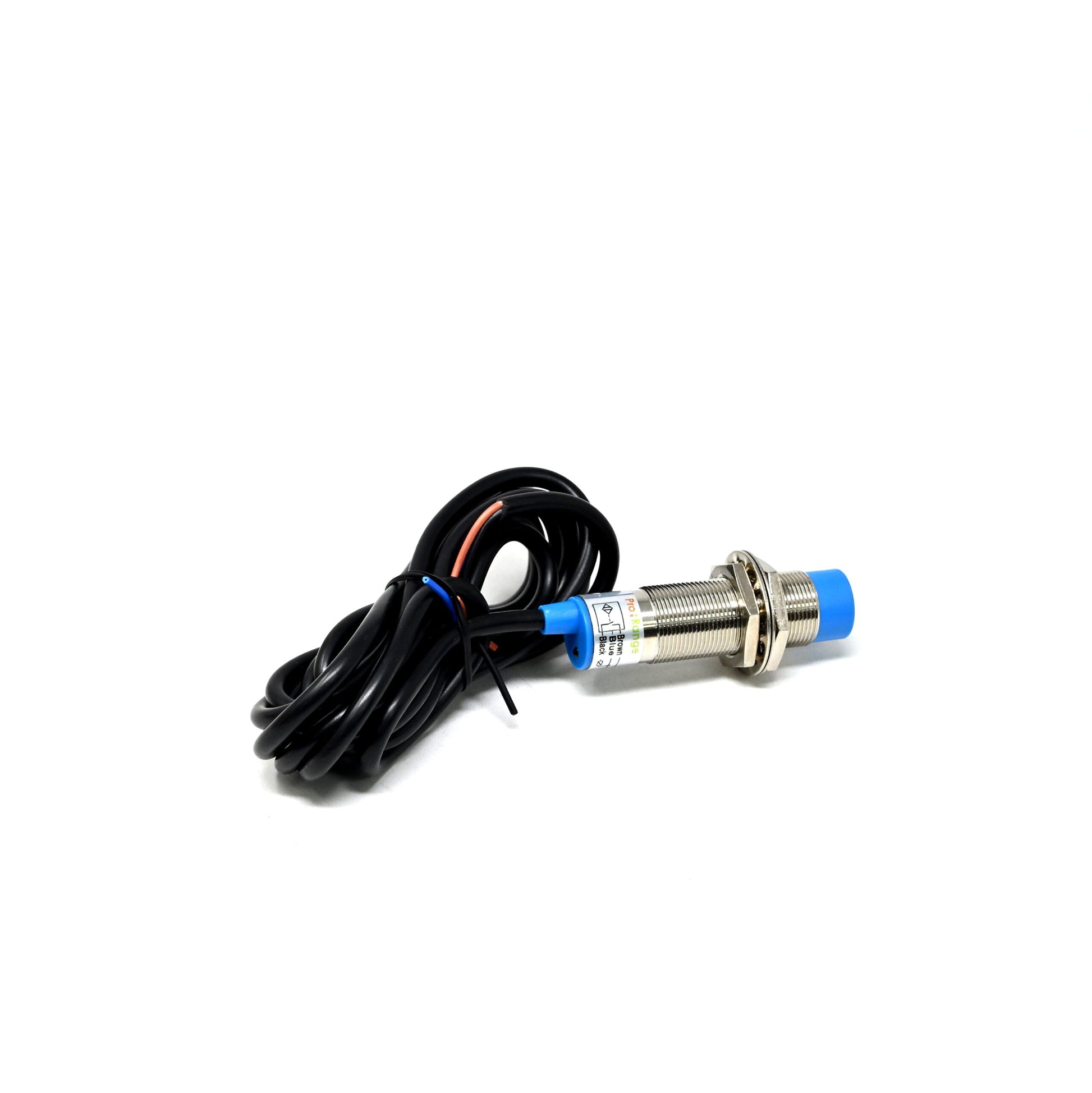

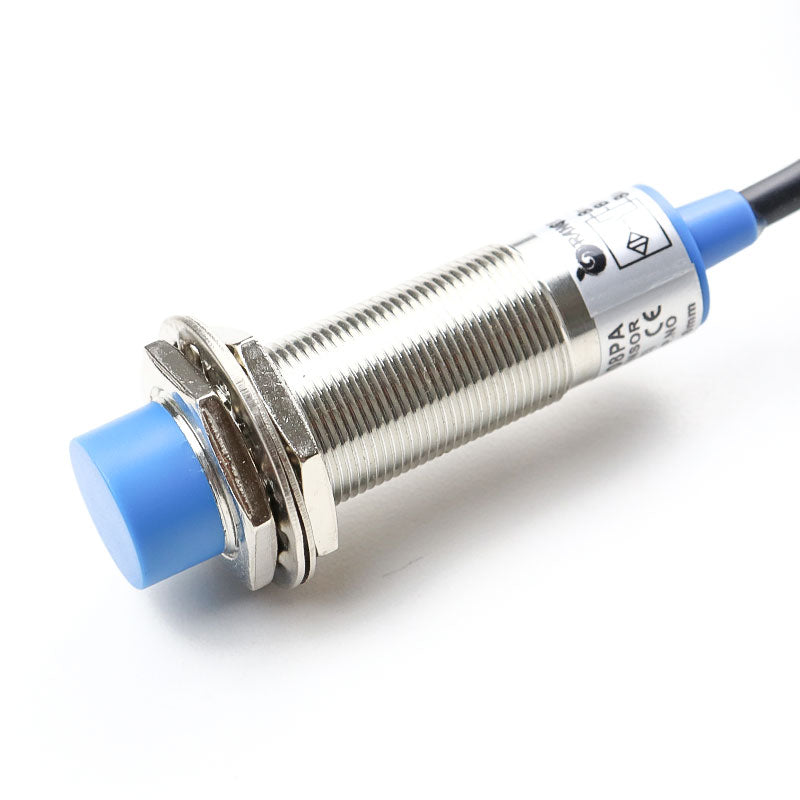

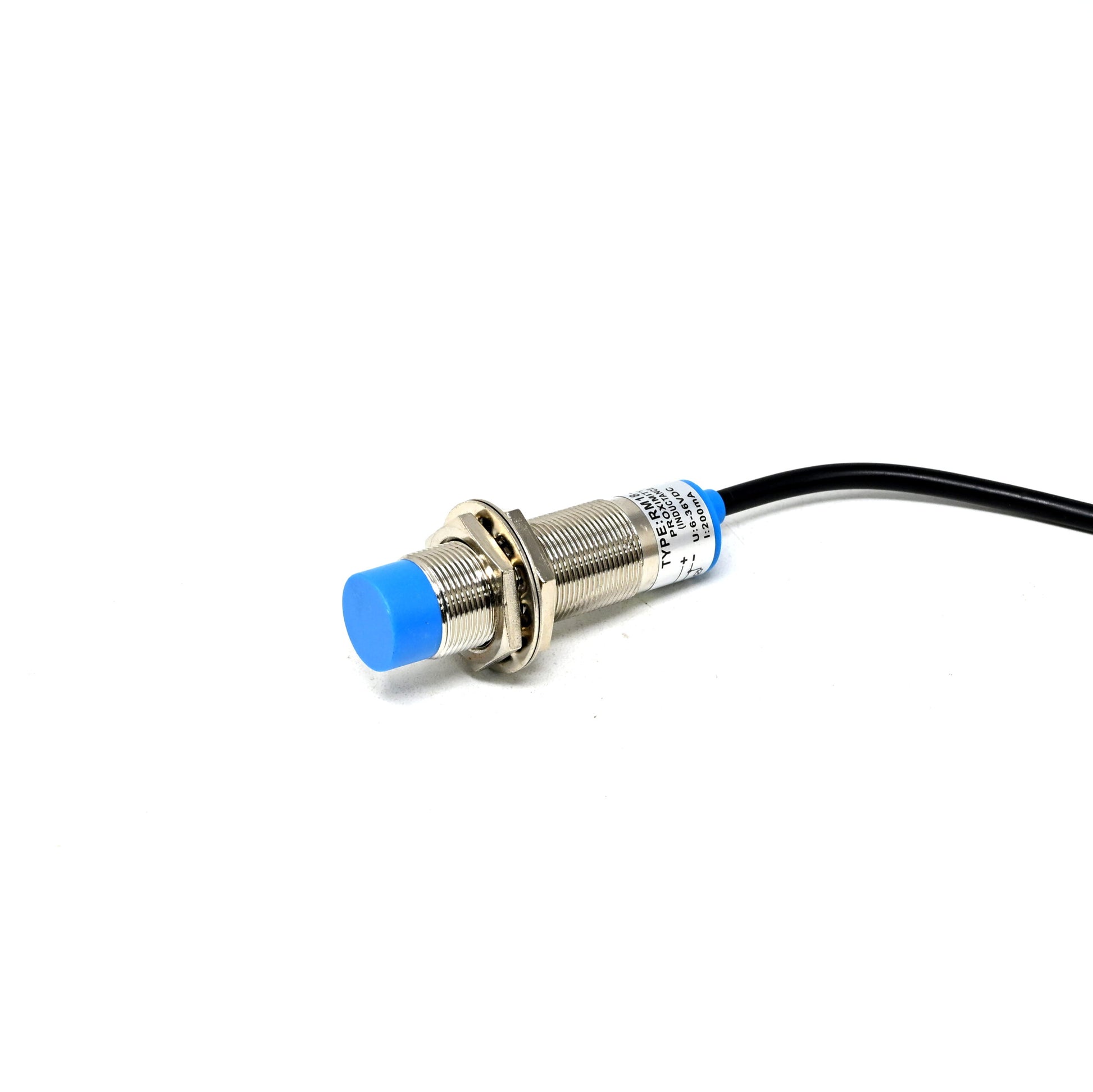

8mm PNP Inductive Proximity Sensor RM18 DC6~36V (Unshielded) is a brand new inductive proximity sensor that detects a metal object. Non-flush, or unshielded sensors, do not have the shield around the end of the sensor so the field can radiate from the face to the sides of the sensor in a larger pattern.

This M18 indicates a cylinder type whose diameter is 18mm. The operating voltage range is VDC 6~36V, but the nominal voltage is 30V with detecting distance of 8mm. The sensor has 3 wire and NO (Normally open) type output with RED LED indicator.

The Inductive Proximity Sensor application:

1. Mine metallurgy.
2. Plastics, textile and Chemical Industry.
3. Light industry, tobacco, electric power, railway, and war industry.

Features:

1. IP67 protection structure (IEC standard).
2. Compact volume.
3. High precision of repeated location.
4. Diversified exterior.
5. Good performance of anti-interference.
6. Many output forms.
7. High on-off frequency.
8. Wide voltage range.
9. Dustproof, vibration proof, waterproof and oil proof.
10. With short-circuit protection and inverted connecting protection.
11. Long service life.

Package Includes:

1 x 8mm PNP Inductive Proximity Sensor RM18 DC6~36V (Unshielded).
