6mm Aluminium Flange Coupler for Motor Shafts
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item
Connect a 6mm motor shaft to your robot wheel or mechanism

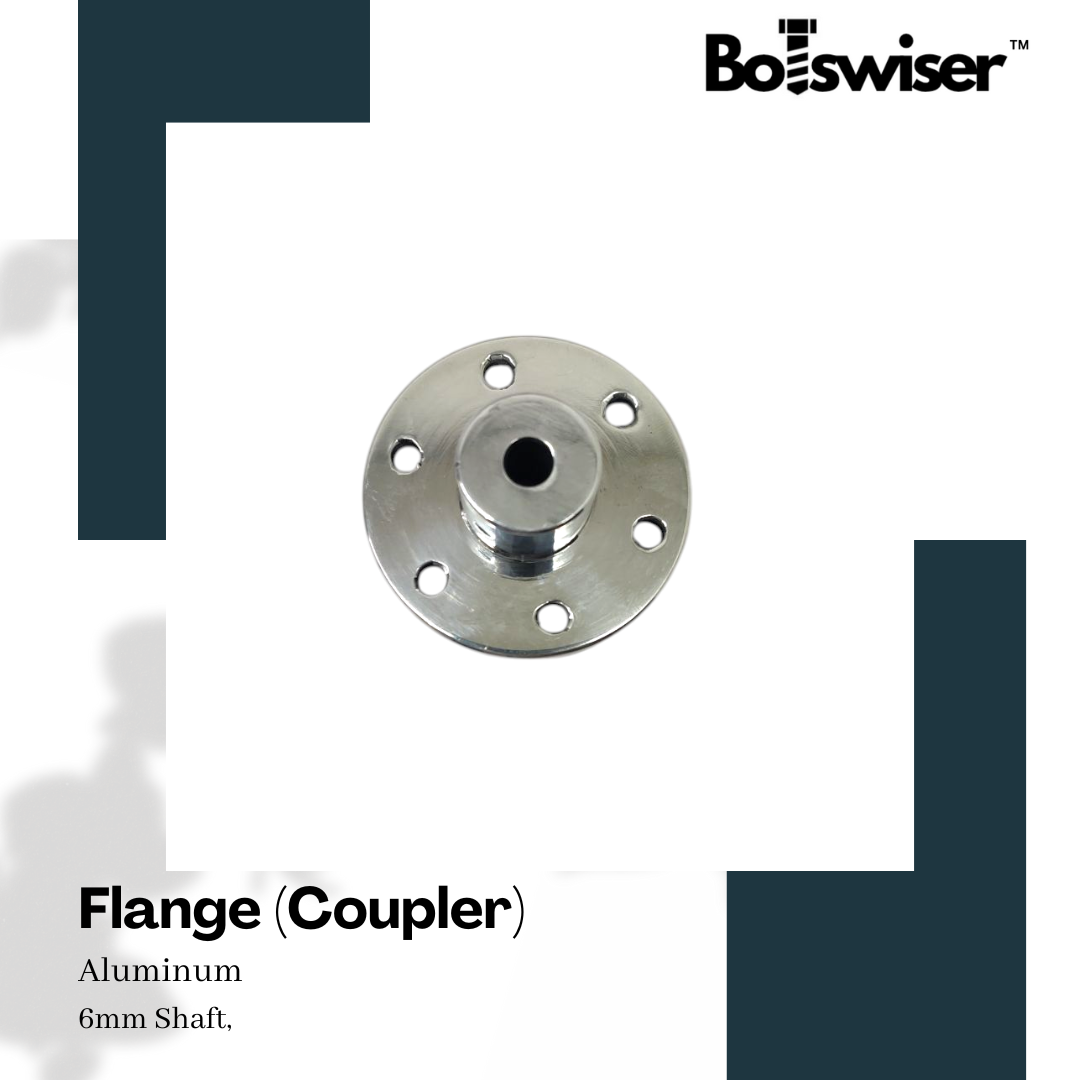

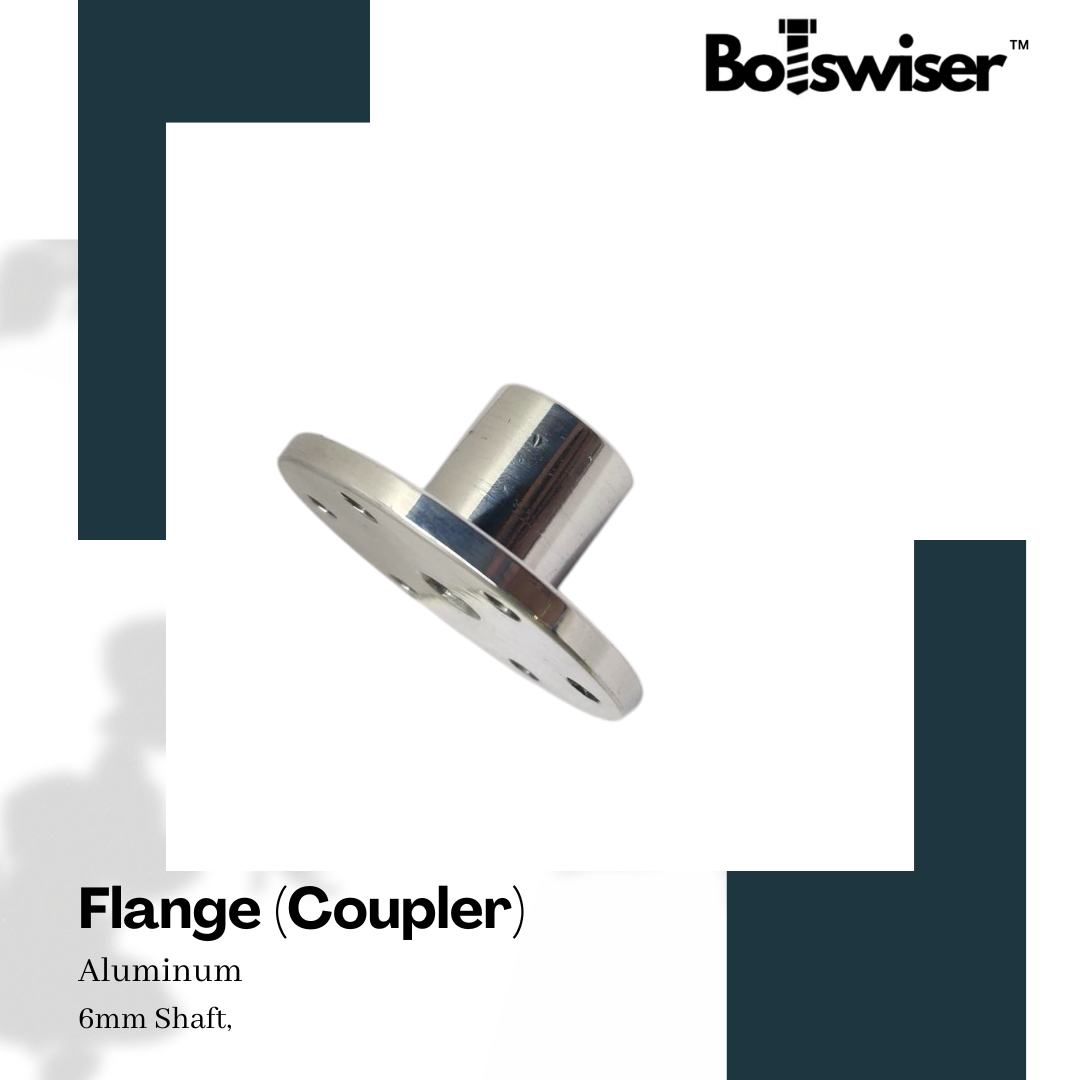

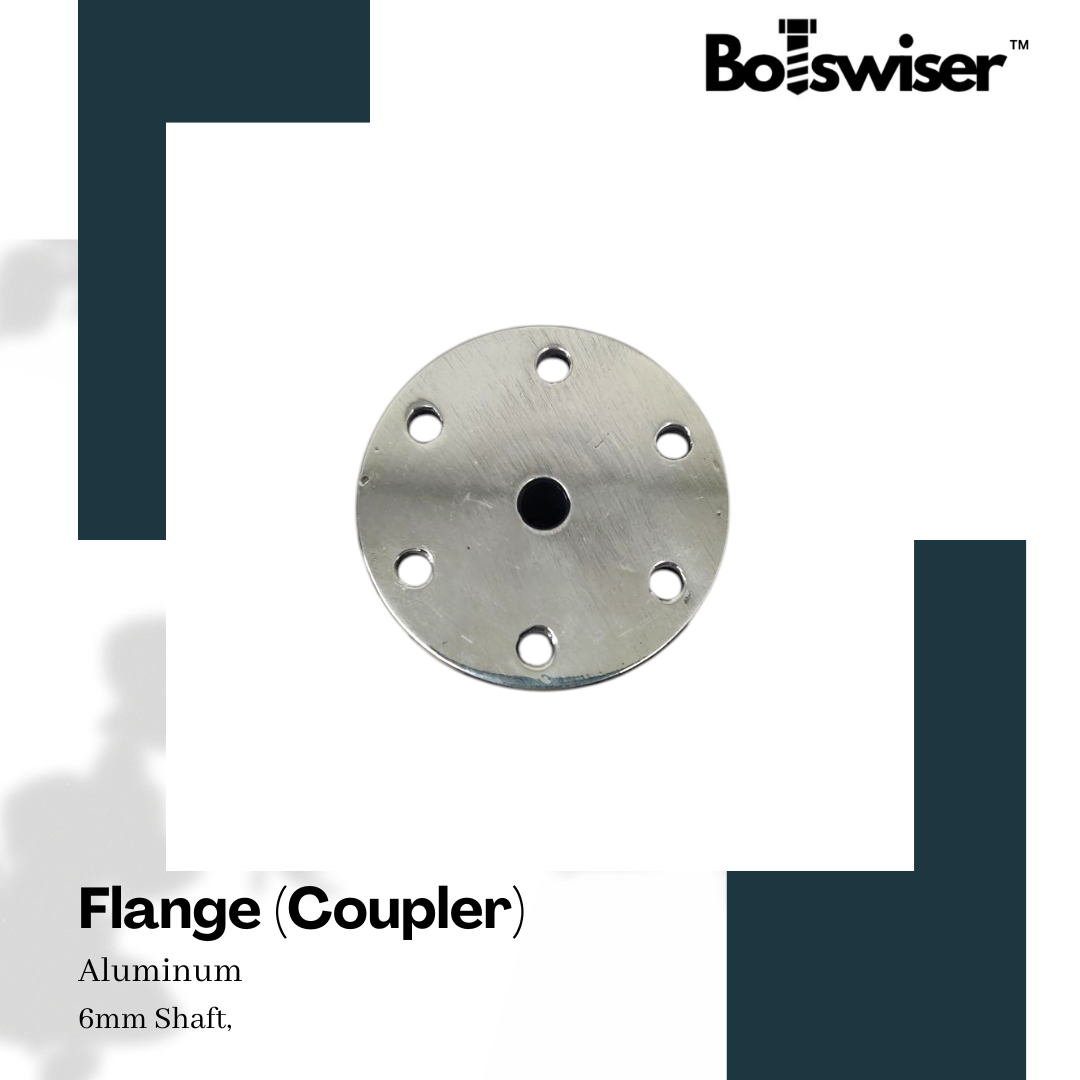

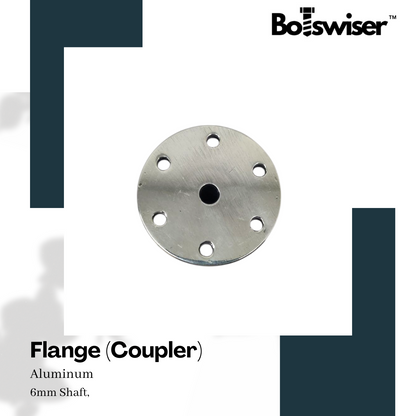

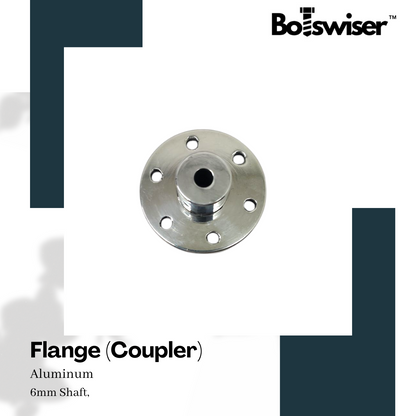

The Botswiser 6mm Aluminium Flange Coupler is a mounting hub for connecting a compatible wheel or mechanism to a motor shaft. Its 6mm bore fits a matching shaft, while the 50mm mounting flange provides six base mounting holes for fastening your assembly.
Whether you are assembling a mobile robot or building a custom motor-driven mechanism, this coupler provides a compact connection between the shaft and the mounted part. Check your wheel's mounting-hole pattern and shaft dimensions before ordering.
Key features
- 6mm shaft bore: designed for a matching 6mm motor shaft.
- Aluminium construction: listed coupler weight of 25g.
- Flanged mounting: 50mm flange diameter with six base mounting holes.
- Shaft fastening: M3 fastening screw hole with an included fastening screw.
- Base mounting: M4 mounting screw holes; three mounting nut-and-bolt sets are included.

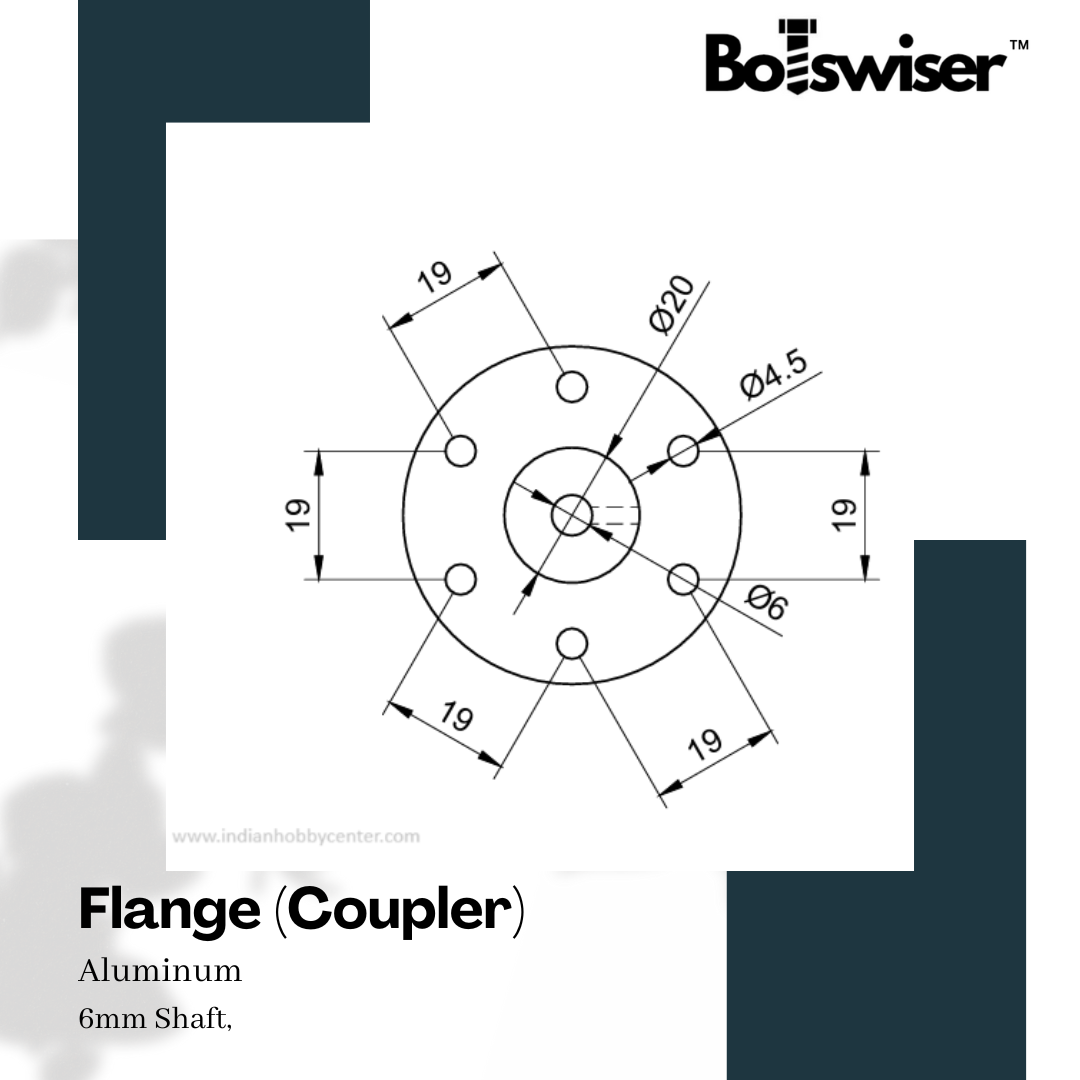

Technical specifications
- Brand: Botswiser
- Material: Aluminium
- Bore inner diameter: 6mm
- Cylindrical hub outer diameter: 20mm
- Cylindrical hub height: 20mm
- Flange outer diameter: 50mm
- Flange base thickness: 4mm
- Total height: 24mm
- Fastening screw hole: M3
- Base mounting screw holes: M4
- Number of base mounting holes: 6
- Listed coupler weight: 25g
Compatibility and mounting
Use with a 6mm motor shaft and a wheel or mechanism with a matching flange mounting pattern. Bore size alone does not establish wheel compatibility. Verify the mounting-hole spacing, available shaft length and installation clearance before purchase.
Package includes
- 1 × Aluminium flange coupler
- 1 × Fastening screw
- 3 × Base mounting nut-and-bolt sets
Related wheels and couplers
Compare dimensions and mounting patterns before selecting related parts.
