PN532 NFC RFID Read And Write Module V3 Kit
All Prices Incuding GST
Order Through WhatsApp
+91-8249931161
Fast Delivery
Same Day Dispatch.
Bulk Purchase

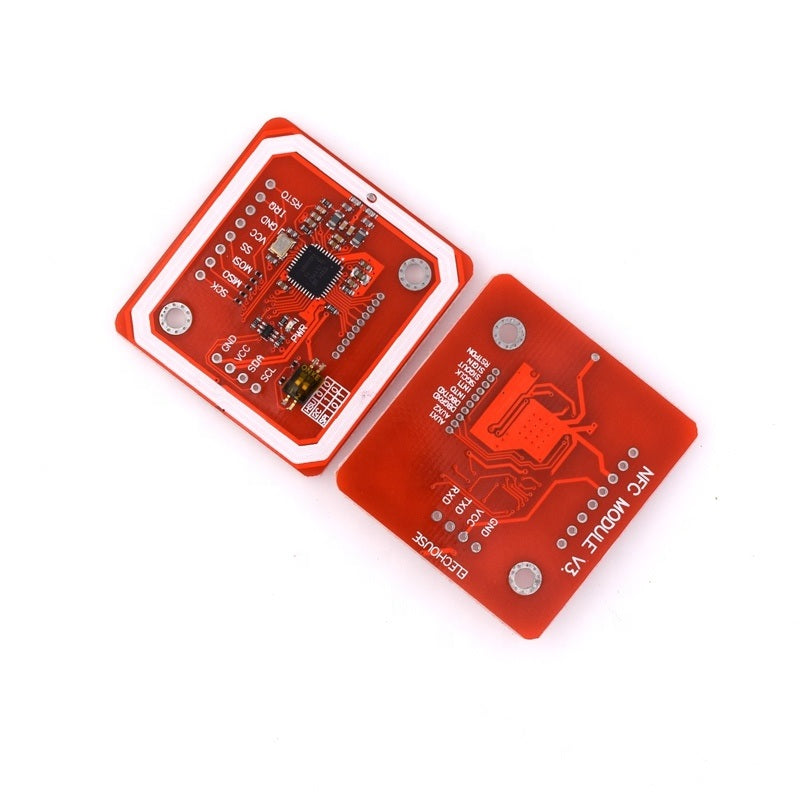

- PN532 NFC RFID Read And Write Module
- Module Size: 42.7mm x 40.4mm x 4mm
- Easy to change mode: with a small SMD toggle Switch, it becomes very easy to change among IIC, SPI, and HSU modes
- Longer distance: the reading distance becomes 5~7cm, compared with 4~6 cm of the last version
- Built-in PCB Antenna, with 5cm~7cm communication distance
- On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
- Work as RFID reader/writer
- Work as 1443-A card or a virtual card
PN532 NFC RFID Read And Write Module V3 Kit
The PN532 is a highly integrated transmission module for contactless communication at 13.56 MHz including microcontroller functionality based on an 80C51 core with 40 Kbytes of ROM and 1 Kbytes of RAM. The PN532 combines a modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz with an easy-to-use firmware for the different supported modes and the required host controller interfaces.
It works as an RFID reader/writer,1443-A card, or a virtual card and also supports NFC with Android phones. It is also compatible with Arduino. This product know as RC522, RC522 Reader Writer Module, RC522 RFID 13.56MHZ Reader Writer Module, Reader Writer Module, RFID Reader Writer Module, RFID RF Module, RFID-RC522, RFID, Radio Frequency, Radio Frequency Modules, 13.56MHz, RFID Cards, RFID Card Reader, RFID Reader/Writer RC522 SPI S50 with RFID Card and Tag
Supporting Protocols: II2, SPI and HSU (High-Speed UART), I2C / UART: 3.3V ~ 24V TTL, SPI: 3.3V TTL with 100-ohm resistors in series
Features/Specs:
- Operating Voltage: 3.3V ~ 5V
- Communication distance: 5cm ~ 7cm
- Support II2, SPI, and HSU (High-Speed UART)
- I2C / UART: 3.3V ~ 24V TTL
- SPI: 3.3V TTL with 100-ohm resistors in series
- Communication distance: 5cm~7cm
- On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
- Work in NFC Mode or RFID reader/writer Mode
- RFID reader/writer supports:
- Plug and play, compatible
- Built-in PCB Antenna, with 4cm~6cm communication distance
- On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
- Work as an RFID reader/writer
- Work as a 1443-A card or a virtual card
- Exchange data with other NFC devices such as a smartphone

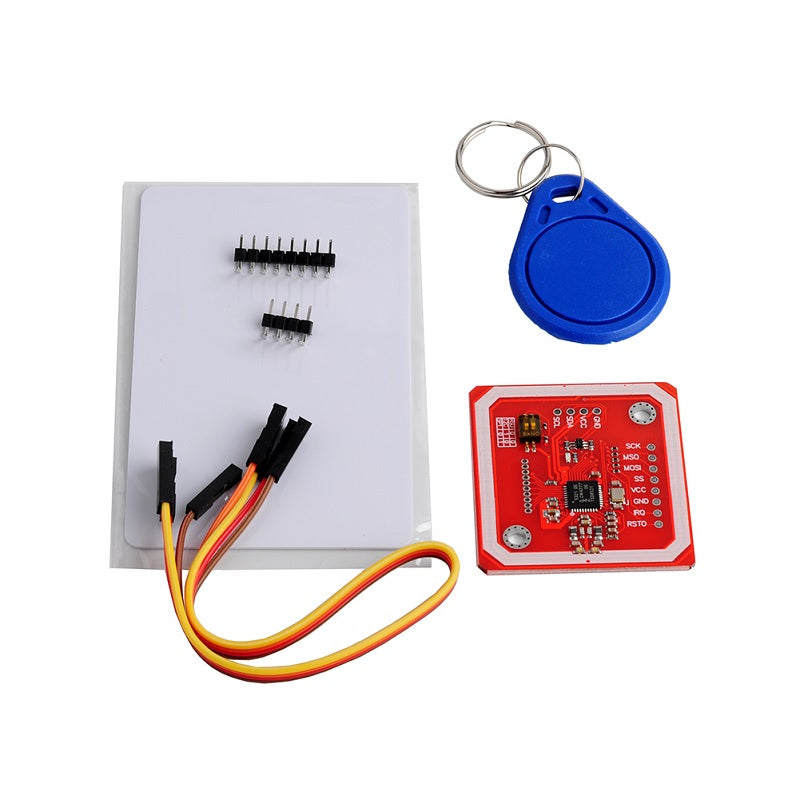

Package includes:
- 1 x PN532 NFC RFID Wireless Module V3

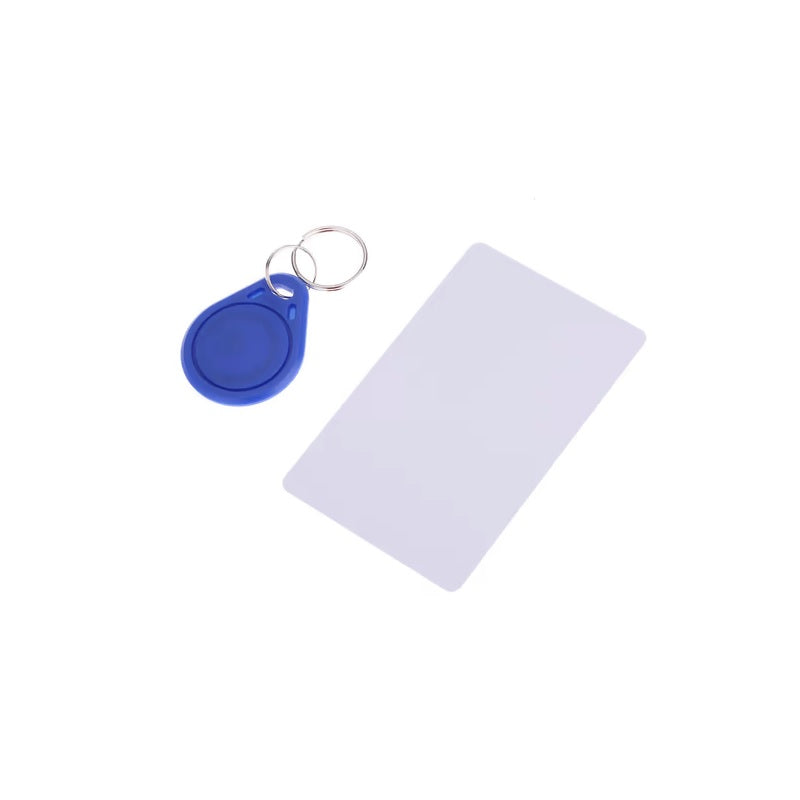

- 1x RFID Card
- 1x RFID Key
- 4x Jumper
- 2x Header Pin
