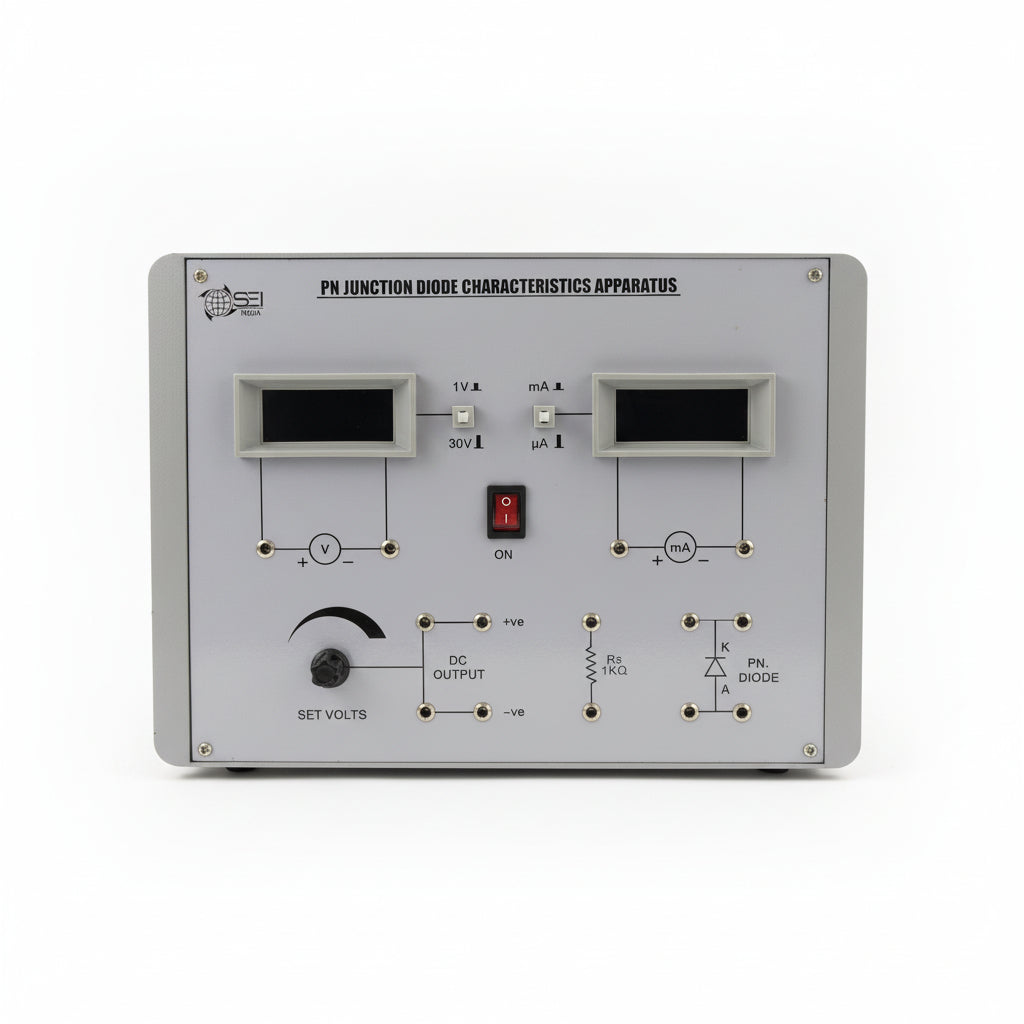

PN Junction Diode Characteristics Apparatus Trainer Kit

PN Junction Diode Characteristics Apparatus Trainer Kit

Explore the fundamental behavior of semiconductor diodes with our PN Junction Diode Characteristics Apparatus Trainer Kit — an essential lab instrument designed for engineering students, physics learners, and electronics enthusiasts. This trainer kit enables hands-on experimentation to study and plot the forward and reverse bias characteristics of a PN junction diode with precision and ease.

Key Features

• Forward Bias Characteristics: Plot the V-I curve in forward bias mode and observe the threshold/cut-in voltage of the diode
• Reverse Bias Characteristics: Study reverse saturation current and breakdown voltage behavior
• Built-in Regulated Power Supply: Provides stable DC voltage for accurate and repeatable experiments
• Micrometer-Scale Current Measurement: Onboard microammeter for precise reverse current readings
• Milliammeter for Forward Current: Accurately measures forward bias current in mA range
• Voltmeter Integration: Measures voltage across the diode in both bias conditions
• Sturdy Enclosure: Housed in a robust, lab-grade enclosure with clearly labeled terminals and controls
• Patch Cord Connections: Easy-to-use banana plug / patch cord connectivity for quick circuit setup
• Suitable for Silicon & Germanium Diodes: Compatible with commonly used diode types for comparative study

Experiment Capabilities

• Plot Forward Bias V-I Characteristics of PN Junction Diode
• Plot Reverse Bias V-I Characteristics of PN Junction Diode
• Determine the static and dynamic resistance of the diode
• Measure the knee/threshold voltage
• Observe reverse saturation current and breakdown region

Technical Specifications

• Power Supply: 230V AC, 50Hz mains operated
• Forward Bias Voltage Range: 0 to 3V (adjustable)
• Reverse Bias Voltage Range: 0 to 30V (adjustable)
• Current Measurement: mA (forward) / µA (reverse)
• Diode Provided: Silicon PN Junction Diode (IN4007 or equivalent)
• Display: Analog meters / Digital meters (model dependent)
• Connections: 2mm / 4mm banana sockets with patch cords

Ideal For

• B.Tech / B.E. Electronics & Electrical Engineering Labs
• Diploma Engineering Institutions
• Physics Laboratory Practicals (Class 12 / Undergraduate)
• Polytechnic Colleges & ITI Institutes
• Self-learning hobbyists and electronics enthusiasts

What's in the Box

• 1 × PN Junction Diode Characteristics Trainer Kit
• Instruction Manual with experiment procedure & observation tables

Whether you're conducting your first semiconductor experiment or setting up a complete electronics lab, this trainer kit delivers reliable performance and educational value. Order now and bring semiconductor theory to life!
