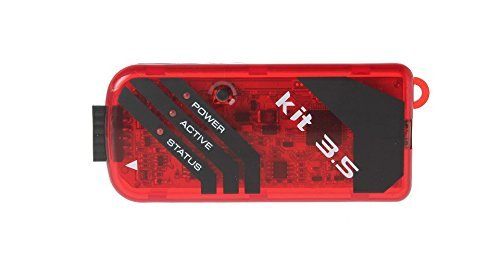

The PICkit 3.5 programmer allows debugging and programming of PIC and dsPIC Flash microcontrollers at the most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE).

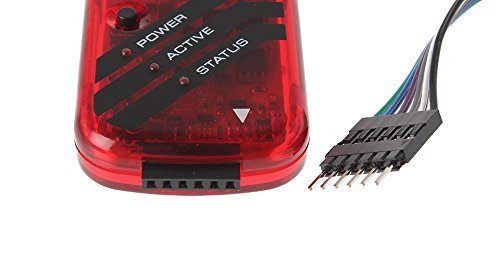

The MPLAB PICkit 3 is connected to the design engineer's PC using a full-speed USB interface and can be connected to the target via a Microchip debug (RJ-11) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming.

Also check the SMD IC Adapters Set for Programmers, consisting of 9 pieces. The set includes various adapters such as SOP28-DIP28, SOP8-DIP8, PLCC44-DIP44, and more, allowing users to convert SMD components into DIP format for easier mounting.

• Full-speed USB support using Windows standard drivers.
• Low voltage to 5V (1.8 to the 5V range)
• Read/write program and data memory of the microcontroller
• It is a program up to 512K byte flash.
• The PICKit 3.5 programmer works at a full speed of 12 Mbits/s and interfaces to host PC.
• It features real time execution and is MPLAB IDE compatible.
• The PICKit 3.5 programmer has a built in over-voltage/short circuit monitor for protection.

Features:

• Includes features like real-time execution, breakpoints, and single-stepping.
• Enables programming and debugging in-circuit or in-system.
• Offers fast and reliable programming and debugging experience.
• Supports a wide range of PIC microcontrollers for programming and debugging.
• Provides an easy-to-use graphical interface for seamless operation.

Package Includes:

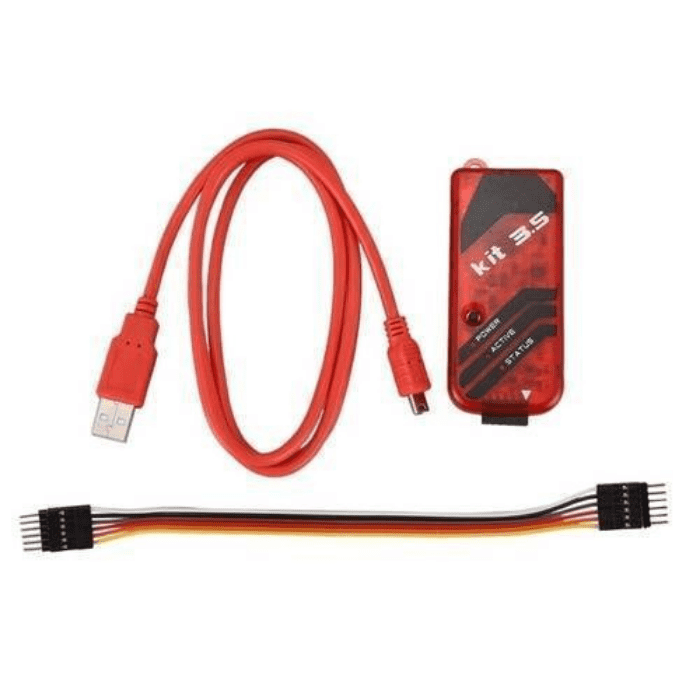

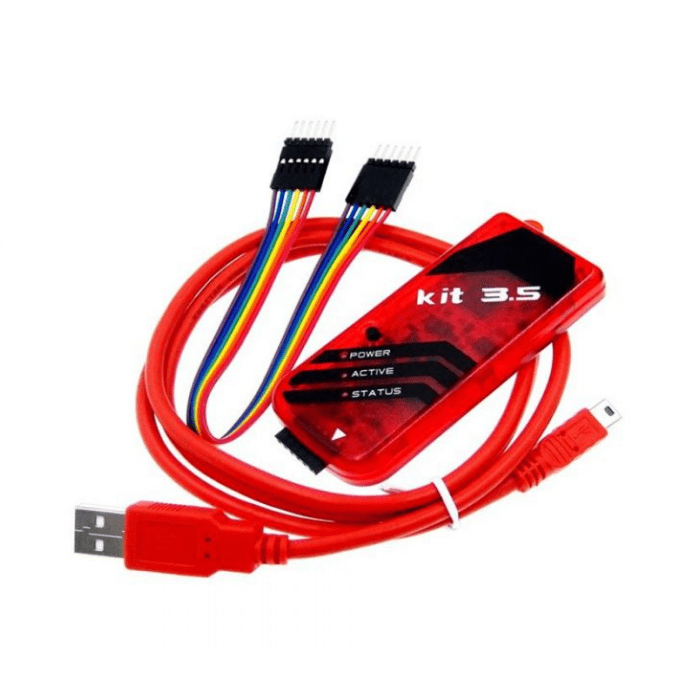

1 x PICKit 3.5 Programmer
