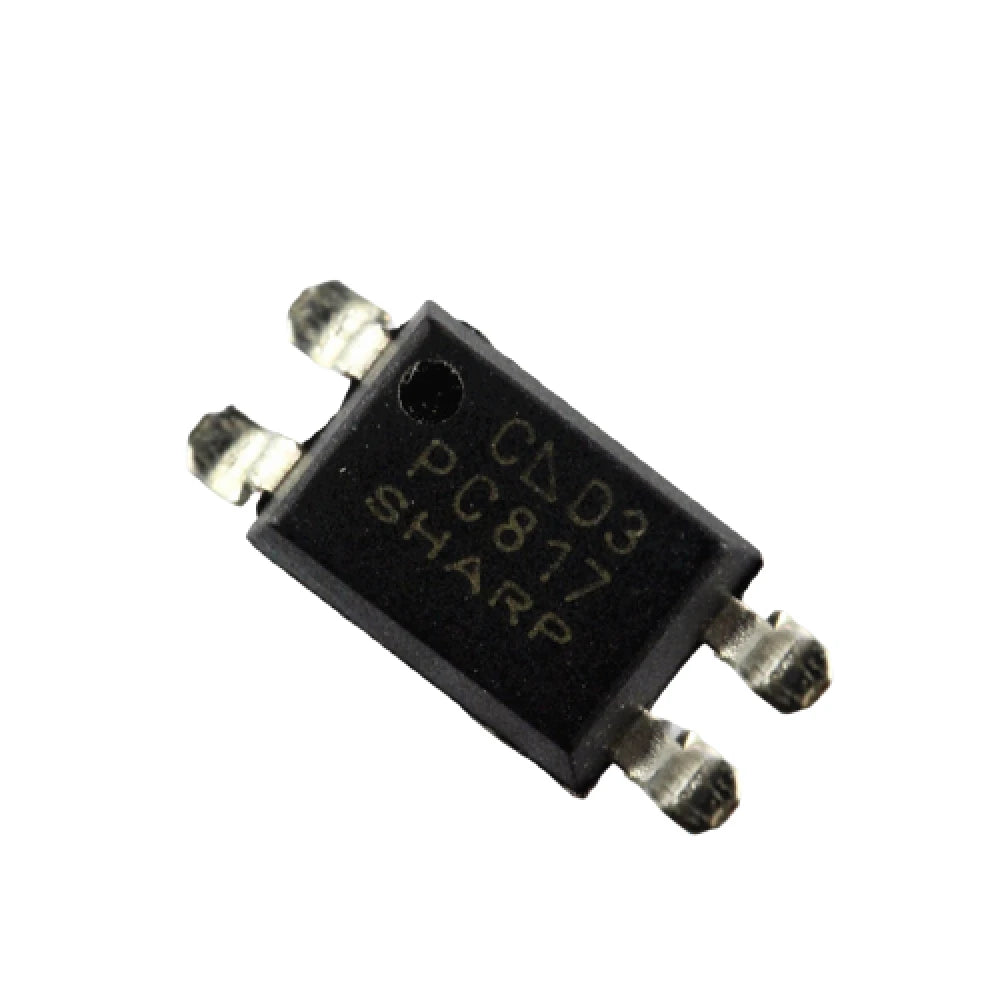

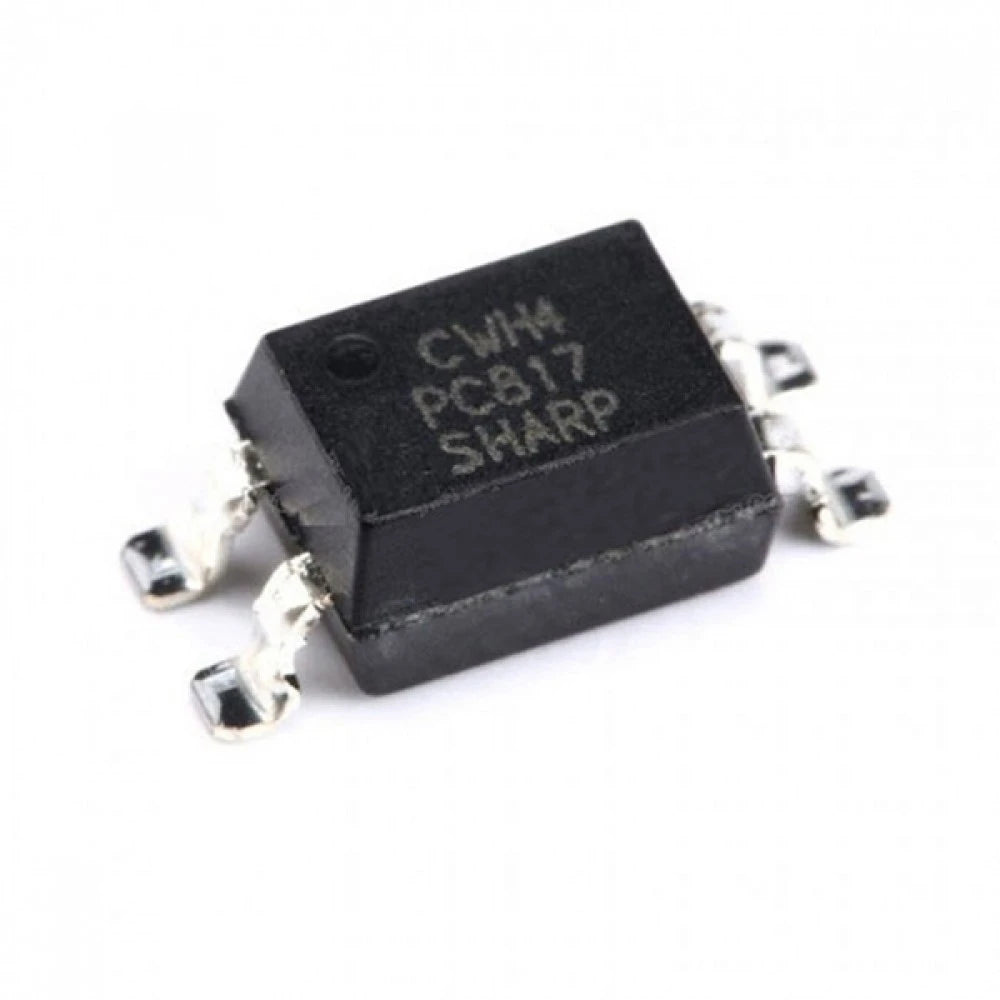

PC817 EL817 SMD-4 Optocoupler Transistor Output
PC817 EL817 SMD-4 Optocoupler Transistor Output
Regular price
Rs. 15.00
Regular price
Sale price
Rs. 15.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
PC817 Opto-Coupler is used to provide electrical isolation between two circuits, one part of the circuit is connected to the IR LED and the other to Photo-transistor. It has a wide range of applications such as noise suppression in switching circuits, I/O isolation for MCUs, etc.
Features:
- IC Number: PC817
- SMD Packaging.
- Number of channels: 1 channel
Specifications:
- Fall Time : 3μs
- Forward voltage : 1.2 V
- IC Number : PC817
- Isolation Voltage : 5000 Vrms
- Maximum Collector Current : 50 mA
- Maximum Collector Emitter Voltage : 80 V
- Mounting Type : SMD
- No. of Channels : 1 Channel
- Operating Temperature Range : -30°C to 100°C
- Package/Case : SMD-4
- Power Dissipation : 200 mW
- Product Type : Optocoupler
- Reverse Voltage : 6 V
- Rise Time : 4μs
- Length : 7 mm
- Height : 3.5 mm
- Width : 4.5 mm
