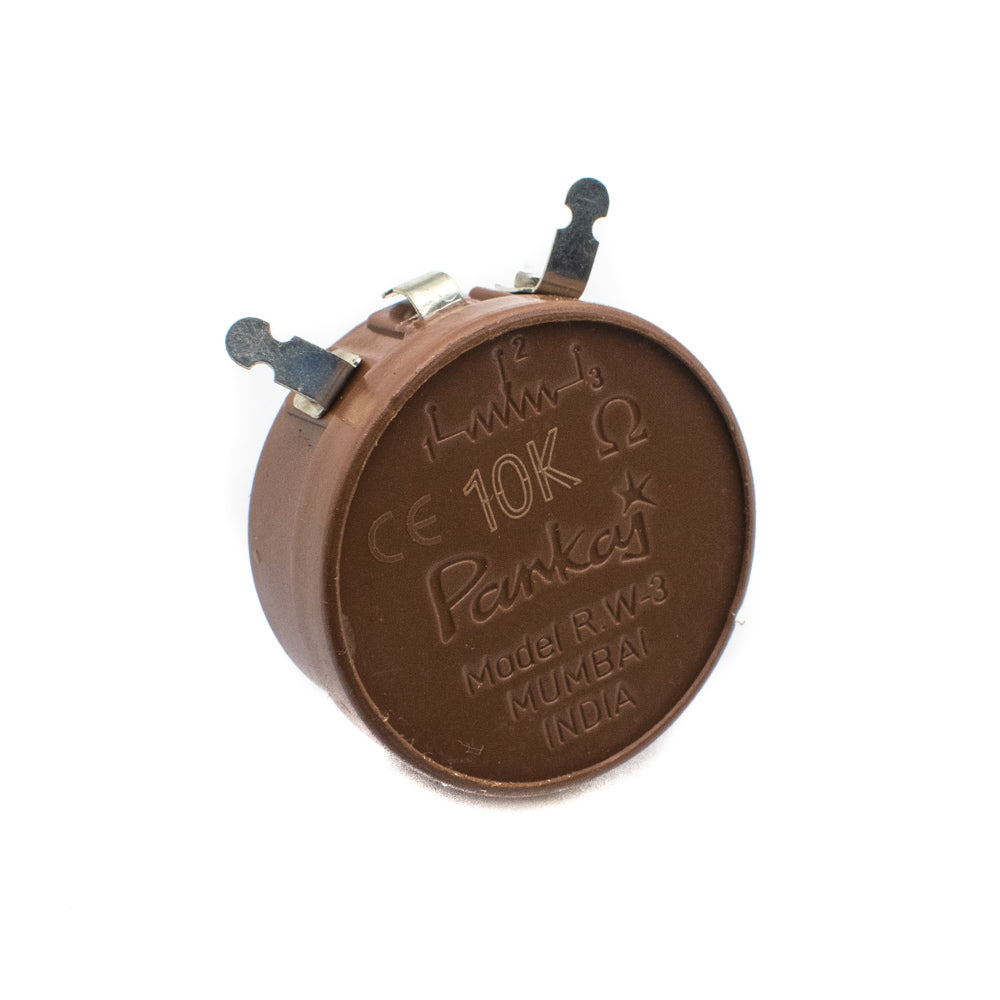

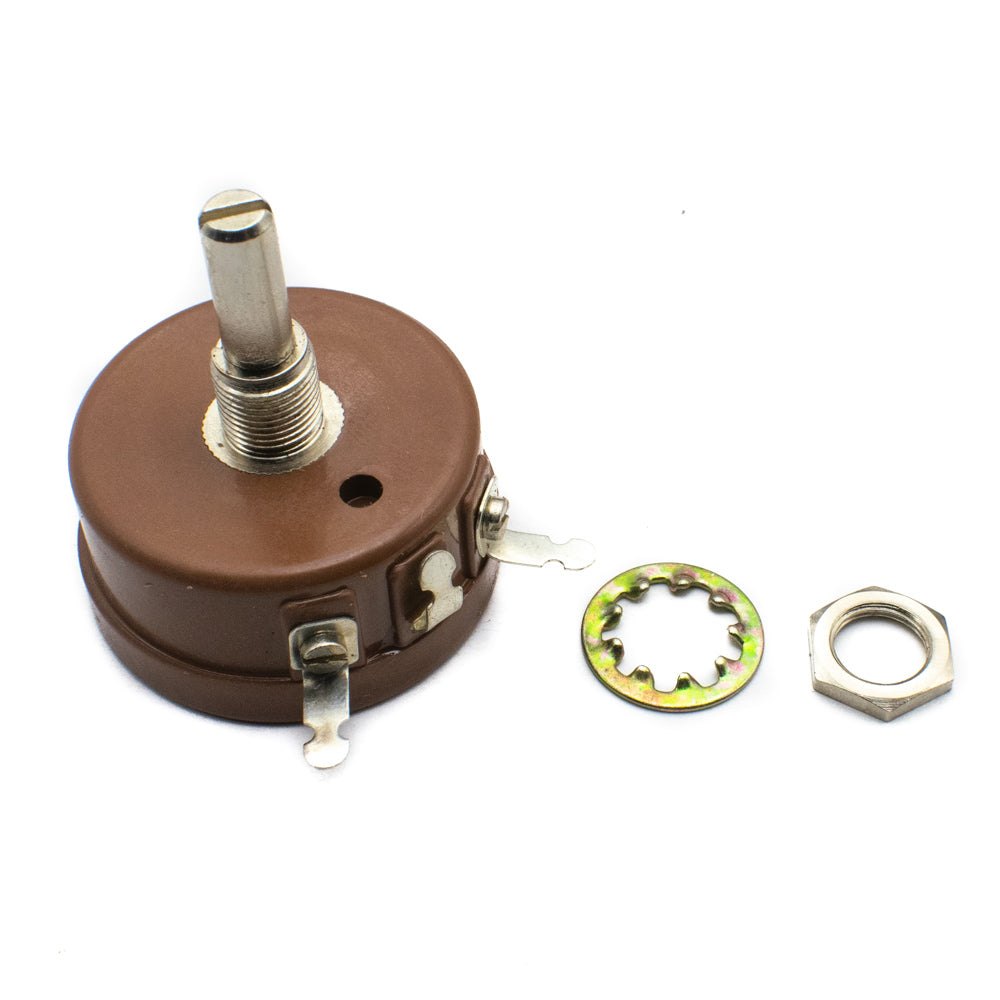

The most sought after product in Domestic and International market from PANKAJ, model R.W-3 marksit’s presence since over five decades. Offers best value for money in manual setting application.

Compatible Potentiometer Knob : AK-25

Specifications:

• Make: Pankaj
• Model - RW-3

• Resistance - 1K ohm

• Resistance Tolerance -+10% Standard, +5% Special

• Power Rating - 3 Watt @ 40°C

• End Resistance - 0.2Ω or 0.02 % which ever is greater

• Elec. Angle of Rotation - 265° + 15°

• Maximum Working Voltage - 500 VDC

• Insulation Resistance - 300 MΩ @ 500 VDC

• Voltage Proof - 1500 VAC for 1 Min. At Sea level

• TCR of Resistance Wire - 150 ppm/°C

• Rotational Life Expectancy - 20,000 Cycles at 15 RPM

• Temperature Range - 0 – 70°C.
• Shaft Diameter - 6.3mm

• Shaft Length- 25mm

• Housing Length: 20mm
• Housing Diameter 41mm

• Height- 44mm

• Bush Mounting- 3/38″ x 32 TPI, 10mm Length
• Mechanical Angle of Rot.- 285° + 15°

Features

• Brass Nickel Plated Bush & Spindle
• Tin Plated Terminals
• High Grade Engineering Moulded Plastic Housing

Applications

• Temperature Controllers,
• Power Supplies,
• Process Control Equipments,
• Test and Measuring Instruments,
• Control Panels,
• Offset Settings,
• Amplifier Speakers,
• AC/DC Motor Drives,
• Many more
