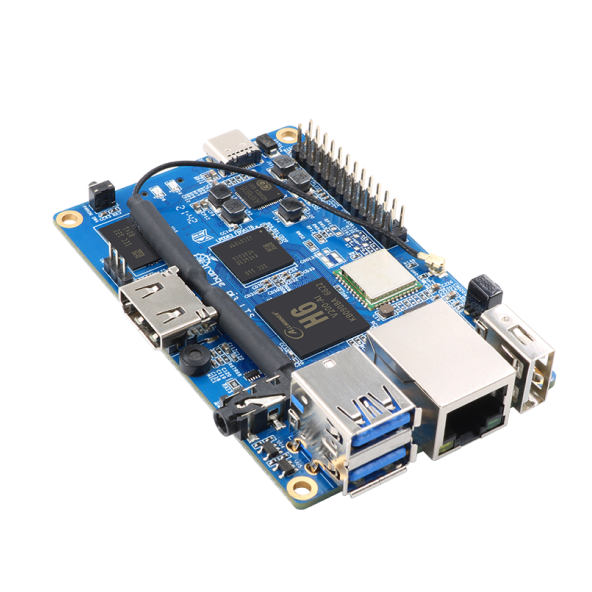

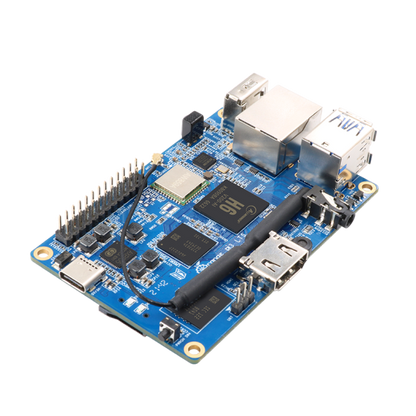

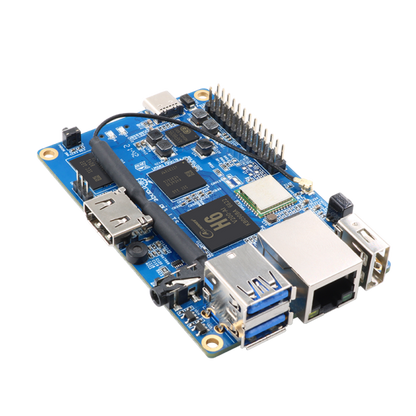

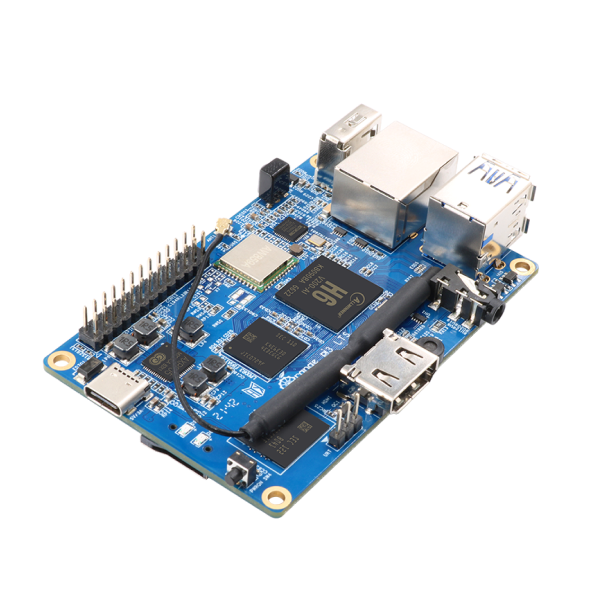

The Orange Pi 3 LTS is a powerful and cost-effective single-board computer based on the Allwinner H6 SoC. Featuring a quad-core Cortex-A53 CPU, 2GB RAM, built-in eMMC storage, Gigabit Ethernet, dual-band Wi-Fi, Bluetooth 5.0, and HDMI 2.0, it is well-suited for a variety of applications such as IoT systems, media streaming, lightweight desktop computing, and embedded development. Its compact design, stable performance, and open-source support make it a reliable Raspberry Pi alternative for developers and enthusiasts.
Orange Pi 3 LTS uses the Allwinner H6 SoC, and has 2GB LPDDR3 SDRAM, 8GB EMMC Flash. It can run Android 9,Ubuntu,Debian. Orange Pi 3 LTS offers a range of different ports, including HDMI output, 26pin headers, Gbps Ethernet port,1*USB 3.0, 2* USB2.0，etc. It is powered through Type-C. It is a good choice for applications that need strong networking performance.
Orange Pi 3 LTS is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
OrangePi 3 VS OrangePi 3 LTS - Dimension

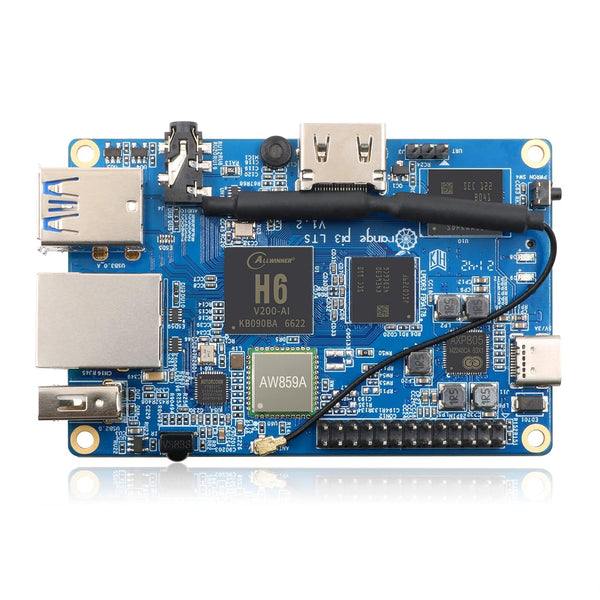

TOP VIEW
Bottom view
Orange Pi 3 LTS v1.2 pinout diagram
-
Smart home and IoT projects
-
Android-based media centers
-
Embedded Linux systems
-
Educational development board
-
Networking and remote monitoring
-
Allwinner H6 quad-core Cortex-A53, 1.8GHz
-
Mali-T720 GPU with OpenGL ES 3.1 and DirectX 11 support
-
2GB LPDDR3 RAM (shared with GPU)
-
Onboard 8GB eMMC + microSD slot
-
Gigabit Ethernet, Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0
-
HDMI 2.0a 4K video output, CVBS, and 3.5mm audio
-
USB 3.0, USB 2.0 ports, and Type-C power input
Specifications
| Component | Details |
|---|---|
| CPU | Allwinner H6, Quad-core 64-bit Cortex-A53 @ 1.8GHz |
| GPU | Mali T720, OpenGL ES 3.1/3.0/2.0/1.1, DirectX 11, ASTC |
| Power Management | AXP805 Chip |
| RAM | 2GB LPDDR3 (shared with GPU) |
| Storage | 8GB eMMC Flash, Micro SD card slot |
| Ethernet | Gigabit Ethernet (10/100/1000M), YT8531C Chip |
| Wi-Fi / Bluetooth | IEEE 802.11 a/b/g/n/ac + BT 5.0, 859 Chip |
| Video Output | HDMI 2.0a (up to 4Kp60), CVBS Composite Video |
| Audio Output | HDMI Audio, 3.5mm Audio Jack |
| Power Supply | 5V 3A via USB Type-C |
| USB Ports | 1 × USB 3.0, 2 × USB 2.0 |
| GPIO Header | 26-pin: I2C, SPI, UART, multiple GPIOs |
| Debug Port | UART-TX, UART-RX, GND |
| Buttons | Power Button (SW4) |
| LEDs | Power LED, Status LED |
| IR Receiver | Supported |
| Supported OS | Android 9.0, Ubuntu, Debian |
| Dimensions | 85mm × 56mm |
| Weight | 45g |
Package Includes
-
1 × Orange Pi 3 LTS Board
-
1 × Wi-Fi/Bluetooth Antenna (if included)
-
1 × Quick Start Guide (optional)
