Operational Amplifier Trainer Kit – Learn Op-Amp Circuits Hands-On

Master the fundamentals of operational amplifiers with this comprehensive Operational Amplifier Trainer Kit, built around the industry-standard 741 IC Op-Amp. Designed for students, educators, and electronics enthusiasts, this kit provides a structured, experiment-ready platform to explore and understand real-world op-amp applications.

What's in the Box

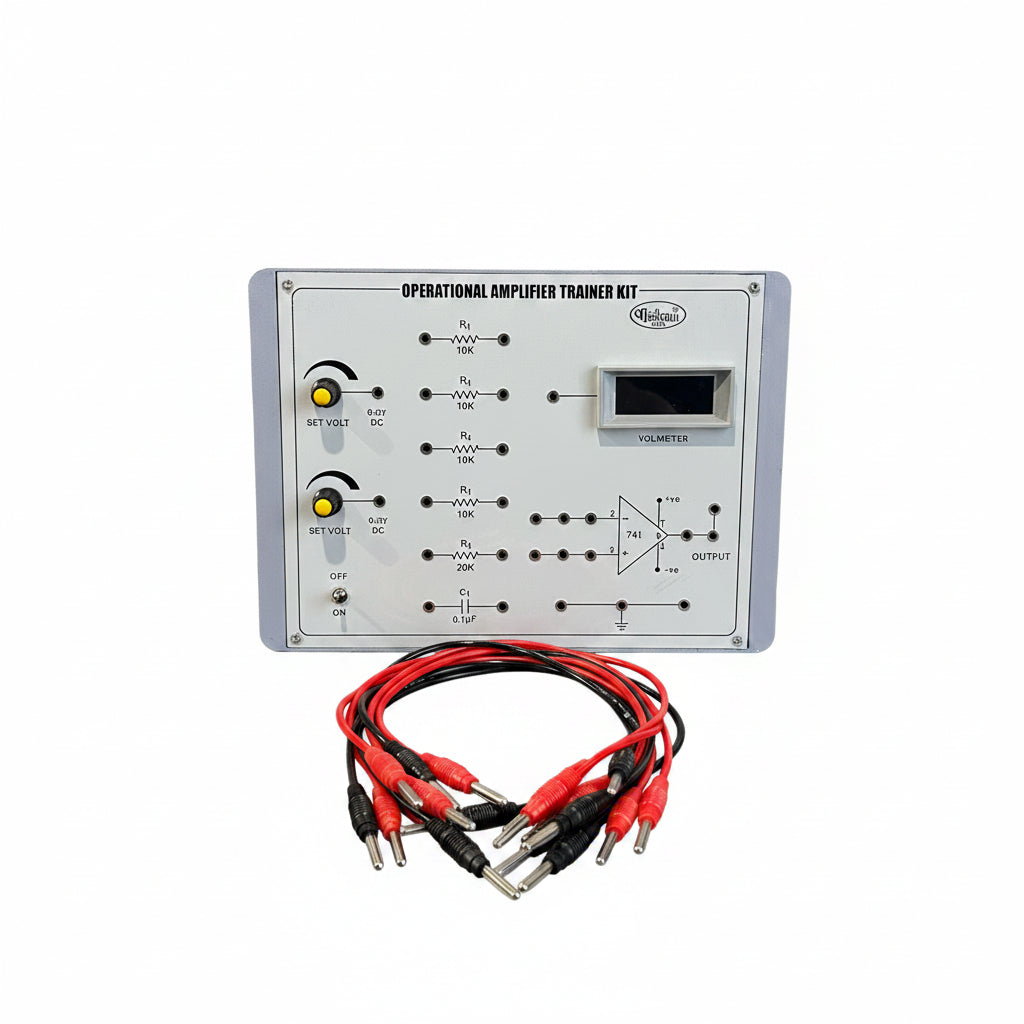

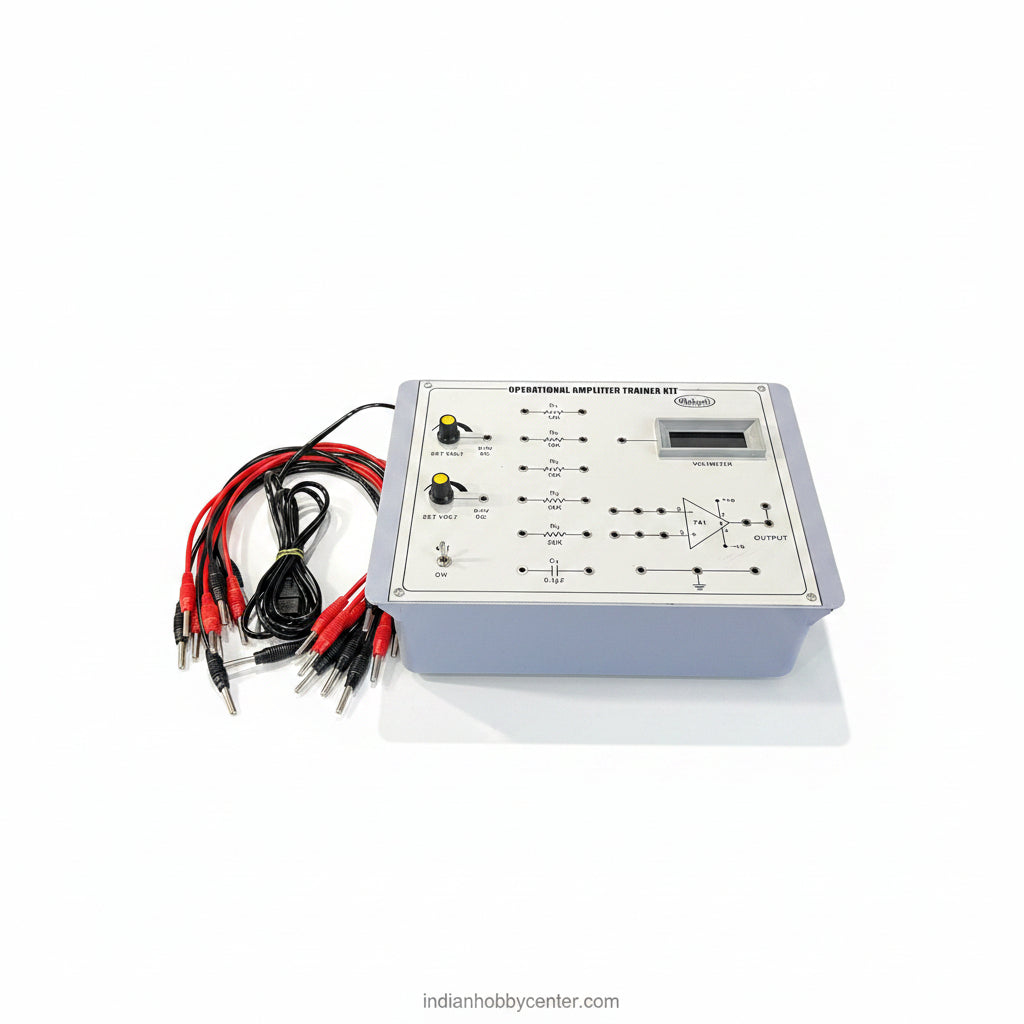

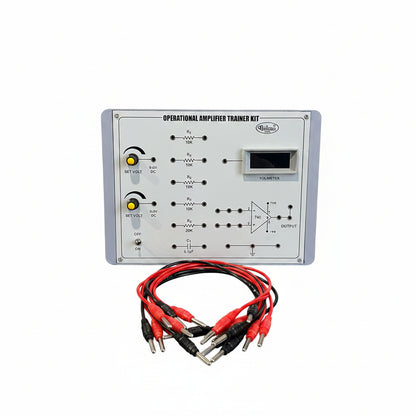

• Trainer board with clearly labeled circuit diagram
• Built-in digital voltmeter for real-time voltage measurement
• Dual adjustable DC voltage sources (0–5V DC) with SET VOLT controls
• Pre-mounted resistors: R1–R4 (10KΩ each)  R5 (20KΩ) for gain configuration
• Capacitor C1 (0.1µF) for frequency response experiments
• ON/OFF power switch
• Set of patch cords (red and black banana plug cables) for circuit connections
• Dedicated OUTPUT terminal for signal measurement

Key Features

• Based on the 741 Op-Amp IC — the most widely used op-amp in education and industry
• Supports experiments on inverting amplifier, non-inverting amplifier, summing amplifier, voltage follower, and more
• Compact, durable panel with silk-screened circuit layout for easy understanding
• Dual power supply inputs with independent voltage adjustment
• Ideal for engineering lab practicals, polytechnic courses, and DIY electronics learning

Perfect For

Engineering students (ECE/EEE), polytechnic institutes, school science labs, and hobbyists looking to build a solid foundation in analog electronics and op-amp circuit design.

What's in the Box

• 1 × Operational Amplifier Trainer Kit

• Instruction Manual with experiment procedure & observation tables

• Set Of Patch Cord
