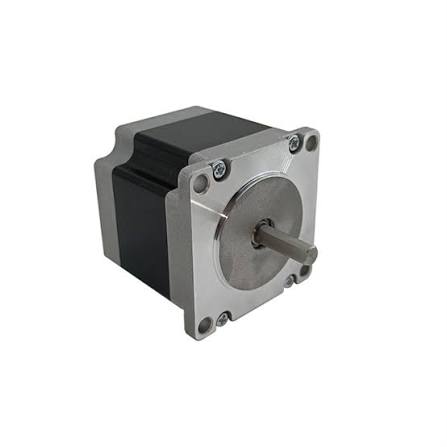

NEMA 23 JK57HS76-2804 Stepper Motor (18.9 kg-cm) - D Shaft
NEMA 23 JK57HS76-2804 Stepper Motor (18.9 kg-cm) - D Shaft
Couldn't load pickup availability
Specifications:
- Model : JK57HS76-2804
- Rated Voltage (V) : 3.2
- Current/Phase (A) : 2.8
- Resistance/Phase (Ω) : 1.13
- Inductance/Phase (mH) : 3.6
- Holding Torque (kg-cm) : 18.9
- Detent Torque (kg-cm) : 0.68
- Number of Leads : 4
- Rotor Inertia : 480 g·cm²
- Frame Size (mm) : 57 × 57
- Length (mm) : 76
- Shaft Length (mm) : 20.6
- Shaft Diameter (mm) : 6.35
- Step Angle : 1.8°
- Step Angle Accuracy : ±5% (full step, no load)
- Resistance Accuracy : ±10%
- Inductance Accuracy : ±20%
Features:
-
NEMA 23 standard frame with high 18.9 kg-cm holding torque
-
Bipolar hybrid design for improved torque and efficiency
-
1.8° step angle for precise positioning and smooth motion
-
Rugged construction for long-term durability in industrial use
-
Ideal for CNC machines, 3D printers, robotics, and automation projects
The NEMA 23 JK57HS76-2804 is a high-performance bipolar hybrid stepper motor designed for precision motion control in CNC machines, 3D printers, robotics, and other automated systems. Featuring a standard NEMA 23 frame size (57 × 57 mm) and a robust 18.9 kg-cm holding torque, this motor delivers accurate positioning, smooth rotation, and consistent performance in demanding industrial environments. Its 1.8° step angle ensures 200 precise steps per revolution, making it an excellent choice for applications where accuracy and reliability are essential.
