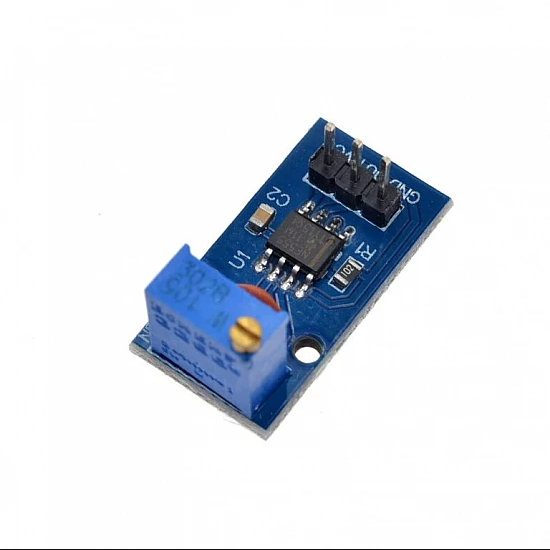

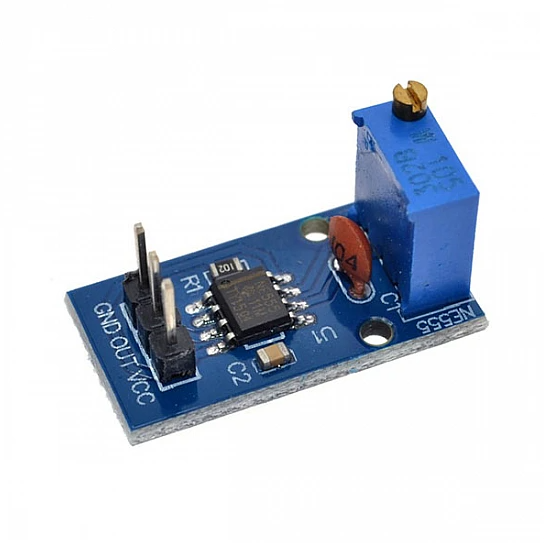

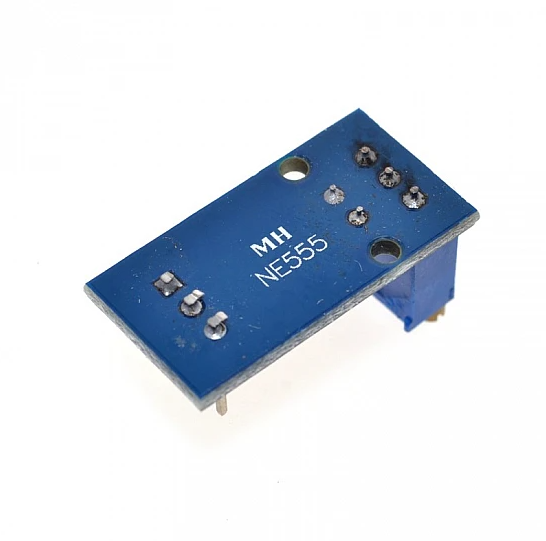

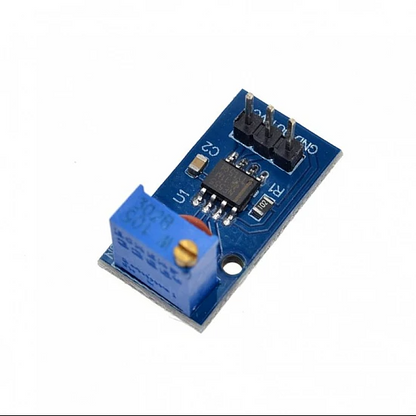

NE555 Frequency Adjustable Pulse Generator Module

NE555 Frequency Adjustable Pulse Generator Module is a Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator. You can choose the output frequency range. The frequency and duty cycle cannot be adjusted independently; changing the duty cycle also affects the frequency. The output square wave duty ratio is around 50% for single-channel signals.

Specifications:

• IC Chip  :  NE555
• Input Supply Voltage  : 5 to 12V
• Output Current  :  15mA for 5V & 35mA for 12V
• Dimensions (LxWxH)  :  25x13x12mm

Features:

• It has a NE555 chip onboard
• A single channel output with a duty cycle square wave that is about 50%.
• The output frequency can be changed by controlling the resistance onboard.

Package Includes:

1 x NE555 Frequency Adjustable Pulse Generator Module
