MOSFET Characteristics Apparatus Trainer Kit – Study N-Channel MOSFET Behaviour
Explore the electrical characteristics of a Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) with this purpose-built MOSFET Characteristics Apparatus Trainer Kit. Designed for engineering and polytechnic students, this self-contained unit allows you to plot drain characteristics (ID vs VDS) and transfer characteristics (ID vs VGS) with precision and ease.
What's in the Box

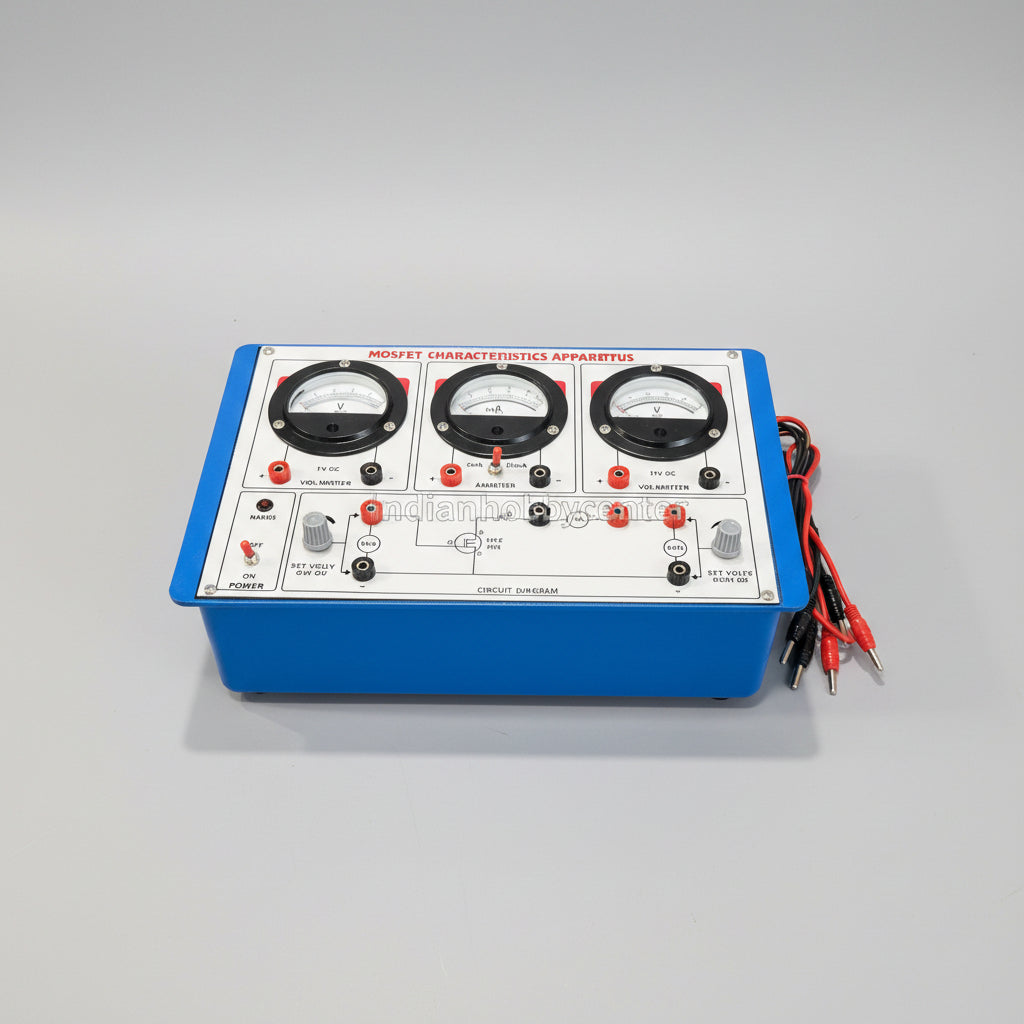

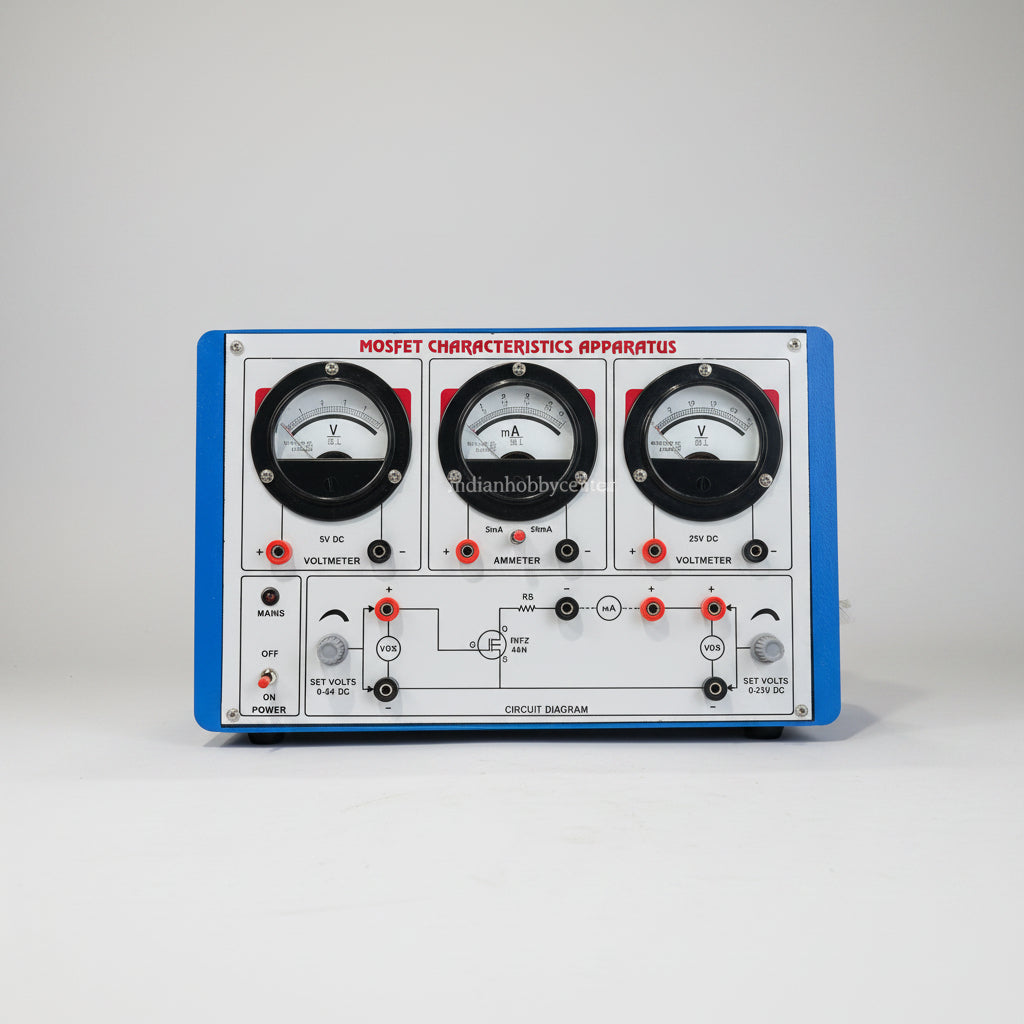

- Rugged blue metal enclosure with silk-screened front panel
- Two analog voltmeters — 5V DC (Gate circuit) and 25V DC (Drain circuit)
- One analog ammeter — dual range 5mA / 25mA for drain current measurement
- Dual independent DC power supplies:
- VGS supply: 0–5V DC (adjustable via potentiometer)
- VDS supply: 0–25V DC (adjustable via potentiometer)
- Built-in N-channel MOSFET (IRF Z44N) on the circuit board
- Series resistor RB in the gate circuit for protection
- Clearly printed circuit diagram on the panel for easy reference
- MAINS ON/OFF power switch with indicator
- Banana plug terminals (red/black) for all measurement points
Key Features
- Perform drain characteristics (Output characteristics: ID vs VDS at constant VGS)
- Perform transfer characteristics (ID vs VGS at constant VDS)
- Determine key MOSFET parameters: Transconductance (gm), Drain resistance (rd), and Amplification factor (μ)
- Dual-range ammeter for accurate low and high current readings
- Compact, durable design suitable for repeated lab use
- Ideal for ECE, EEE, and Physics lab practicals
Experiments You Can Perform
- Plot drain (output) characteristics of N-channel MOSFET
- Plot transfer (mutual) characteristics of N-channel MOSFET
- Calculate transconductance and drain resistance from characteristic curves
- Study the ohmic, saturation, and cut-off regions of MOSFET operation
Perfect For
Engineering students (ECE/EEE/Physics), polytechnic institutes, ITI labs, and electronics hobbyists who want a hands-on understanding of MOSFET device physics and circuit behaviour.
What's in the Box
- 1 × Mosfet Trainer Kit
- Instruction Manual with experiment procedure & observation tables
- Set Of Patch Cord
