MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module 3D Printer
MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module 3D Printer
Couldn't load pickup availability

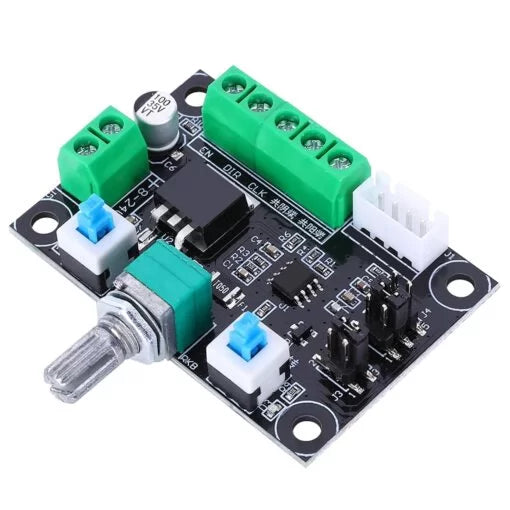

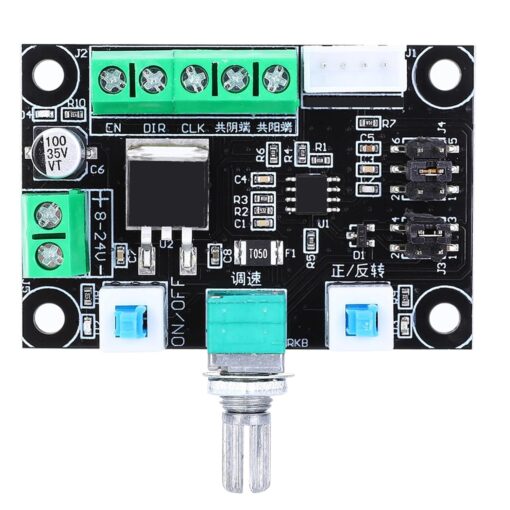

This 3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module is a pulse generating module, which used as a signal for stepper drivers. To control the stepper motor, it must be equipped with the driver. The module can be used as Easy controller + stepper driver + stepper motor + DC power composed a simple control platform.

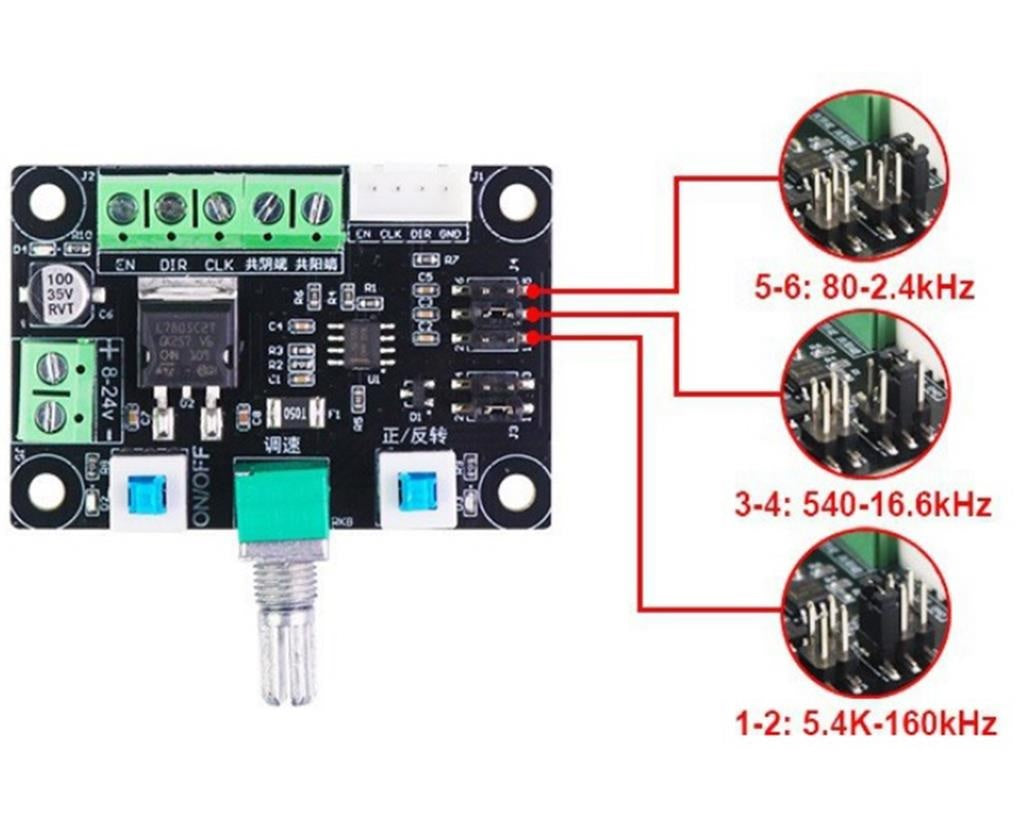

3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module consists of 3 kinds of frequency signal, including 5.4k-160khz, 540-16.6khz, 80-2.4khz, which can be chosen. Support generating a pulse and PWM signal, support skipping stitch choice. For frequency measurement there are two ports of PUL and common-cathode (or common anode) can be measured.

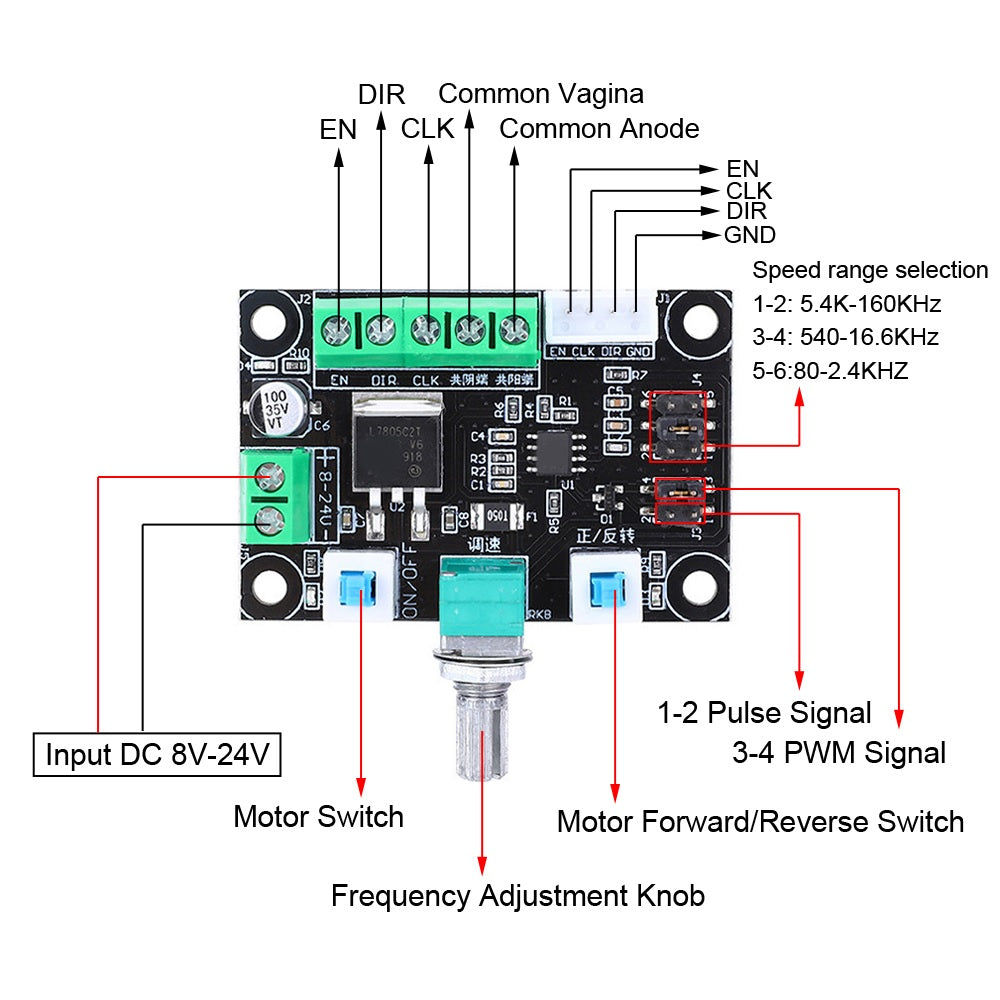

Different stepping motor driver different port sign, but same function
EN=ENA=FREE Enable
PUL=PULS=CLK Pulse
DIR=CW=CWW Direction
Common anode connection (connect with B)
EN+ PUL+ DIR+ all link together to common anode port
EN- connect to EN
PUL- connect to CLK
DIR- connect to DIR
Common cathode connection (connect with B)
EN- PUL- DIR- all link together to common cathode port
EN+ connect to EN
PUL+ connect to CLK
DIR+ connect to DIR
Specifications:
- Item Type: Stepper Motor Controller
- Power Input: 8-24V
- Length (cm): 5.8
- Width (cm): 3.8
- Weight (g): 15g
Package Includes:
- 1 x MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
