Using a sensor with external resistors full bridge measurement range of a sensor range: 50kg; Higher requirements for external resistor
The use of only two full-bridge sensors measuring range is the range of the two sensors and: 50kgx2 = 100kg

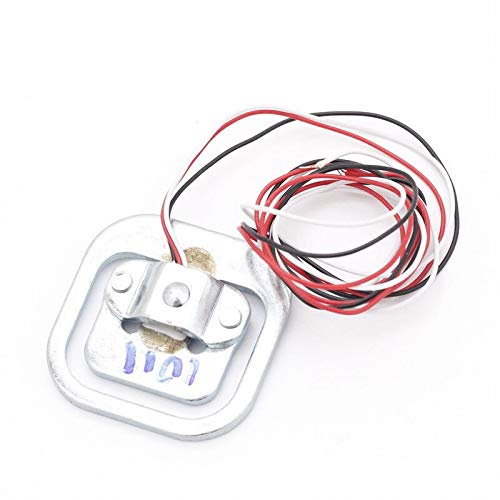

50Kg pressure micro scale weighing sensor resistance strain half bridge sensor body load cell. Feature - when measuring, the correct force is applied to the outer side of the strain e-shaped beam portion of the sensor (i. E., A strain gauge affixed to the middle, with a beam of white plastic cover arm) and the outside edges to form a shear force in the opposite direction, i. E., In the middle of strain beam bending necessary changes can occur under stress, strain beam side by another force can not have a barrier. The sensor use the following three methods: 1. Using a sensor with external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for external resistor. 2. The use of only two full-bridge sensors measuring range is the range of the two sensors and: 50kgx2 = 100kg. 3. The use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg. Size: 34mm x 34mm. Model: weighing sensor strain of half-bridge sensor.
