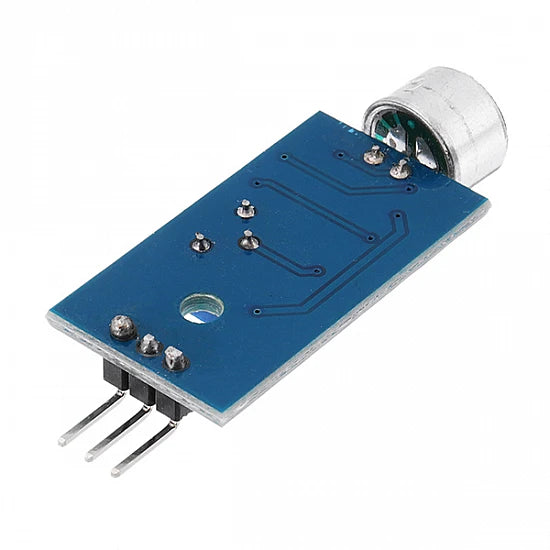

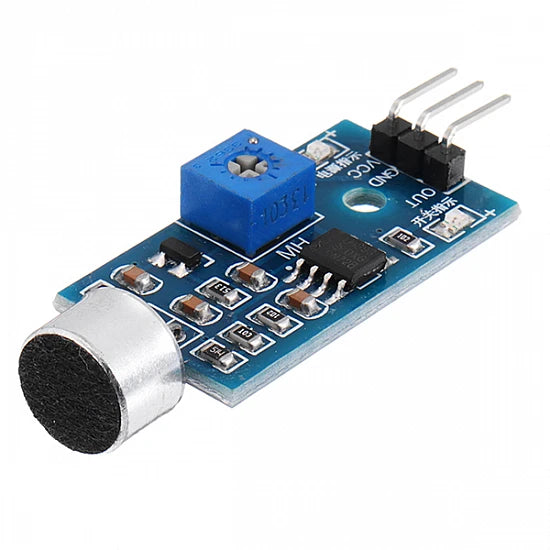

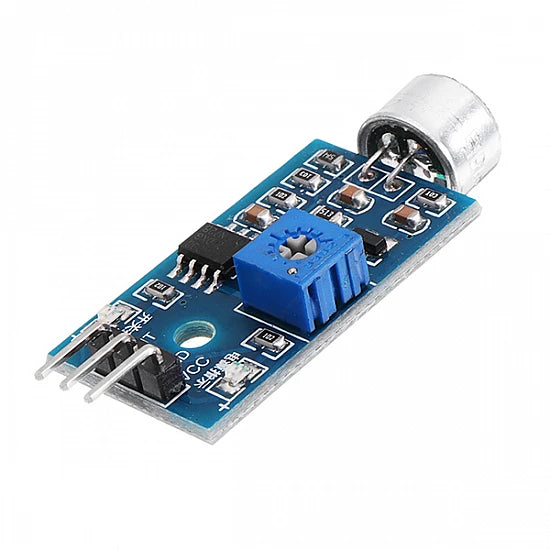

Microphone Sound Detection Sensor Module
Microphone Sound Detection Sensor Module
Regular price
Rs. 55.00
Regular price
Sale price
Rs. 55.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
The sound detection sensor module for Arduino detects whether the sound has exceeded a threshold value. Sound is detected via microphone and fed into an LM393 op-amp. The sound level set point is adjusted via an onboard potentiometer. When the sound level exceeds the set point, an LED on the module is illuminated and the output is sent low.
Features:
- Operating voltage 3.3V-5V
- Outputs digital switching output (high and low levels 0 and 1
- Operating current (Vcc=5V): 4-8mA
- Microphone sensitivity (1Khz): 52-48dB
- Microphone Impedance: 2.2KΩ
- Microphone Frequency: 16-20Khz
- Microphone S/N ratio: 54dB
- Signal output indication
- Single-channel signal output
- Outputs low level and the signal light when there is sound
Package Includes:
1 x Microphone Sound Detection Sensor Module
