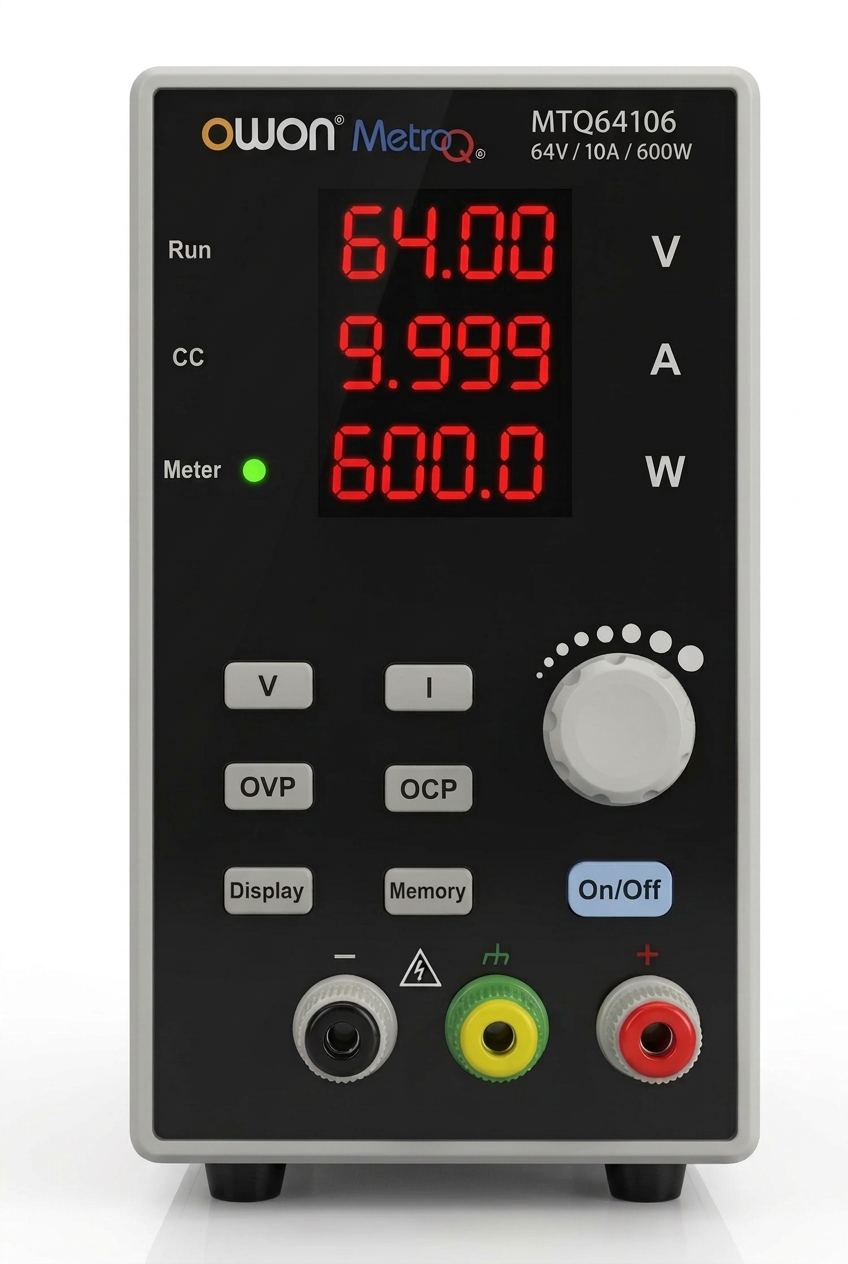

MetroQ MTQ64106 Linear Variable DC Power Supply, 64V 10A, 600W

Bring precise, adjustable power to your electronics workbench with the MetroQ MTQ64106 Linear Variable DC Power Supply. With a rated output of 600W, an adjustable voltage range of 0–64V and current range of 0–10A, it puts voltage, current and power readings together on a single display.

Set up your next bench test, monitor the output at a glance and recall saved settings when you return to a familiar task. Its compact 82 × 142 × 226 mm chassis helps keep more of your workbench available for the project itself.

Key Features

• Wide-range output: 600W rated power with four power/voltage/current combinations.
• Simultaneous readings: Triple display shows voltage, current and power together.
• Automatic CC/CV switching: Constant-current and constant-voltage operating modes.
• Fine adjustment: 10mV / 1mA setting and readback resolution.
• Memory settings: Save and recall settings for repeat tasks.
• Isolated output: Built-in isolation transformer provides a floating output.
• Multiple protections: Over-voltage, over-current and over-temperature protection (OVP, OCP, OTP).
• Temperature-controlled cooling: Fan speed adjusts with temperature.

Technical Specifications

• Model: MTQ64106
• Rated output voltage: 0–64V
• Rated output current: 0–10A
• Rated power: 600W
• Load regulation: ≤33mV (CV); ≤30mA (CC)
• Line regulation: ≤33mV (CV); ≤20mA (CC)
• Voltage ripple and noise: ≤60mVrms
• Current ripple and noise: ≤40mArms
• Setting and readback resolution: 10mV / 1mA
• Setting and readback accuracy: ≤0.2% + 0.2% FS
• Transient recovery time: ≤5.0ms (10%–90% rated load)
• Protection: OVP, OCP, OTP
• Display: 3 × 4-bit LED
• Cooling: Fan cooling with temperature-controlled speed
• Dimensions (W × H × D): 82 × 142 × 226 mm
• Device weight: 1.80kg

Package Includes

• 1 × MetroQ MTQ64106 Variable DC Power Supply
• 1 × Power cord
