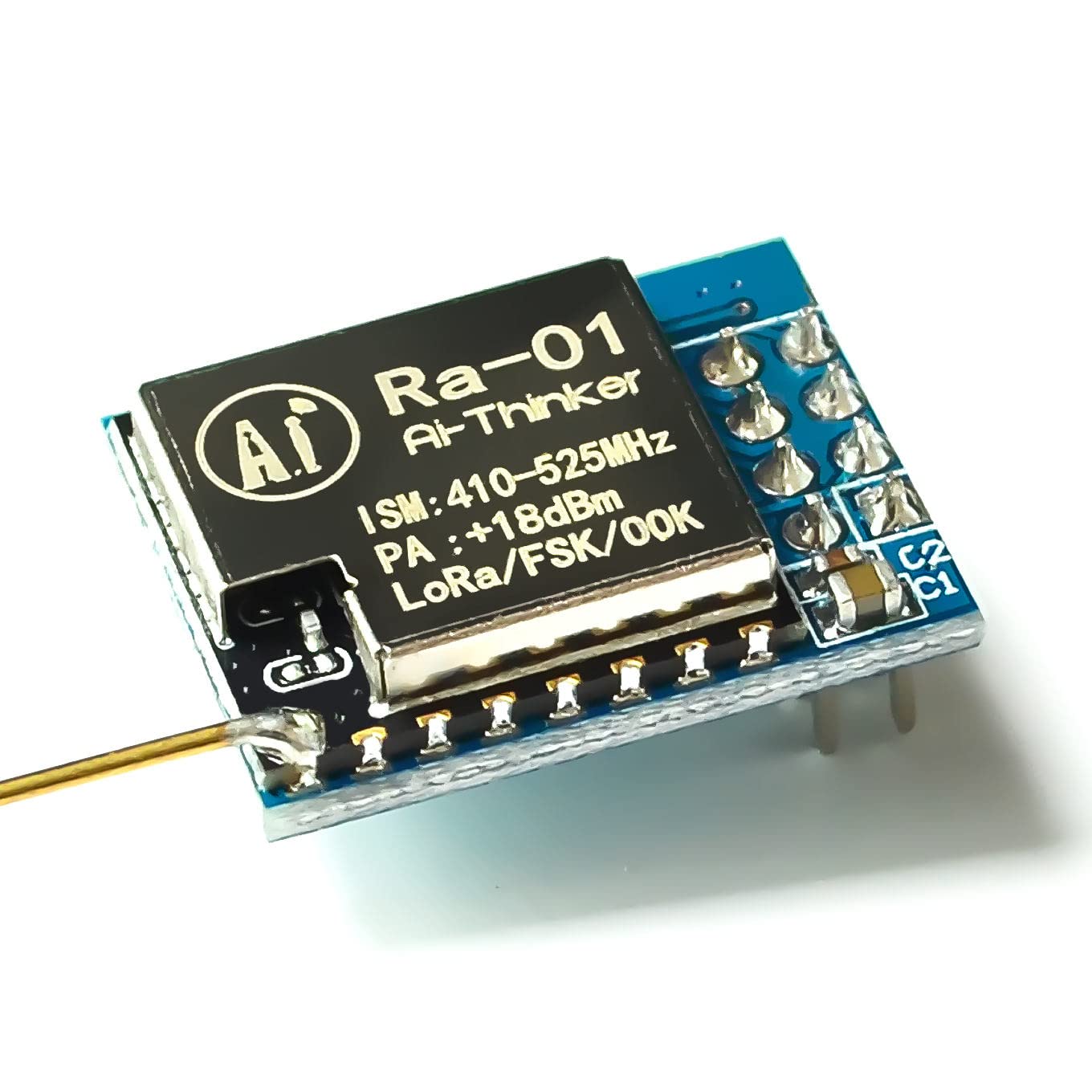

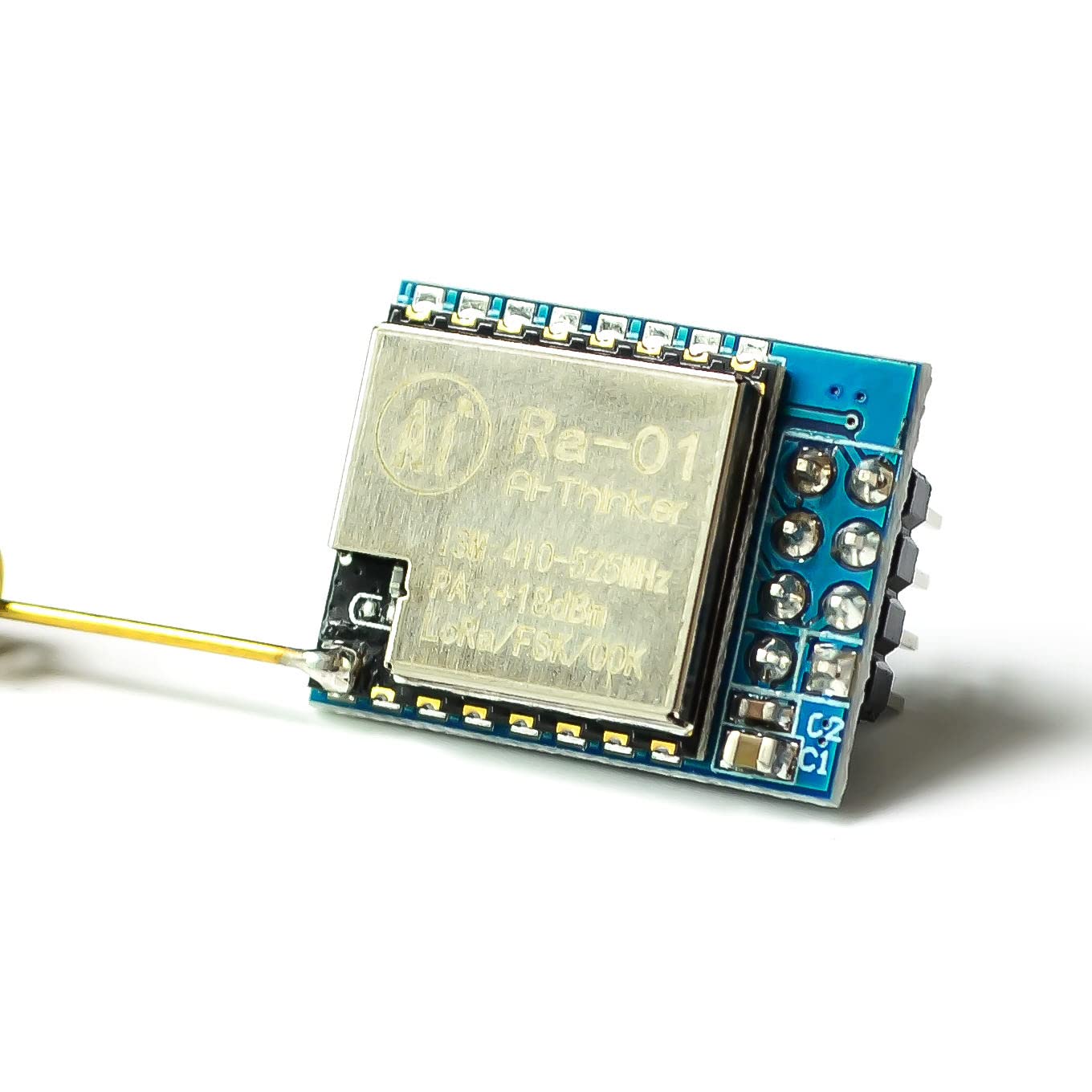

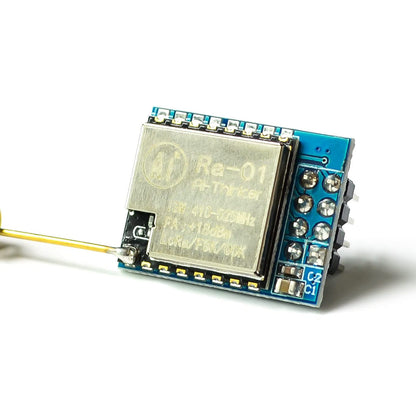

LoRa AI-Thinker Ra-01 433MHZ Long Range RF Wireless Spread Spectrum Transmission Module

Rs. 499.00 Rs. 850.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441


  1. Manufacturer: Ai-Thinker
  2. Half-duplex SPI communication
  3. Support FSK, GFSK, MSK, GMSK, LoRaTM and OOK Modulation Mode
  4. 127dB RSSI wave range.
  5. Automatically detect RF signal, CAD mode and super high-speed AFC
  6. Wireless Standard: 433MHz
  7. Frequency range: 420 – 450MHz
  8. Port: SPI/GPIO
  9. Operating Voltage: 1.8 – 3.7V, default 3.3V

Ra-01 is a wireless transmission module based on SEMTECH's SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has strong anti-interference ability and has the consumption function of air wake-up call. It can cover thousands of people in the district environment, especially suitable for meter reading, smart home, burglar alarm equipment. The Ra-01 module of the LoRa series is designed and developed by AI-THINKER Technology.

The SX1278 RF module is mainly used for long-range wide-spectrum communications. It can resist minimizing current consumption. Thanks to SEMTECH's patented LoRa ™ modulation technology, the SX1278 has a high sensitivity of -148 dBm with an output power of +18 dBm, a long transmission distance, and high reliability.

At the same time, compared with traditional modulation technology, LoRa ™ modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme cannot consider distance, interference, and power consumption at the same time.


  1. Lora ™ Spread Spectrum Modulation Technology
  2. Constant RF power output at a voltage change of +18dBm-80mW
  3. High sensitivity: up to -148dBm
  4. Half-duplex SPI communication
  5. Programmable bitrates up to 300 kbps
  6. Supports FSK, GFSK, MSK, GMSK, LoRa ™, and OOK modulation modes
  7. 127dB RSSI dynamic range
  8. Automatic detection of RF signals, CAD mode and very high-speed AFC
  9. Packet engine with CRC up to 256 bytes

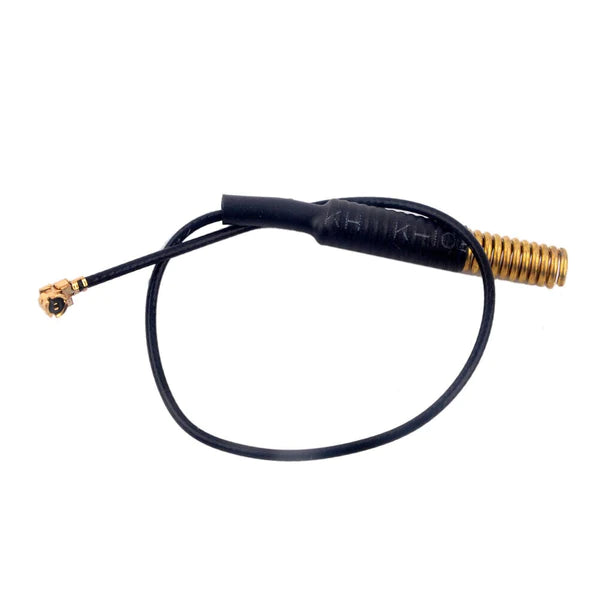

  10. Spring Antenna

  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- Bluedart, Amazon Shipping, Ekart Logistics, Delhivery & India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
