Lithophane LED Backlight Panel, Warm White, 5V, 48 LEDs, 144 × 48 mm (Pack of 2)

48 LED Warm White Backlight Boards for Lithophane & DIY Lighting Projects

Bring your 3D-printed lithophanes and illuminated creations to life with this pack of two LED backlight boards. Each panel features 48 SMD LEDs arranged across a 144 mm × 48 mm aluminium PCB, providing bright, evenly distributed warm white illumination in a compact rectangular format. With 5 V DC operation and PH2.0 2-pin connections, these boards are a practical starting point for custom light boxes, backlit frames and maker projects.

Imagine placing your finished lithophane in a custom-built frame and switching on the backlight to reveal its image and fine details. These panels can be incorporated into a suitable enclosure, allowing you to build a personalised illuminated display around your print.

Key Features

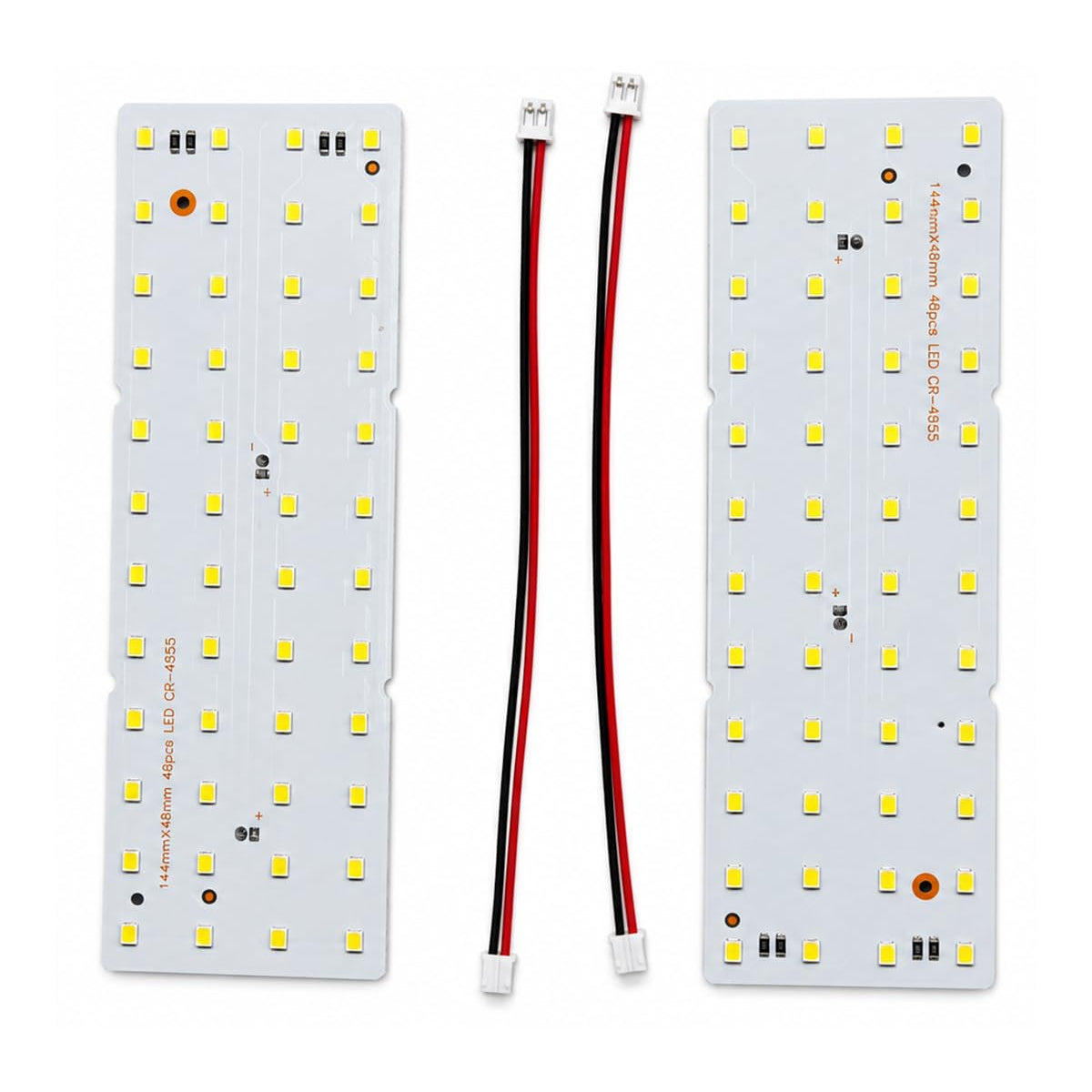

• 48 LEDs per board: Each panel contains 48 surface-mount LEDs, giving you 96 LEDs across the two-board pack.
• Warm white light: Creates a warm-toned backlight for personalised lithophanes and decorative displays.
• Evenly distributed illumination: The LED layout spreads light across the board surface for backlighting applications. Final illumination depends on your enclosure, panel spacing and diffuser arrangement.
• Compact rectangular size: Each board measures 144 mm long × 48 mm wide, making it easy to plan a matching frame or project housing.
• 5 V DC input: Designed for connection to a compatible 5 V DC power supply.
• Aluminium PCB construction: A rigid aluminium board provides the base for the LED array.
• PH2.0 2-pin connectors: Connector-based wiring simplifies compatible power and board-link connections.

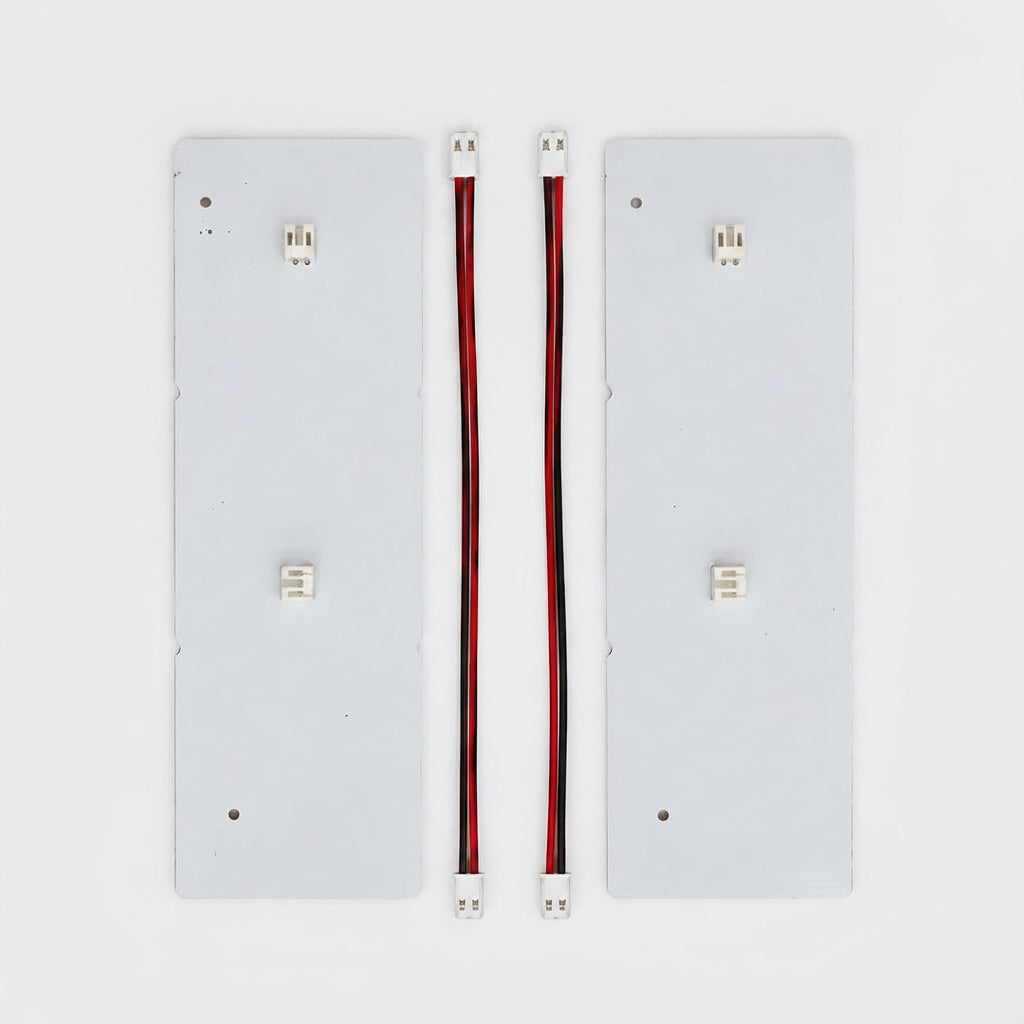

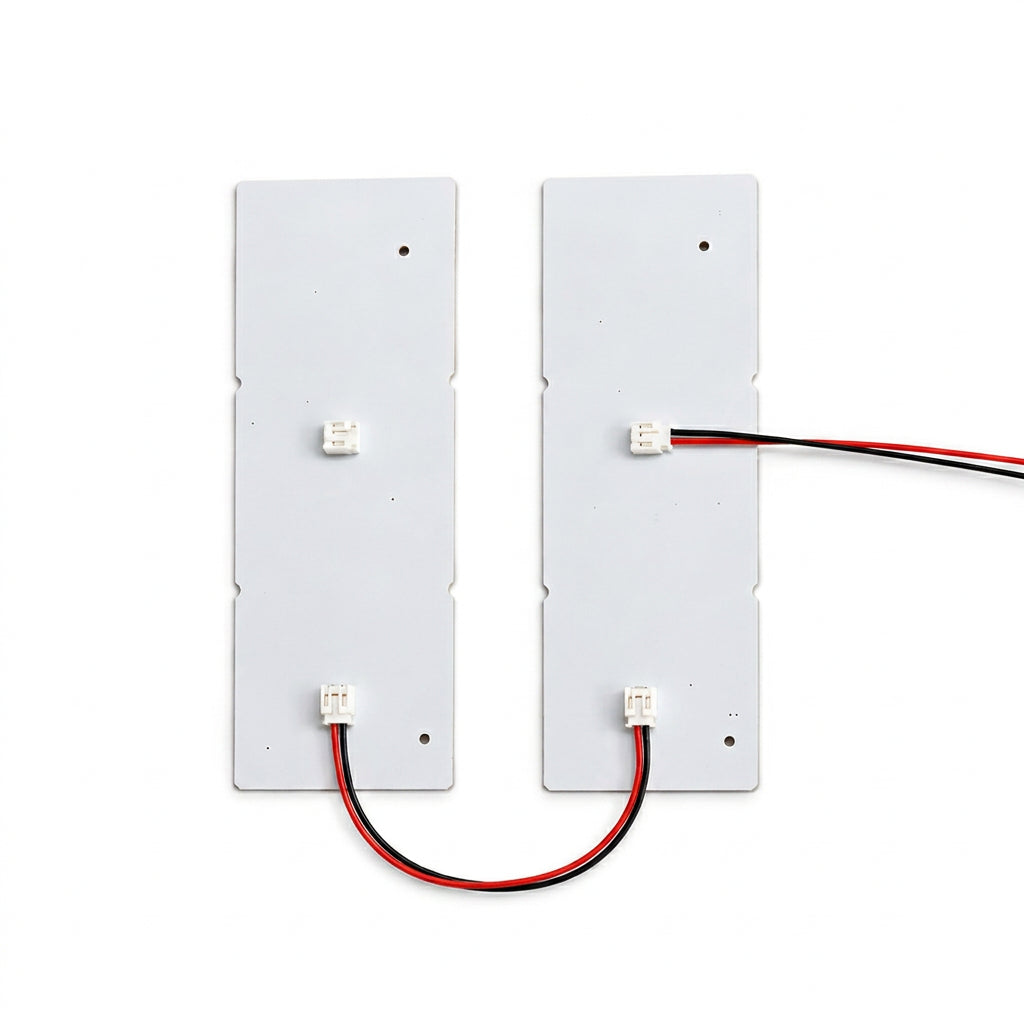

• Two cables included: Supplied with two PH2.0 cables for input and interconnection, as shown in the reference image.

PH2.0 Connector Cables

The included cables feature PH2.0 2-pin connectors with red and black wires. They are intended for LED board power connections and linking compatible boards. Check the connector orientation and the polarity markings on the board and supply before connecting; do not rely on wire colour alone.

Optional accessory: power cable with switch (sold separately).

Technical Specifications

• Product type: LED panel / backlight board
• Model reference: CR-4955
• Boards per pack: 2
• Cable per pack: 2
• LED count: 48 per board; 96 in total
• LED type: SMD LED
• Board dimensions (L × W): 144 mm × 48 mm per board
• Light colour: Warm White
• Input voltage: 5 V DC
• Connector: PH2.0, 2-pin
• Board material: Aluminium PCB
• Cable wire colours: Red and black

Suggested Applications

• Custom 3D-printed lithophane frames and light boxes
• DIY backlit artwork and decorative displays
• Illuminated model-making and hobby projects
• Prototype lighting assemblies and educational maker projects

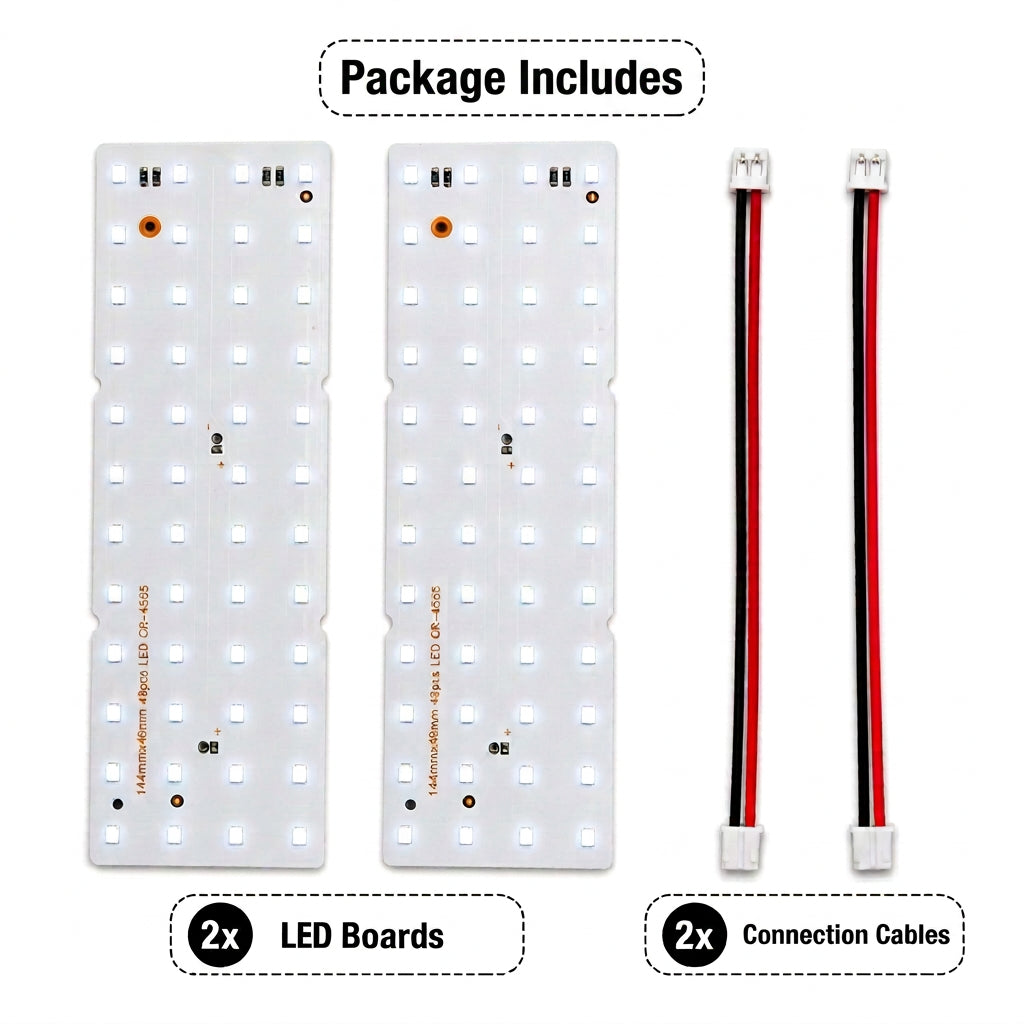

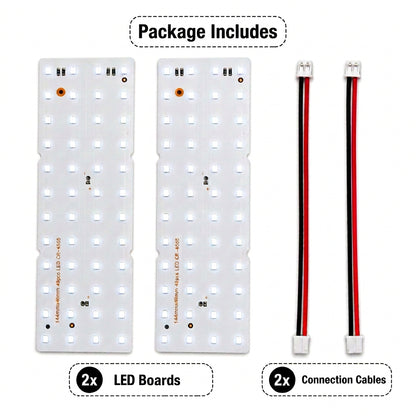

Package Contents

• 2 × 48 LED backlight boards – Warm White
• 2 × PH2.0 connector cables for input and interconnection

Optional accessory: Power Cable with switch (sold separately).

Installation & Power Notes

Use a compatible 5 V DC supply and confirm correct polarity before switching on. Do not connect the boards directly to mains electricity or a higher-voltage supply. Disconnect power before changing any wiring, and mount the boards so that exposed electrical contacts cannot short against conductive surfaces.
