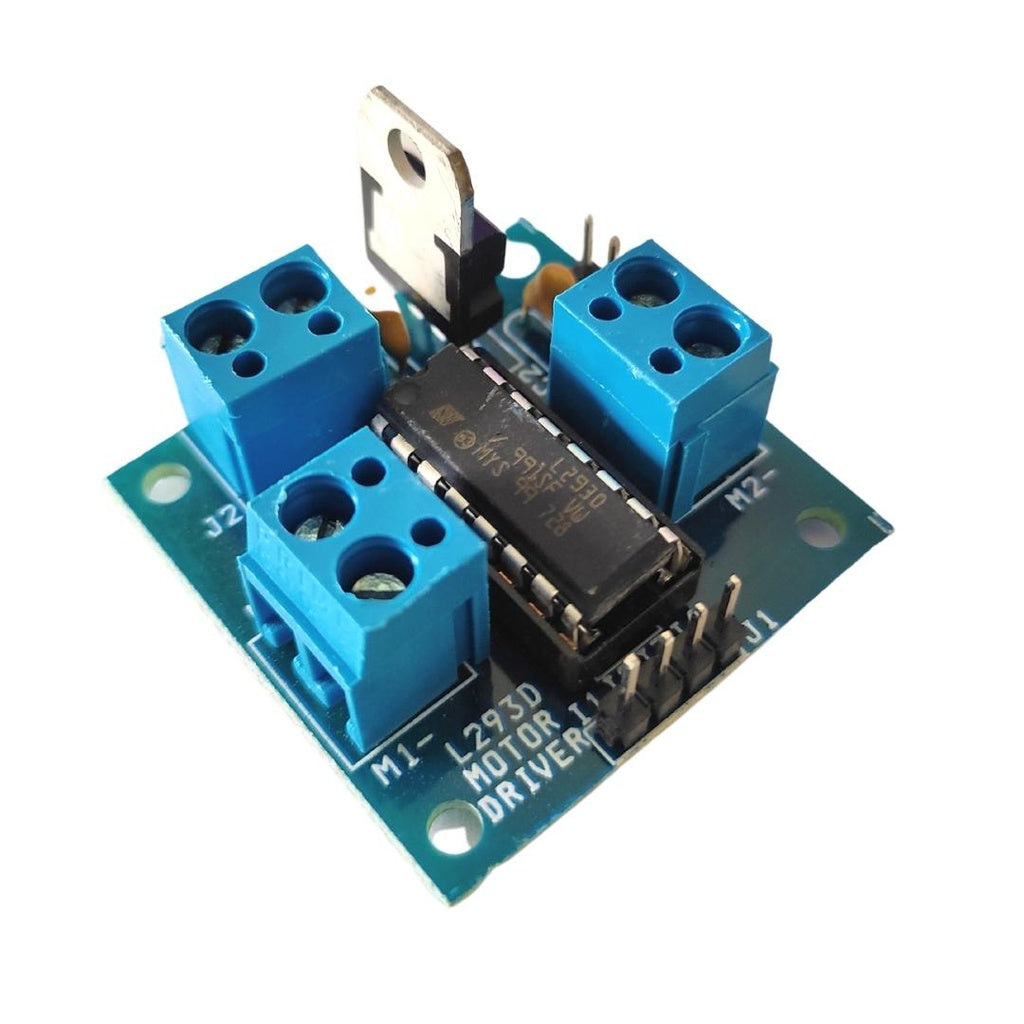

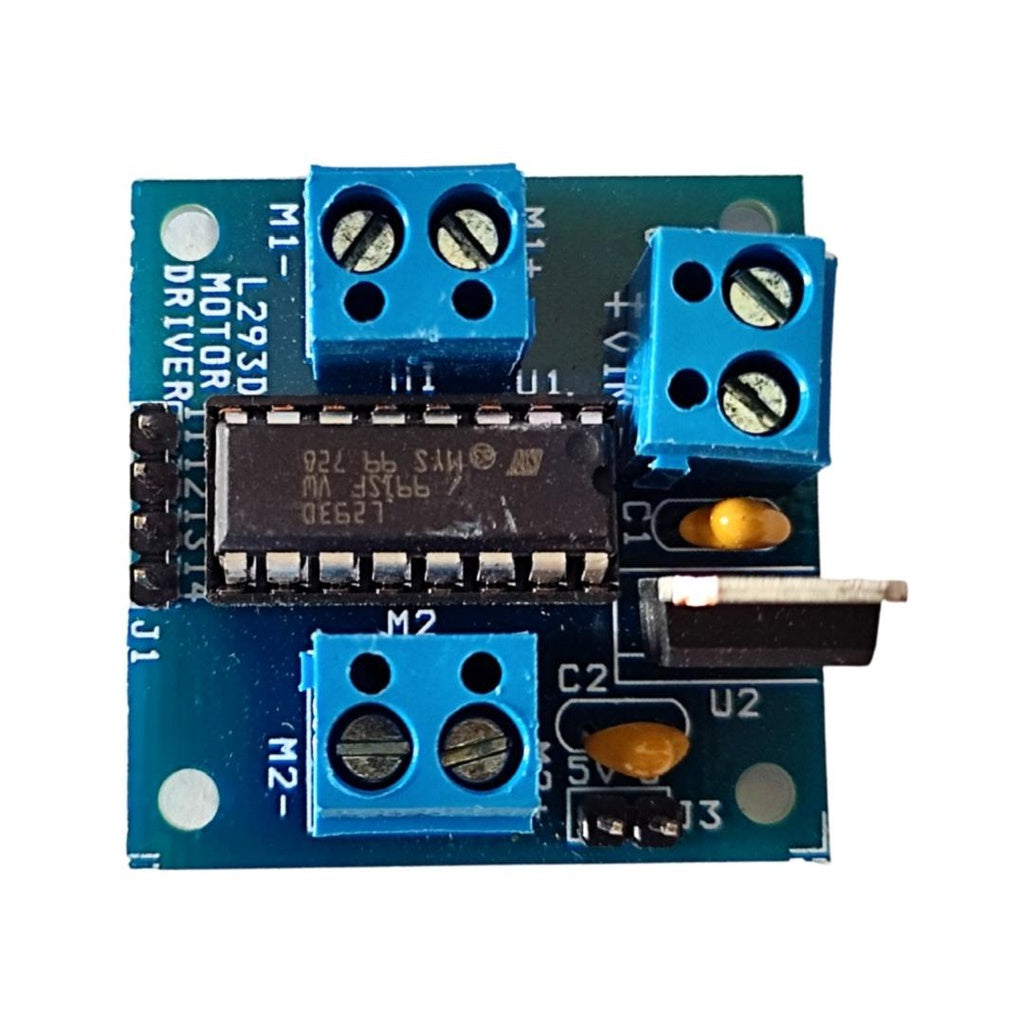

L293D Motor Driver Module Board

• L293D motor driver IC.
• Voltage Range: 4.5 V to 36 V
• Separate Input-Logic Supply
• Pin compatible with L293D
• Internal ESD Protection
• Male burg stick connectors for supply, ground and input connection
• Screw terminal connectors for easy motor connection
• On Board LM7805 Voltage Regulator

L293D Driver Board:

This Motor Driver Board is designed to Work with L293D IC. The L293D is a popular motor driver IC designed to provide bidirectional drive currents of up to 600-mA at voltages from 4.5 V to 36 V. With Terminal Blocks for connecting motors & power supply and Berg Sticks for control signals from microcontroller. This can control 2 DC Motors, their direction using control lines and their speed using PWM.

Features:

• Wide Supply-Voltage Range: 4.5 V to 36 V
• Separate Input-Logic Supply
• Pin compatible with L293D
• Internal ESD Protection
• Thermal Shutdown
• High-Noise-Immunity Inputs
• Output Current 0.6 A Per Channel
• Peak Output Current 2 A Per Channel
• Output Clamp Diodes for Inductive Transient Suppression.
• This motor driver is perfect for robotics and mechatronics projects for controlling motors from microcontrollers, switches, relays, etc.
• Perfect for driving DC and Stepper motors for micro mouse, line following robots, robot arms, etc.
