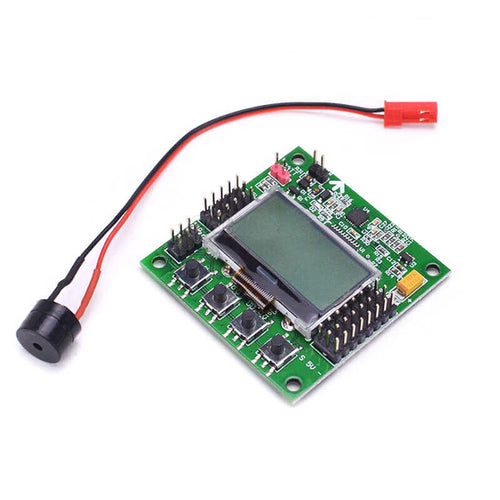

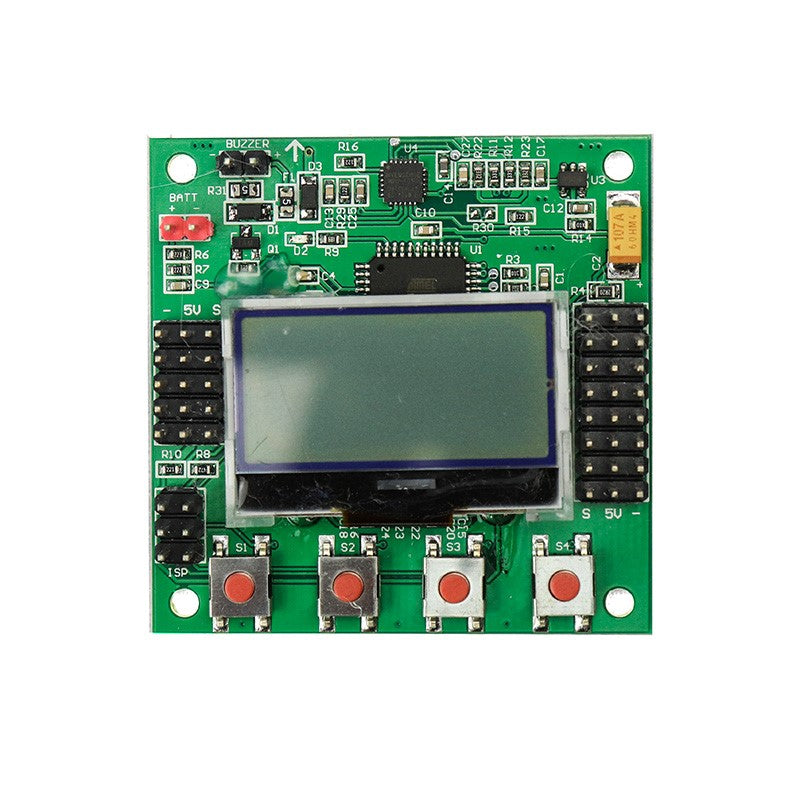

KK 2.1.5 Multi-rotor LCD Flight Control Board With 6050MPU And Atmel 644PA
KK 2.1.5 Multi-rotor LCD Flight Control Board With 6050MPU And Atmel 644PA
Couldn't load pickup availability
Description:-
Model KK2.1.5
- Input Voltage (V) 4.8V-6.0V
- Firmware Pre-installed firmware
- Sensors 6050 MCU
- Processor Atmel 644PA
- Micro-SD Card Slot No
- Length (mm) 52
- Width (mm) 52
- Height (mm) 12
- Weight (gm) 26

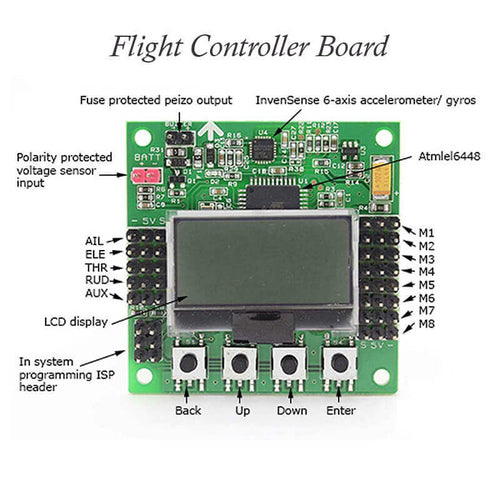

KK2 1.5 Flight Controller Board W/ 6050 MPU Board With Atmel 644PA is the next big evolution of the first generation KK flight control boards. The KK2.1.5 was engineered from the ground up to bring multi-rotor flight to everyone, not just the experts.
The LCD screen and built-in software make install and setup easier than ever. A host of multi-rotor craft types are pre-installed, simply select your craft type, check motor layout/propeller direction, calibrate your ESCs and radio and you’re ready to go! All of which is done with easy to follow on-screen prompts!
The KK gyro system has been updated to an incredibly sensitive 6050 MPU system making this the most stable KK board ever and allowing for the addition of an auto-level function. At the heart of the KK2.1.5 is an Atmel Mega644PA 8-bit AVR RISC-based microcontroller with 64k of memory.
