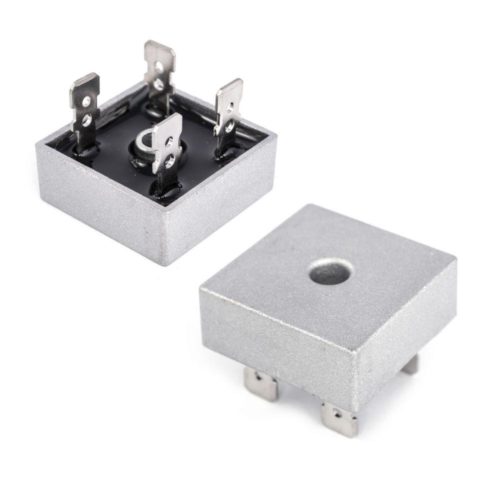

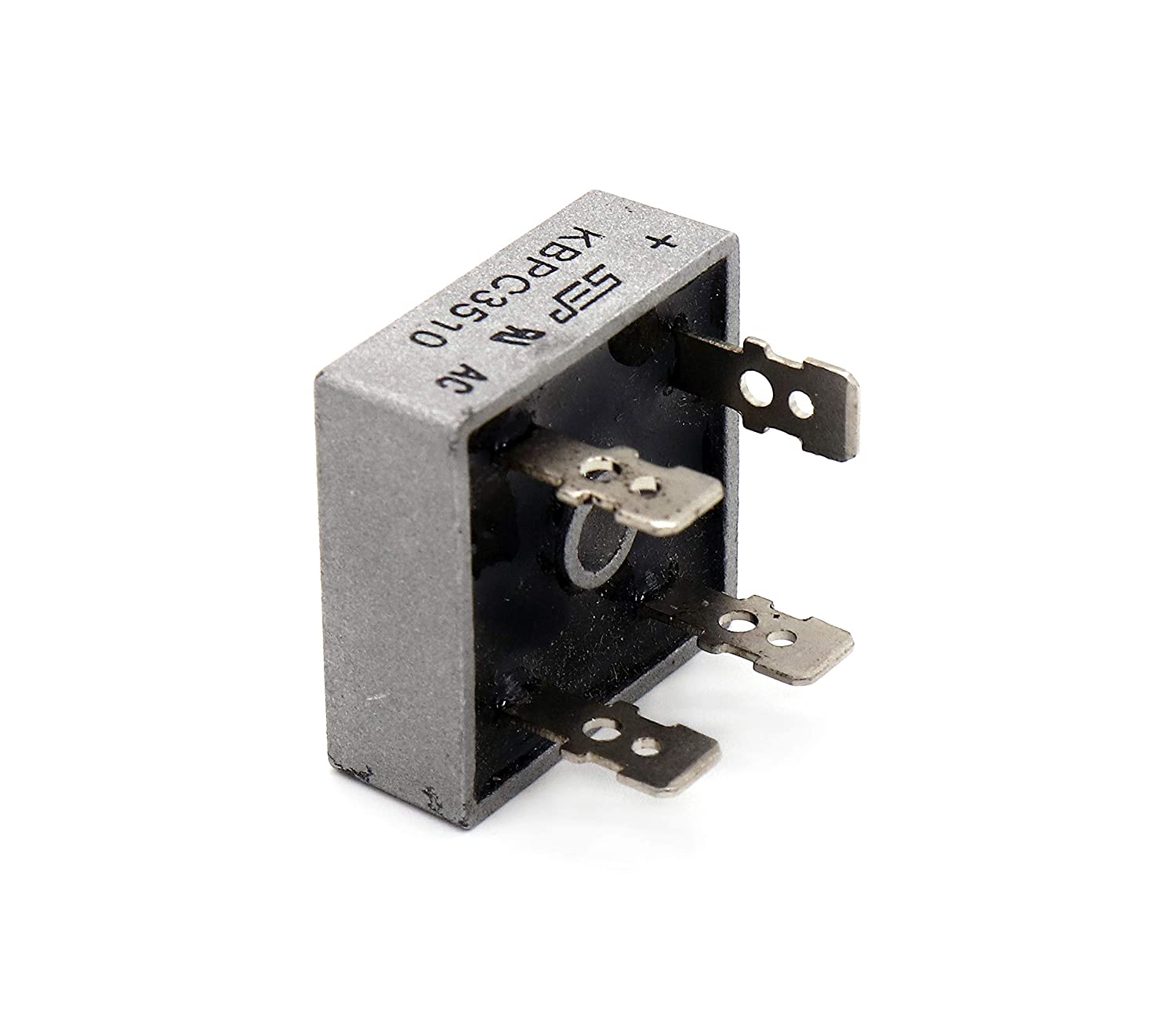

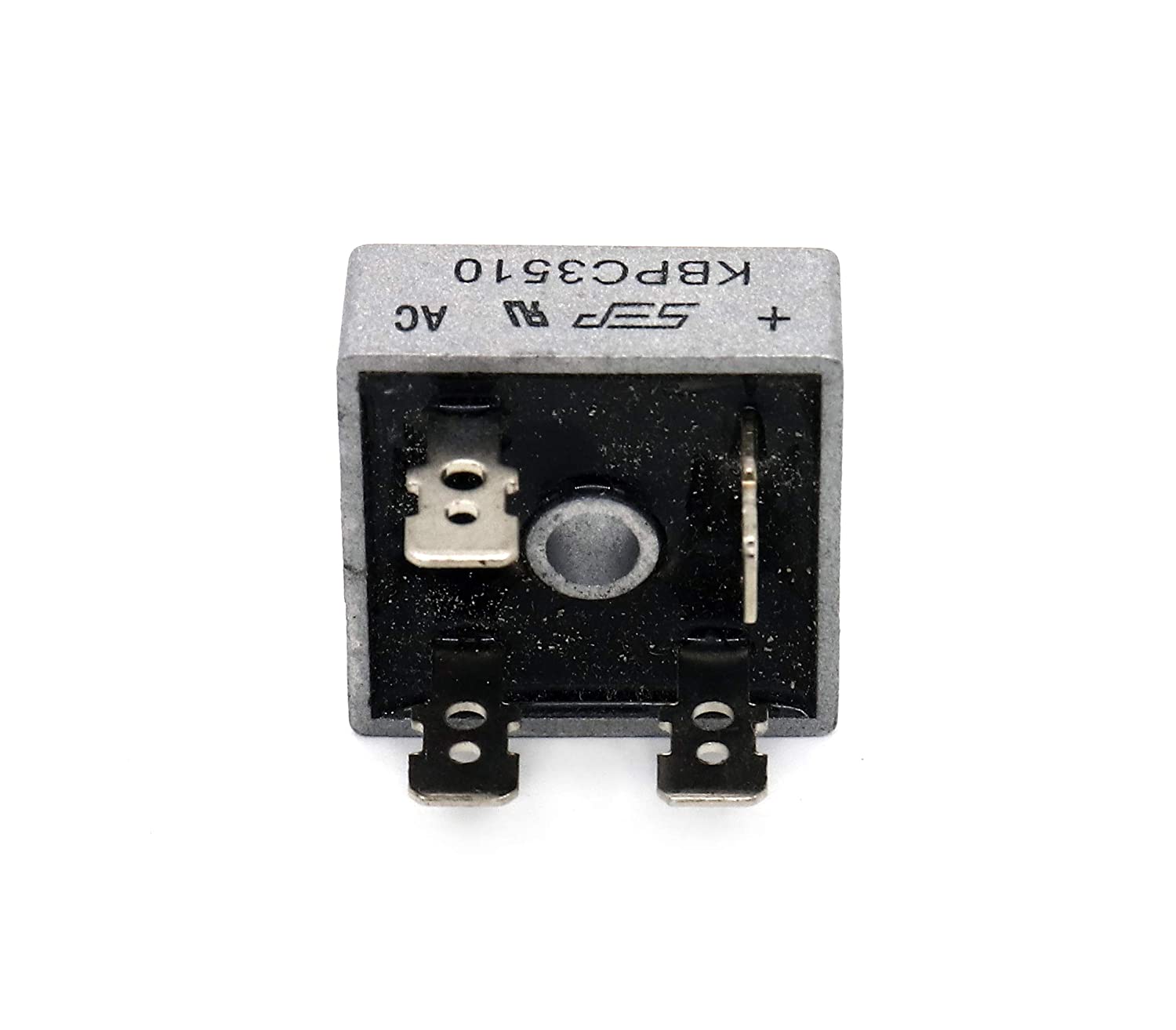

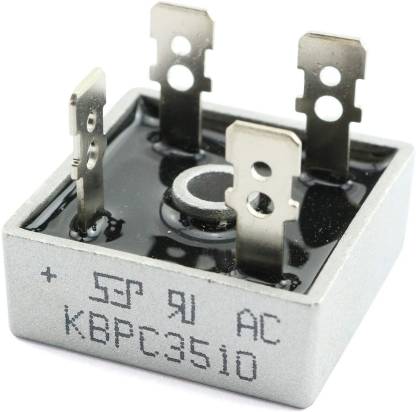

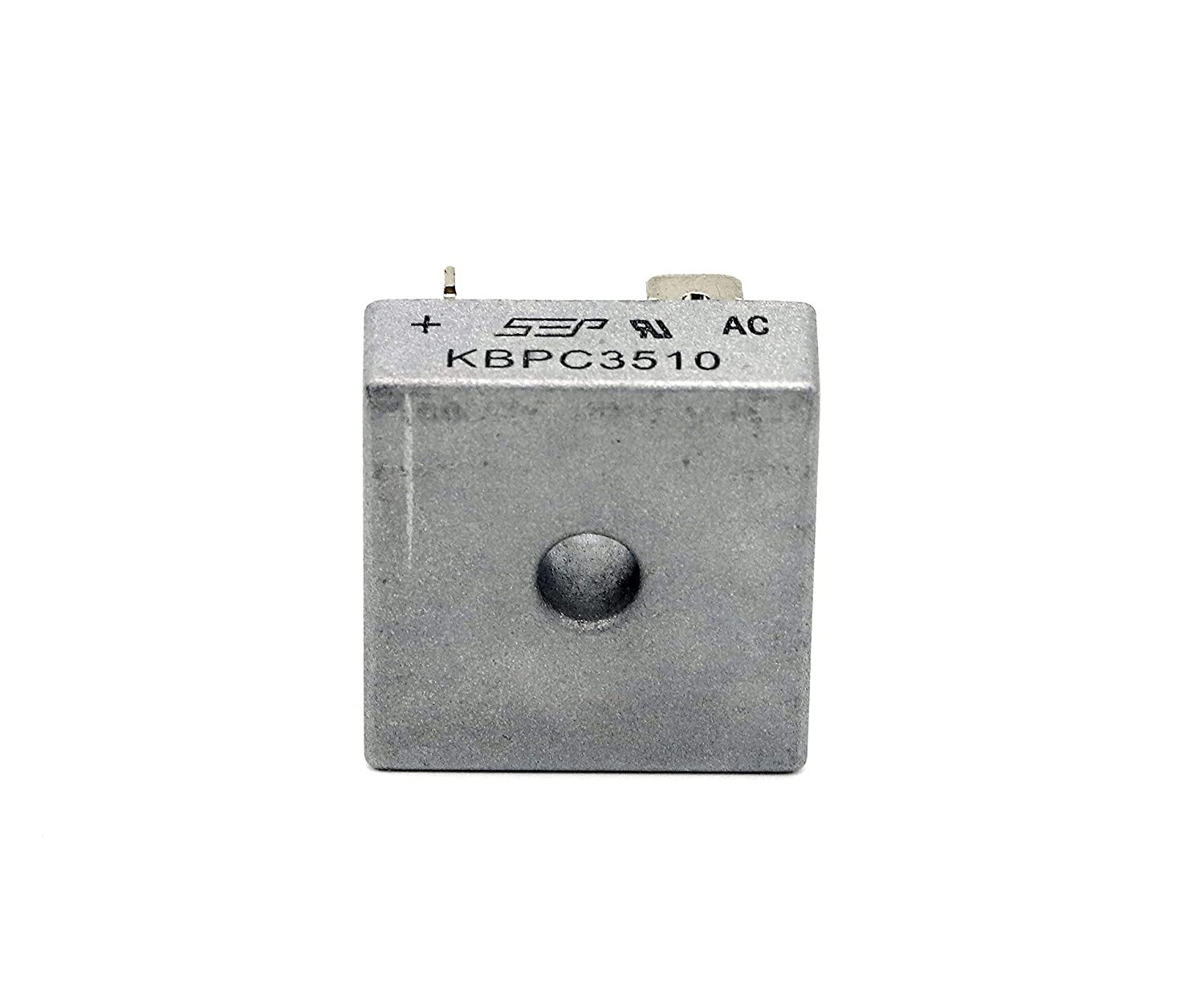

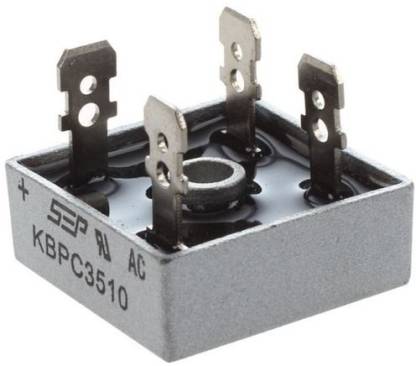

KBPC3510 35A 1000V Single Phase Bridge Rectifier

Rs. 69.00 Rs. 85.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441
  • Metal case for maximum heat dissipation
  • Low forward voltage drop
  • High-temperature soldering capacity
  • Universal 4 way terminal: snap-on, wrap-around, solder, and PCB mounting

Product Details

  • Product: KBPC3510
  • Number of pins: 4
  • Mounting: snap-on , wrap-around, solder, and PCB mounting
  • Case: Metal
  • Maximum peak recurrent reverse voltage: 1000V
  • Maximum RMS bridge input voltage: 700V
  • Maximum DC blocking voltage: 1000V
  • Maximum forward rectified output current: 35V
  • Peak forward surge current 8.3 ms half sine-wave superimposed on rated load: 400A
  • Maximum forward voltage drop: 1.1V (per element at 17.5A DC)
  • Maximum DC reverse current at rated DC blocking voltage per element: 10µA
  • Rating for fusing (I2T, t<8.3ms): 664 A2sec
  • Operating temperature: -55℃ to 150℃
