JX Servo PDI-6221MG 20KG Large Torque Metal Gear Digital Servo
JX Servo PDI-6221MG 20KG Large Torque Metal Gear Digital Servo
Regular price
Rs. 1,799.00
Regular price
Sale price
Rs. 1,799.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
PDI-6221MG -180° Servo Motor specifications:
- Dead Band: 4μs 1500μs / 330hz
- Maximum pulse width: 500-2500us (suitable for single-chip control board)
- Angle range: actual angle 180°
- Speed (6.0V): 0.16sec/60°
- Speed (4.8V): 0.18sec/60°
- Torque (6.0V): 20.32 kg.cm
- Torque (4.8V): 17.25kg.cm

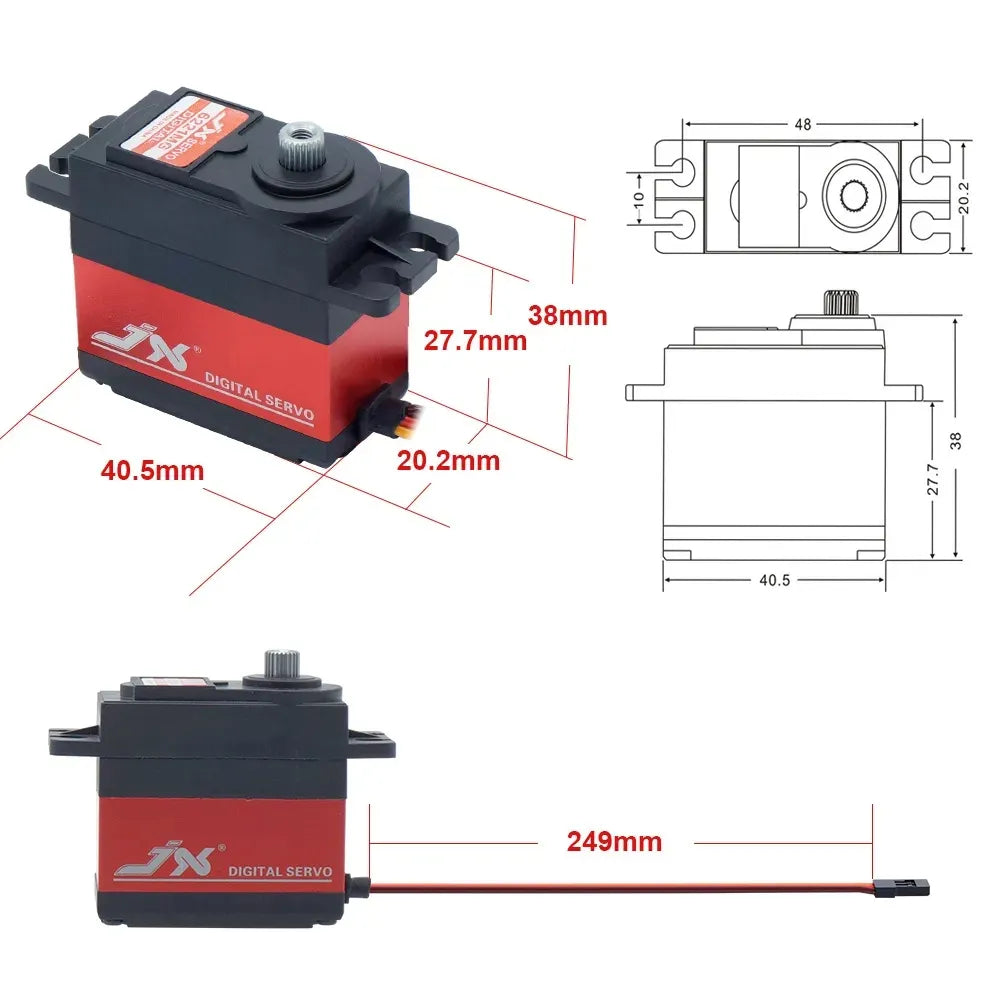

- Size: 40.5X20.2X40mm
- Weight: 62g
- Cable: JR 260 mm
- Bearing: 2BB
- Output teeth: 25T (Futaba universal)

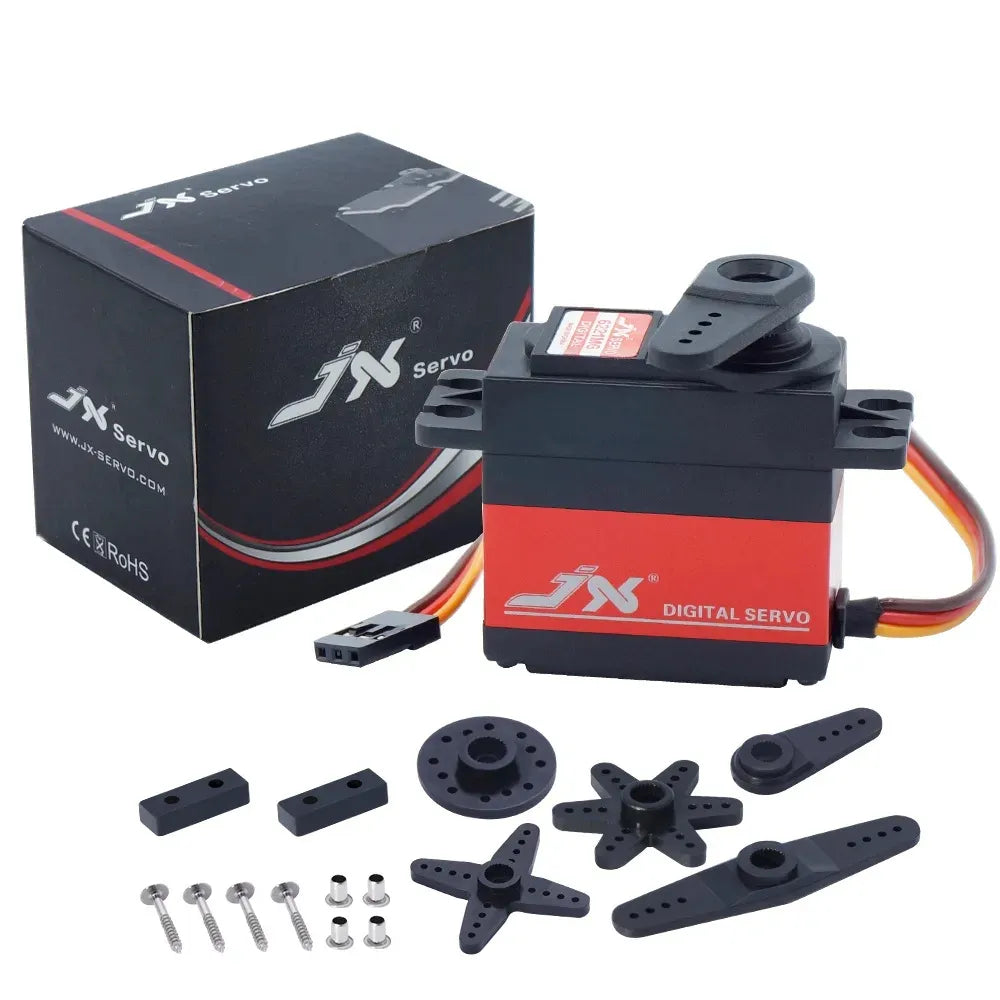

- Includes steering gear kit, one-word, half-section, cross, *-type, disc, related screws
Package Includes:
- 1 x PDI-6221MG -180° Servo Motor
