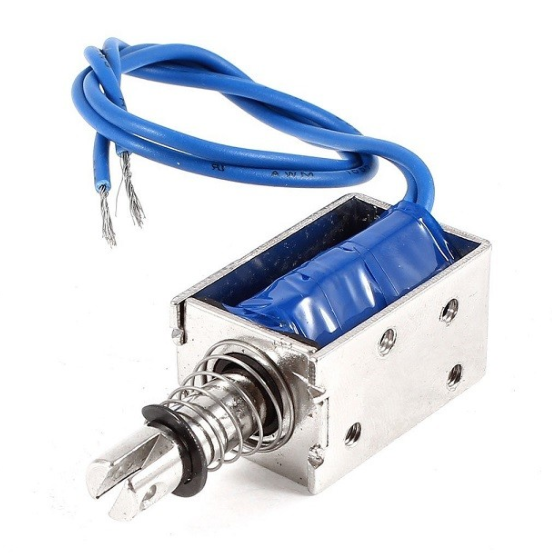

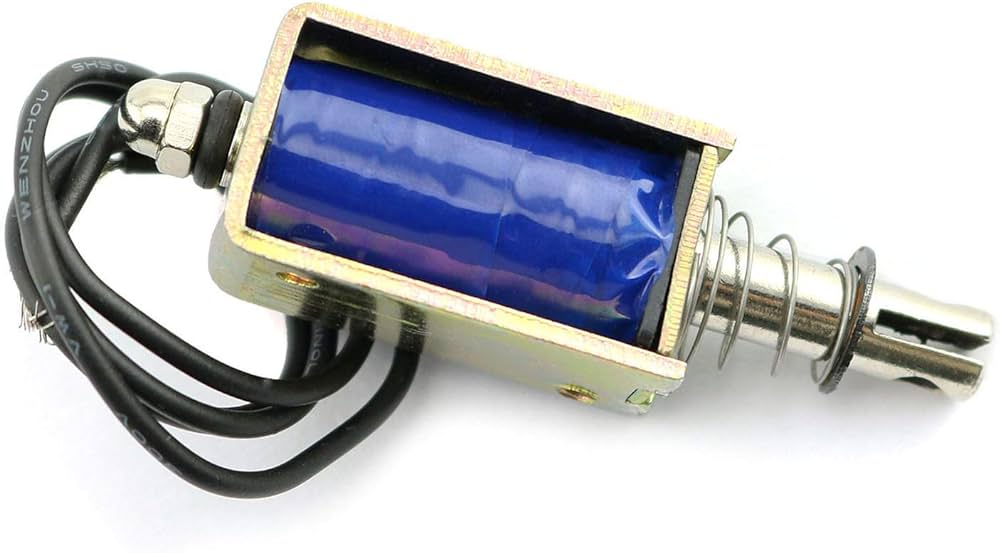

JF-0730B DC 12V 1A 10mm 5N Push-Pull Solenoid Electromagnet

The JF-0730B DC 12V Push-Pull Solenoid Electromagnet provides linear plunger movement for DIY mechanisms, cabinet-latch projects and automation prototypes. Its open-frame design combines a spring-return plunger with a mounting board for integration into your assembly.

Key Features

• Linear actuation: A push-pull mechanism with a listed 10 mm stroke and 5 N force.
• 12V DC operation: Listed operating current of 1 A.
• Spring-return plunger: Provides return movement when the solenoid is de-energised.
• Open-frame construction: Iron body, exposed coil design and mounting board for installation in custom mechanisms.
• Compact format: Suitable for integration into space-conscious hobby and automation projects.

Specifications

Project Applications

Use it to explore electrically actuated latches and small linear-motion mechanisms for file cabinets, storage compartments, vending-machine prototypes, game machines and appliance projects. Check the mechanical travel, load and mounting requirements of your design before installation.

Connection & Selection Notes

• Observe the listed wiring polarity: connect the red wire to positive (+) and the black wire to negative (−).
• The locking or unlocking action depends on the mechanism in which the solenoid is installed. Verify the required action before use.
• A duty-cycle rating is not provided in this listing. Confirm the permitted energisation time before designing for continuous operation.

Package Includes

1 × JF-0730B DC 12V 1A 10mm 5N Push-Pull Solenoid Electromagnet.
